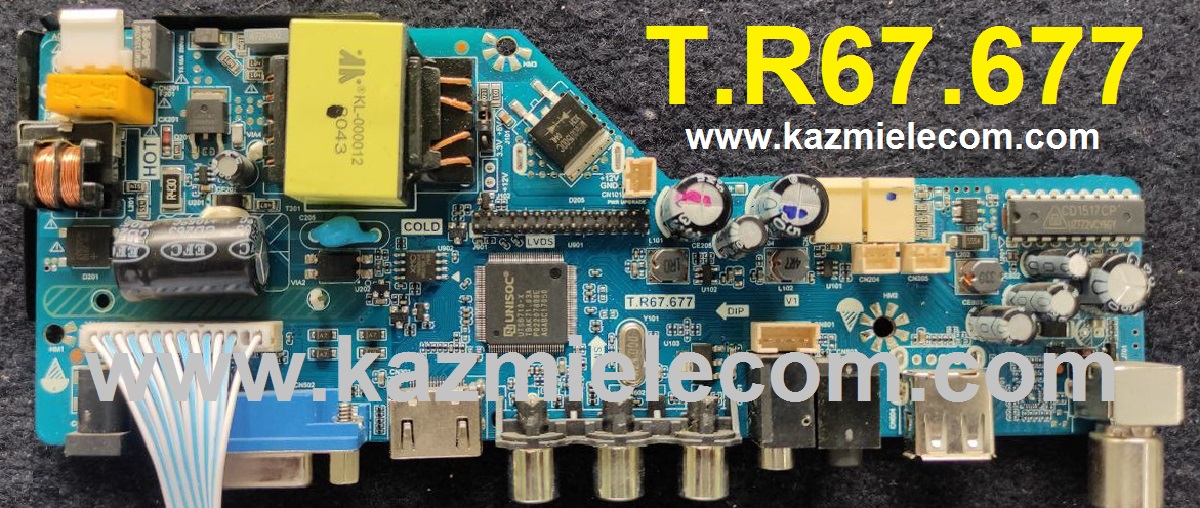

T.R67.677 Universal Board

T.R67.677 is a universal combo board inbuilt backlight driver and power supply module with multi-remote and resolution software.

Basic Info:

Model No. T.R67.677

Main Chipset: UTS6710-X

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Tuner: 5160

Sound: CD1517CP

Bin Name: YDG_6710.code.bin

Multi Resolution Codes

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +5V/+12V DC

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

1. Copy the Required Firmware/software into the FAT32 USB Disk
2. Plugin the U disk into the Mainboard USB port of the LCD/LED TV
3. Switch ON the power and Wait until even the IR indicator led stops flashing
4. Done. Unplug the U-disk (It will take a max half min to upgrade firmware)

Factory Service Mode:

Input/Source 336

Multi-Resolution Code:

• INPUT/SOURCE 03661 FOR 1920X1080
• INPUT/SOURCE 03662 FOR 1366X768

T.R67.677 Firmware Free Download Here :
