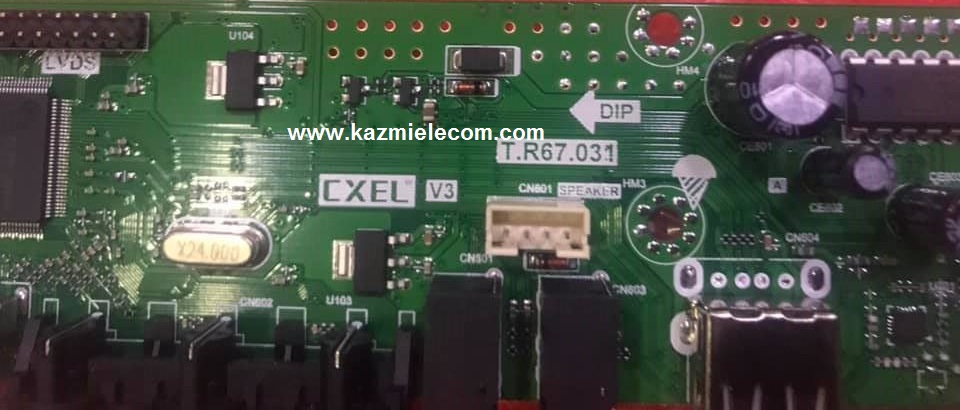

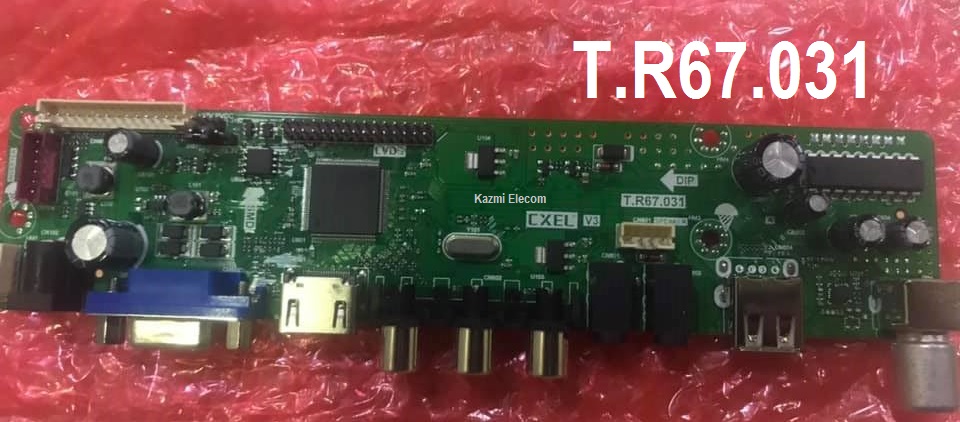

T.R67.031 Universal LCD/LED Controller Board
T.R67.031 All Resolution Software Files are shared in this post.
Basic Info:
Model No. T.R67.031
Main Chipset: RDA6710
Trademark: CXEL
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Board Size: 168.00 X 42.0 (mm)
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led stops flashing
- Done. Unplug the U-disk (It will take a max of half min to upgrade firmware)
Factory Service Mode:
Menu+1147
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issue during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
T.R67.031 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.R67.031_800x600_Firmware | Download |
| 2 | T.R67.031_1024x600_Firmware | Download |
| 3 | T.R67.031_1024x768_Firmware | Download |
| 4 | T.R67.031_1280x720_Firmware | Download |
| 5 | T.R67.031_1280x768_Firmware | Download |
| 6 | T.R67.031_1280x800_Firmware | Download |
| 7 | T.R67.031_1280x960_Firmware | Download |
| 8 | T.R67.031_1280x1024_Firmware | Download |
| 9 | T.R67.031_1366x768_Firmware | Download |
| 10 | T.R67.031_1400x1050_Firmware | Download |
| 11 | T.R67.031_1440x900_Firmware | Download |
| 12 | T.R67.031_1600x900_Firmware | Download |
| 13 | T.R67.031_1600x1200_Firmware | Download |
| 14 | T.R67.031_1680x1050_Firmware | Download |
| 15 | T.R67.031_1920x1080_Firmware | Download |
| 16 | T.R67.031_1920x1200_Firmware | Download |
Asslam-o-alaikum! sir .bin file ka name change kar ke kya rakhoon “tr67.03 v2” board ke liye?
board waisy is file ko nahi utha raha. Is file ka naam kya karna hoga jo board isy pick kar sake?
w.slaam not confirm
T. R67.675 factory code
https://www.kazmielecom.tech/2019/04/08/all-lcd-led-service-menu-code.html
menu and then press 1147
Sir i need t.r67.03c v4 software please update it
SIR JE T.R.67.03 V5 DUMP File post kar daye shukriia
https://www.kazmielecom.tech/2022/01/28/t-r67-03-v3-software.html
Mere paas LTN156AT02 display hai. Jiske liye mai CXEL ka T.R67.03H V1 board use kar raha hu. Saara power vagaire dene ke bawajood display pe black screen rehti hai. Mujhe doubt hai ki LVDS cable ka connection sahi nahi hai. Aapki kya raay hai?
input voltage bhi board ka sahi se 3.3V set kiya hu.
yes LVDS connection match karwa len ya ready made 32 inch HD lvds cable use karen
T.R67.03 V5 ka software nahi he is list me. woh to add kr dain Please
V3 wala try karen. i hope work kare ga
https://www.kazmielecom.tech/2022/01/28/t-r67-03-v3-software.html
tr67.03 v5 software for LG lm201we3 panel please send me the link
Asslam o Alaikum sir,
Mere pas T.R67.031 Board hai
Mere panel ki resolution 1920 ×1200 hai
iska software kindly chahiye muje.
Thanks
w.salam dear me share kar deta hon
Tr67 03 lg remot ka softwire
NA
Micromax 32GRAND led software plz upload
complete model number and board number plz??
Sir T.R67.03 V2 me service menu open nhi hora hai sb daal kr dekh liya ab kya kru sir
Input 208
Sir T.R67.03 V2 hy iska softwair ap ny nh diya hy match m konsa lagega
