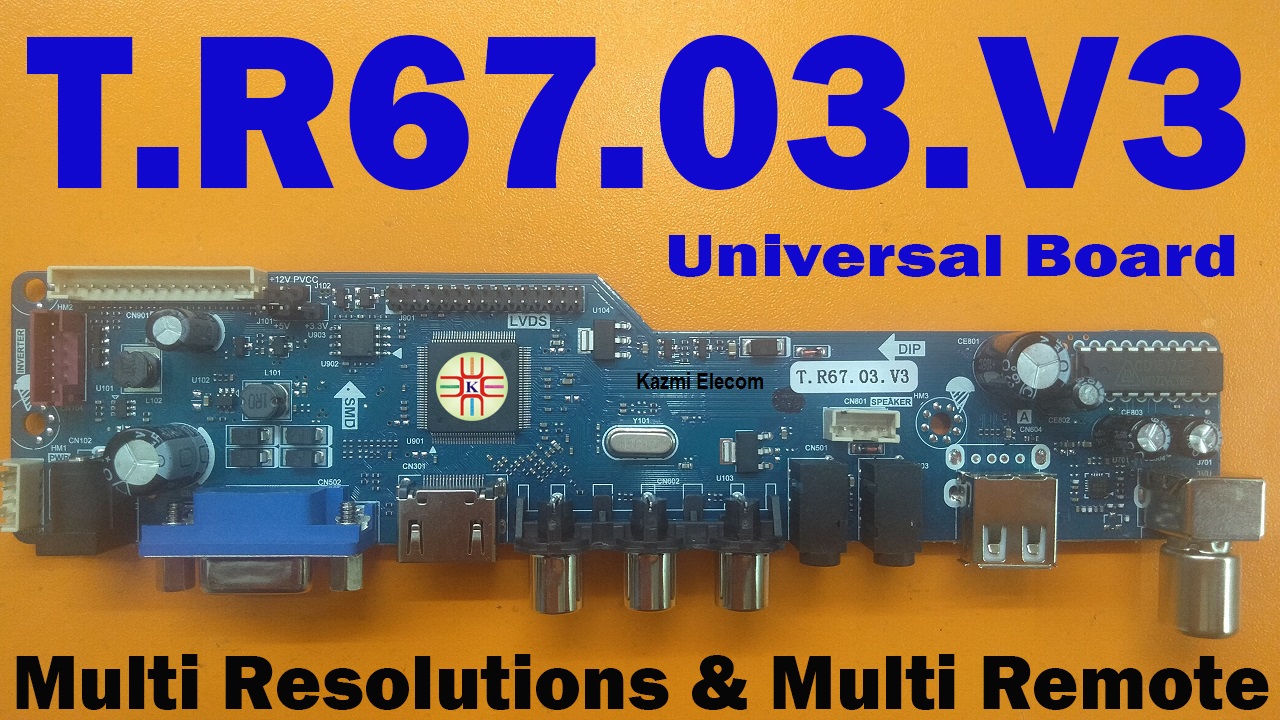

T.R67.03 Universal Board
T.R67.03.V3 is a universal jumper board with multi remote and resolution software.
Basic Info:
Model No. T.R67.03.V3
Main Chipset: UTS6710-X
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Tuner: 5160
Sound: CD1517CP
Bin Name: YDG_6710.code.bin
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led stops flashing
- Done. Unplug the U-disk (It will take a max half min to upgrade firmware)
Factory Service Mode:
Menu+1147 & Source/Input+208
Multi-Resolution Code:
- INPUT/SOURCE 03661 FOR 1920X1080
- INPUT/SOURCE 03662 FOR 1366X768
- INPUT/SOURCE 03663 FOR 1280X1024
- INPUT/SOURCE 03664 FOR 1440X900
- INPUT/SOURCE 03665 FOR 1600X900
- INPUT/SOURCE 03666 FOR 1680X1050
- INPUT/SOURCE 03667 FOR 1024X768
T.R67.03.V3 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.R67.03.V3_800x600_USB | Download |
| 2 | T.R67.03.V3_1024X600_USB | Download |
| 3 | T.R67.03.V3_1024X768_USB | Download |
| 4 | T.R67.03.V3_1280X720_USB | Download |
| 5 | T.R67.03.V3_1280X768_USB | Download |
| 6 | T.R67.03.V3_1280X800_USB | Download |
| 7 | T.R67.03.V3_1280X960_USB | Download |
| 8 | T.R67.03.V3_1280X1024_USB | Download |
| 9 | T.R67.03.V3_1366X768_USB | Download |
| 10 | T.R67.03.V3_1400X1050_USB | Download |
| 11 | T.R67.03.V3_1440X900_USB | Download |
| 12 | T.R67.03.V3_1600X900_USB | Download |
| 13 | T.R67.03.V3_1600X1200_USB | Download |
| 14 | T.R67.03.V3_1680X1050_USB | Download |
| 15 | T.R67.03.V3_1920X1080_USB | Download |
| 16 | T.R67.03.V3_1920X1200_USB | Download |
| 17 | T.R67.03.V3_MULTI_DUMP | Download |
Very nice and very useful video
Sir model number T320XVN02.G
azhar sir dumfile kis trha download kren is k lye knci dvice chahye ho ge ya usb se ho jaye plz explain me
programmer se hogi
Sir chaina bord jika modal tr6703 hai new bord lagane pe screen bleu white red green ho rahi hai
RESOLUTION MISMATCH
sir ye v5 pe chalenge sir tr6703 v5 ke software send kare plz
Sir I am having lg LP140wh4 laptop display and TR67.03 V3 BOARD iam connected but black screen only comming what problem please help
first clear backlight then check resolution of screen and load correct firmware
sir main ne sfotware kiya t.r 67.03 wala tu pink ho gayi secreen
service menu se setting karen
Sar Mujhe software chahie Hai apna contact number do
Tr 67.03 board
Which remote can I use?
china remote
Assalam o alikum sar meray pass 21 inch old sonay wala led tv hay per us ka saftware nahi mil raha phelay to aap ki wap per hota tha tr6703 ka resolution 1800×1080 hay
w.salam dear ap panel ki resolution google se dobara check karen
sir tr67.03v5 1366×768 10data me software chahye
v3 wala ho jye ga ap try karen
T. R67. 03 reservation code wala software chahie
isi post me share kia hua hy
Salam sir yah bord t.r67.03 tcl 4k men aupport kare ga
No
Sir v5 ka software chahiye. V3 k softwares v5 py kam nai kr rhy. Please solution bta dein
iska nai hy mere pas. jahan se apne board lia hy unse pata karen. apko mile to share karen kazmielecom@gmail.com
HOW TO CHANGE LOGO I NEED LOGO FILE NAME TO UPDATE IT THANKS
Sir g
Tr 83031 wala bord
Nahin milta
Kon sa bord lgaon
22 inch ki lcd hai
koi bhe laga len no issue
Sir v5 wale sofware nhi mil rhe1920*1200
V3 wale problam ker rhe he hall rod jaha se bord lia us k pass b nhi ye kaha se mile ge
Sir tr67.03 Ka screen filp Kam ni KRTA
aisi koi complaint hy to nai. kam karna chahye
Asalm o alykum kazmi Bhai kese hain. V5 k board main resolution code Kam nahi Kar Raha kia ye resolution software na honey ki waja sy hy.
dump file try karen multi-resolution wali
Sir 67.03 v5 no mil thanks is half ball palz
sir mere pas ltm200 kt05 panel he samsung ka is me t.r67.03.v5 ka board lagaya to service menu me image processor disable karen to display ata he warna lining ati he or her baar on kerne per image processor ko enable ker k phir disable kerna parta he display k liye. plz help me
dear is type ka experience nai hua mujhe. ap koi dosra board laga k check karen
Assalamualaikum sir
t.r67-03 pa dump muliti software nahi run hoo raha hai ap ke site sa download kai tha
kindly reply me plzz
programmer se hoga
Bhai mere pass TR.67.03 board tha mene USB SE v3 walA software kia display nahi show ho Raha 14″” ka display he ab kia kro iska
panel resolution check kar k proper software load karen
SIR JI IS ME APNA LOGO KAISE SET KARE YE KAISE HOGA
Sir mere paas T. R67.03 (without V3) board hai aur mujhe 1280*800 resolution panel ke sath use karna hai.. V3 wala software install ho jayega kya? Pls suggest
install kar k check kar len. sound ya tuner different ho sakta hy
sar mera fandar premaim 9900 hd he us my masla ye he ky jab tar lagty he to caht batata he is ka hal ho jahy ga kya lazmi sms karna sar 03027680268 wahtsapp no par apna adrees send kar dyna tehkss
dear kisi local technician se check karwa len
Sir resolution kise maloom kari ngi
panel number google me search karen
