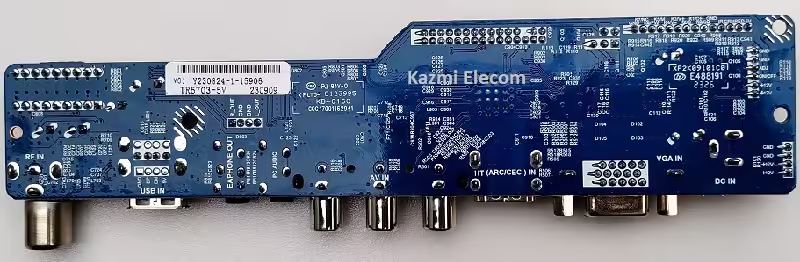

T.R67.03 V10 Universal Board
T.R67.03 V10 is a universal small jumper board with multi-resolution remote control switching software.
Basic Info:
Model No. T.R67.03-V10
Main Chipset: UTS6710-X
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
SPI Flash: 25Q32 (4 MB)
Tuner: 5160
Sound: CD1517CP
Bin Name: YDG.6710.bin, YDG_6710.code.bin
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software into FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of the LCD/LED TV
- Switch ON the power and Wait until even the IR indicator led stops flashing
- Done. Unplug the U-disk (It will take a max half min to upgrade firmware)
Factory Service Mode:
Menu+1147 & Source/Input+208
Multi-Resolution Code:
- INPUT/SOURCE 03661 FOR 1920X1080
- INPUT/SOURCE 03662 FOR 1366X768
- INPUT/SOURCE 03663 FOR 1280X1024
- INPUT/SOURCE 03664 FOR 1440X900
- INPUT/SOURCE 03665 FOR 1600X900
- INPUT/SOURCE 03666 FOR 1680X1050
- INPUT/SOURCE 03667 FOR 1024X768
T.R67.03 V10 Firmware All resolutions Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.R67.03-V7_1024x768_USB | Download |
| 2 | T.R67.03-V7_1280x800_USB | Download |
| 3 | T.R67.03-V7_1280x1024_USB | Download |
| 4 | T.R67.03-V7_1366x768_USB | Download |
| 5 | T.R67.03-V7_1440x900_USB | Download |
| 6 | T.R67.03-V7_1600x900_USB | Download |
| 7 | T.R67.03-V7_1600x1200_USB | Download |
| 8 | T.R67.03-V7_1680x1050_USB | Download |
| 9 | T.R67.03-V7_1920x1080_USB | Download |
| 10 | T.R67.03-V7_1920x1200_USB | Download |
t.r67.03 v10 1366*768 software download ni ho raha h kia jay
link working hy
AOA bhai
1200×800 resolution screen (LP154WX4-TLC8) working OK in laptop but white display on T.R67.03 V10 card. All LVDS connections are OK. What could be the problem?
1280×800 check lvds connection
Checked all lvds connections but still blank screen. All voltages are OK. What about EEDID, EEDID data, EEDID clk lines. These lines are to be kept floating??
watch some youtube tutorials
2048×1152 software chahye Tr6703 v10 card me
isme yeh resolution nai hy
Mey ye card new lyky. Aya hon lakin red light he rehti ha power on krny py or software bhi 15 try kr chuka hon light flash nahi krti. Kia problem ho sakti ha
fault ho sakta hy
