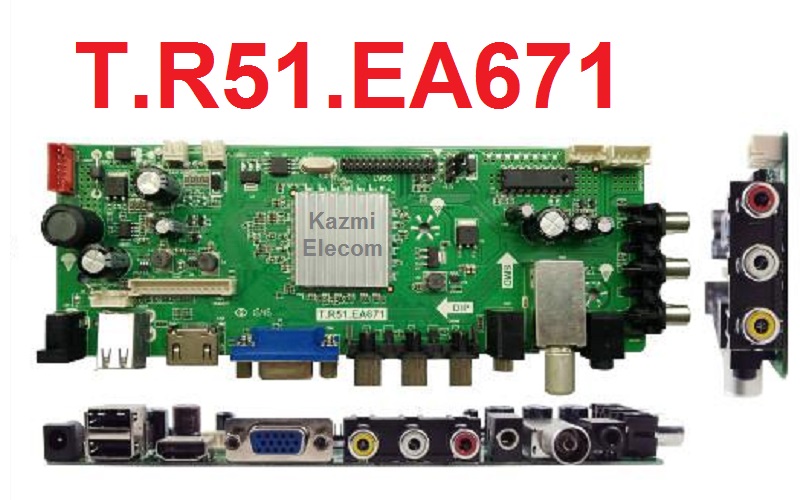

T.R51.EA671 LED TV Board
T.R51.EA671 is a universal combo board inbuilt backlight driver DC power supply input.
Basic Info:
Model No. T.R51.EA671
Main Chipset:
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Tuner:
Sound: CD1517CP
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +5V/+12V DC
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC 220
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
Note: The following given firmware dump backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about the download, process watch the video Click Here
T.R51.EA671 Firmware Free Download Here :
