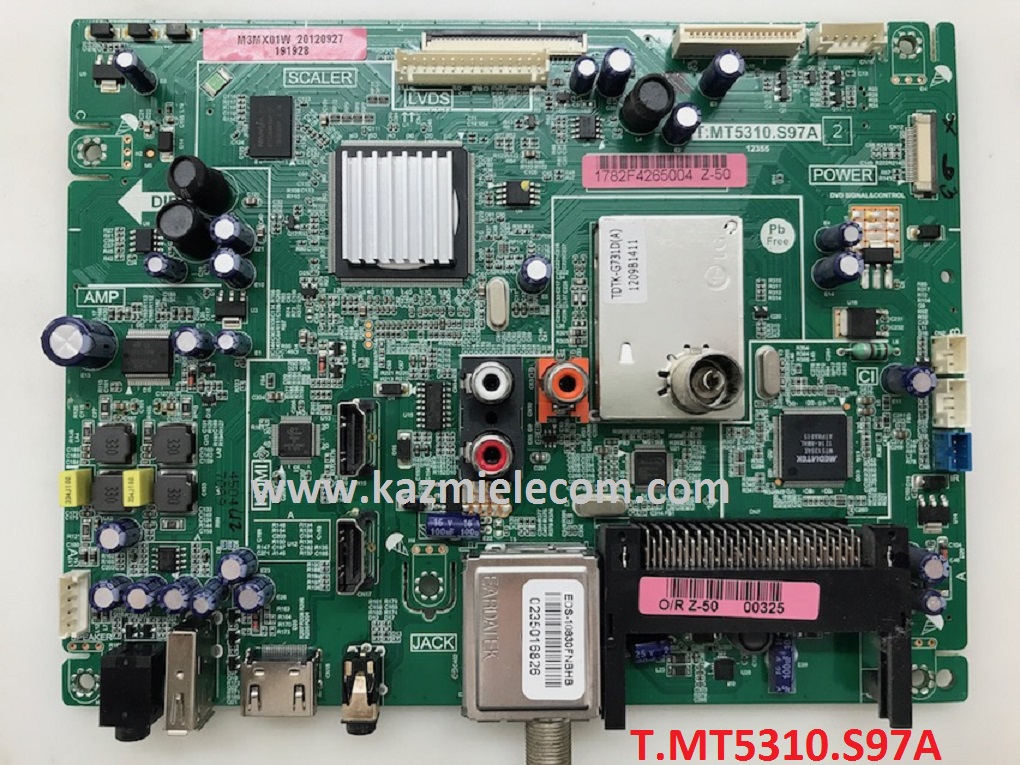

T.MT5310.S97A LED TV Board
TP.MT5310.S97A is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 27-39 inches of LED panels, with a maximum resolution of up to 1920*1080. TP_MT5310_S97A is a non-combo board i.e power card, backlight driver module is required separately while an ATV board is built-in into it. TP-MT5310-S97A has multiple input interface ports like USB, HDMI, AV, Scart port, and VGA port for computer connectivity.
TP MT5310 S97A for many brands of LED TVs like Fuego, Saba, Crown, Bush, etc. Its USB interface can be used for loading software as well as for playing multimedia files. TP.MT5310.S97A support for analog TV signals. TP.MT5310.S97A firmware files are given below for the technician’s support.
General Specifications:
Model: T.MT5310.S97A
Main Chipset: MT5310
Resolution Supported: 1920×1080
Flash Memory: 25Q64
Television System: PAL (BG, DK), SECAM (BG, DK, LL)
Tuner: DVB-T, DVB-C
Audio Output Power: 2X6 W (8Ω)
Backlight: 300mA
Backlight Power: 45 W
Power Input: 100 to 240V
Power Consumption: 45W
Service Code: Menu 1147
Firmware Name: upgrade_5310_s2.pkg
Firmware Type: USB Bootable Firmware and Flash Backup Dump
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
T.MT5310.S97A Firmware files for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MT5310.S97A_1366x768_JVC_DUMP | Download |
| 2 | T.MT5310.S97A_1366x768_ORION_DUMP | Download |
| 3 | T.MT5310.S97A_1366x768_ORION_USB | Download |
| 4 | T.MT5310.S97A_1920x1080_JVC_DUMP | Download |
| 5 | T.MT5310.S97A_1920x1080_ORION_DUMP | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
