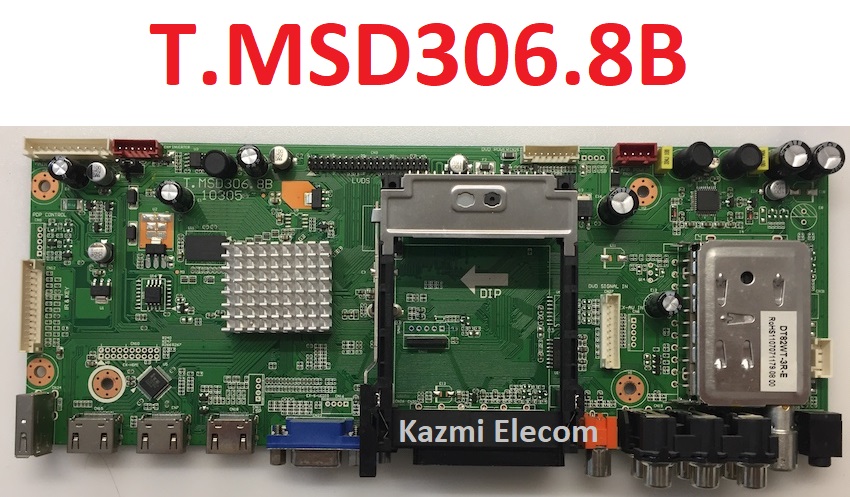

T.MSD306.8B LED TV Board
T.MSD306.8B is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. It is designed to support Full HD LCD/LED Panel Screens. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but an ATV Card is built into this motherboard. This board has all the features and connectivity ports as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. T.MSD306.8B firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.MSD306.8B
Main Chip: MSD306
Product: LCD/LED TV
LED Backlight: mA
Flash IC: 4/8Mb
Sound Chip: R2A15122
Tuner IC: DT82WT-3R-E
Screen supported: 26-40 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Firmware Name: NA
Firmware Type: Backup Dump
Service Code:
Source/Input
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
T.MSD306.8B firmware for free download:
- T-MSD306-8B 10305 BLAUPUNKT-26-DUMP
- T-MSD306-8B 10305 BLAUPUNKT-32-DUMP
- T-MSD306-8B 10305 BLAUPUNKT-40-DUMP
- T-MSD306-8B 10305 SONIC-32-DUMP
- T-MSD306-8B 10305 TECHNIKA-32-DUMP
- T-MSD306-8B 10305 TECHNIKA-40-DUMP
- T-MSD306-8B 11164 STARLIGHT-32-DUMP
