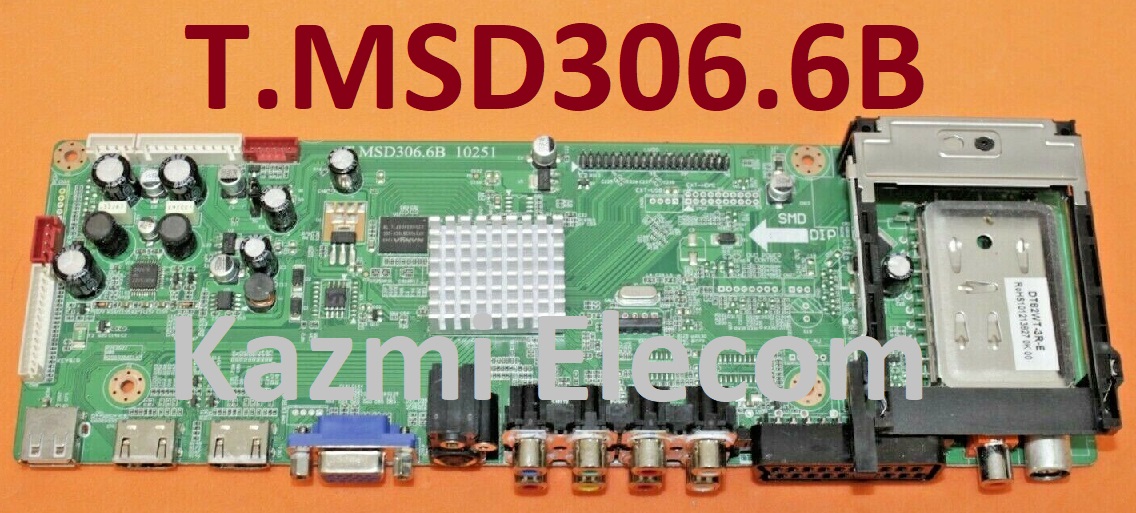

T.MSD306.6B LED TV Board
T.MSD306.6B is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets.This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required seperatley but ATV Card is builtin into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.T.MSD306.6B firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.MSD306.6B
Main Chip:
Product: LED TV
LED Backlight: mA
Flash IC: Mb
Sound Chip:
Tuner IC:
Screen supported: inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Service Code:
Source/Input
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
T.MSD306.6B firmware for free download:
