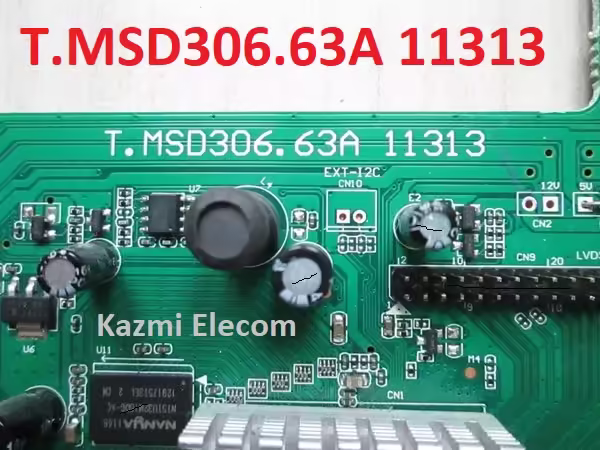

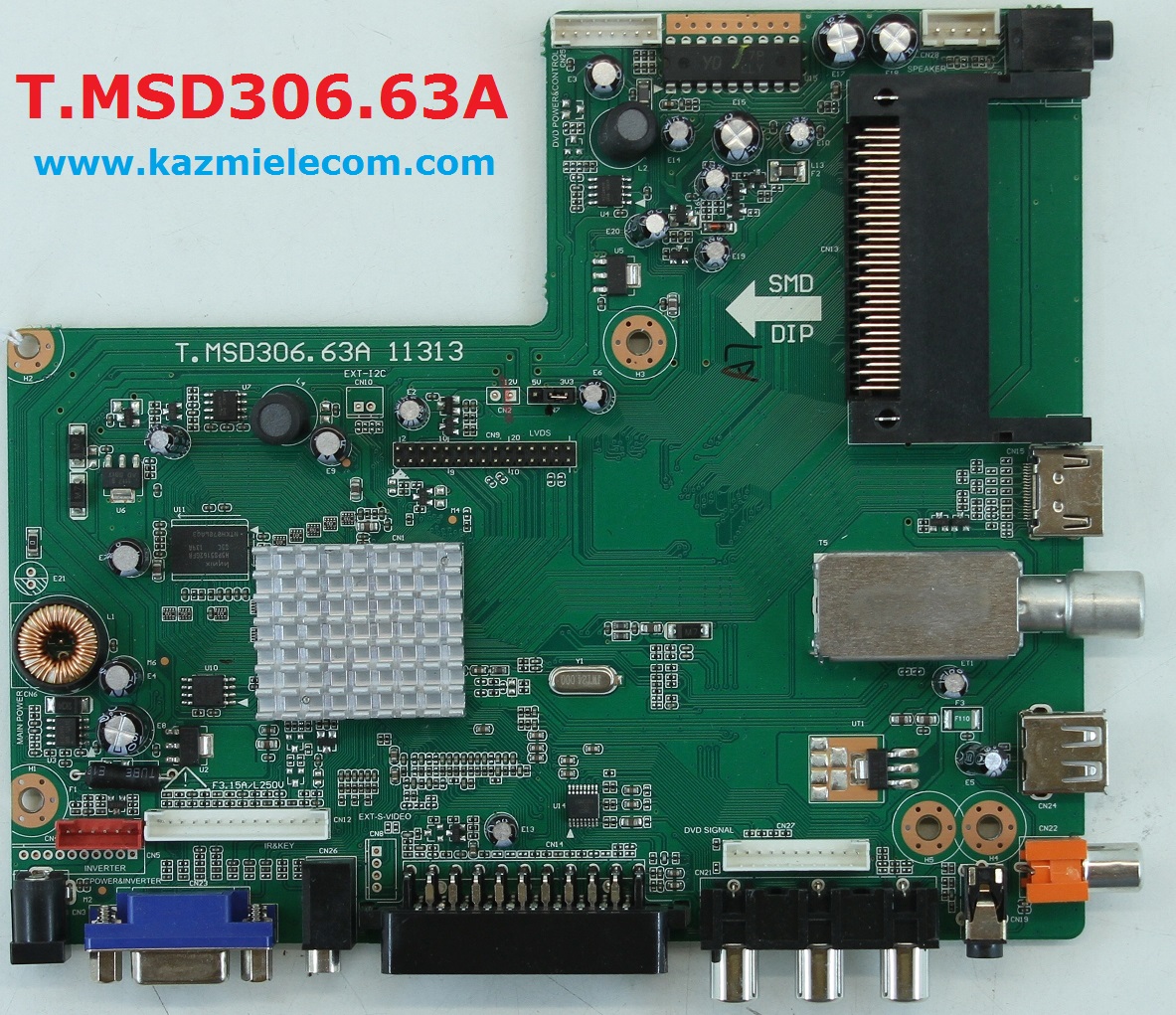

T.MSD306.63A LED TV Board

T.MSD306.63A is an analog LCD/LED TV driver controller board that can fit many universal LED TVs. This is a Non-Combo Board. To Complete the system, the main power module is required separately as an LED Backlight Inverter Circuit and an RF tuner is built into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.

Download Here

It has a YD1517P Sound Output IC mounted on its PCB mainboard. It has also a DVD connectivity interface connections. T.MSD306.63A firmware files are given below for the technician’s support. DC 12Volt main supply is required to power up the mainboard. AC to DC converter can be used to power this board or a direct 12 v power adapter supply can be connected as an external source.

General Specifications:

Brand/Mark: Universal Board

Model: T.MSD306.63A 11313

Main Chip: MSD306

Product: LED TV

LED Backlight: mA

Flash IC: 4 Mb

Sound Chip: 1517

Tuner IC: NA

Screen supported: 32-46 inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 12V DC

Service Code:

Source/Input

Caution:

All the pictures and specification details related to T.MSD306.63A in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

Pros:

There are many advantages to installing the given T.MSD306.63A USB software or backup dump file. A few benefits are described below:

The dead board can be recovered and operational by loading the given software backup file
Remote and Logo may change at your own choice to satisfy the customer
Money saving instead of changing the mainboard
Time-saving instead of arranging a new board
Customer satisfaction to do an urgent job
Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given T.MSD306.63A USB software or backup dump file. But it depends on the technician or user as per his understandings. A few drawbacks are described below:

The working board may go to the standby position
Remote Control may not work and the Logo may change by writing the given software
Panel screen parameters may be changed

T.MSD306.63A Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.

T.MSD306.63A Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

T.MSD306.63A firmware for free download:
