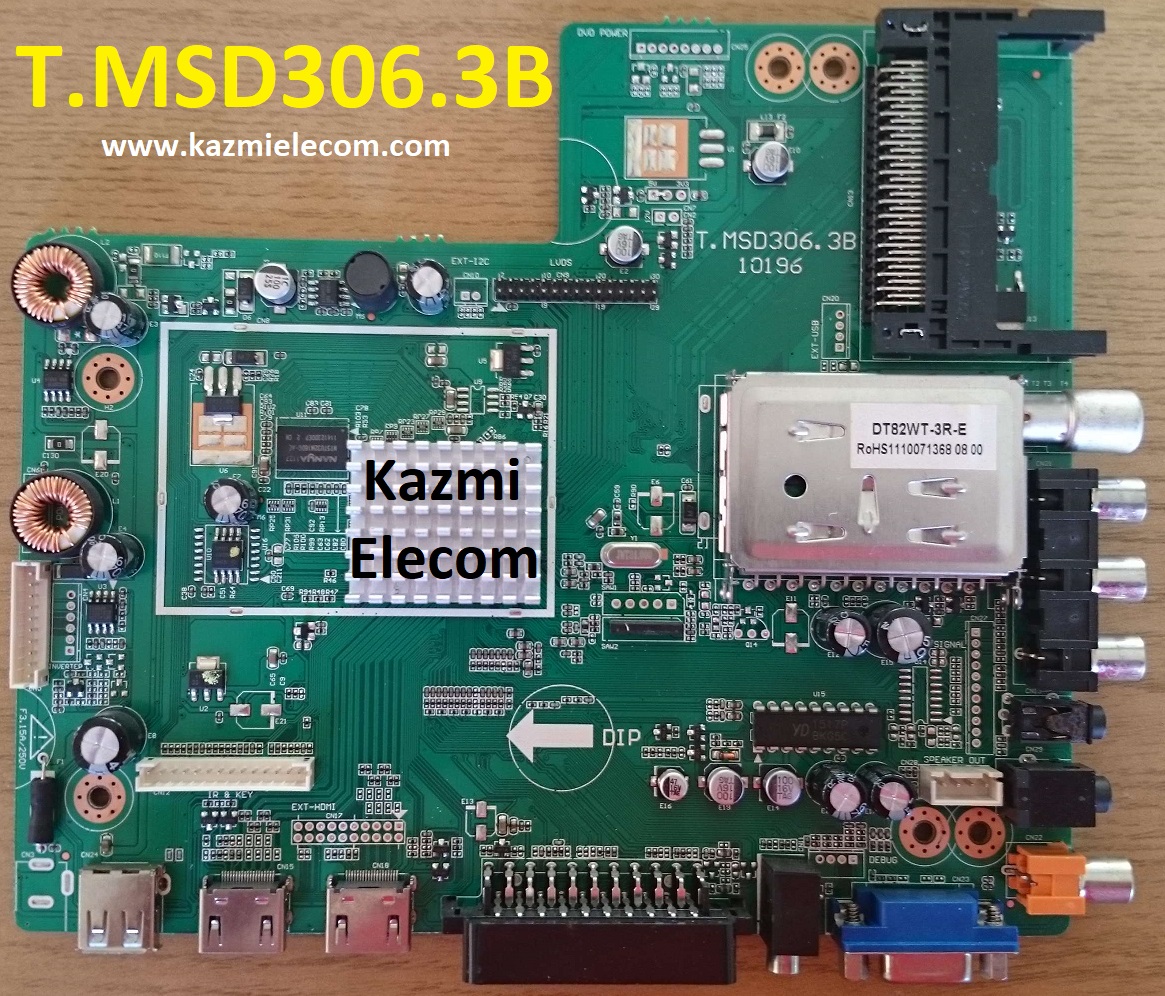

T.MSD306.3B LED TV Board
T.MSD306.3B is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is builtin into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.T.MSD306.3B-10196 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.MSD306.3B 10196
Main Chip: MSD306
Product: LED TV
LED Backlight: mA
Flash IC: 4Mb
Sound Chip:
Tuner IC: DT82WT-3R-E
Screen supported: 18-24 inches
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Firmware Type: Backup Dump
Service Code:
Source/Input
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
T.MSD306.3B firmware for free download:
- T-MSD306-3B 1366x768_SHIVAKI_DUMP
- T-MSD306-3B 1440x900_ORION_DUMP
- T-MSD306-3B 1920x1080_AKAI_DUMP
- T-MSD306-3B 1920x1080_AUDIOSONIC_DUMP
- T-MSD306-3B 1920x1080_BUSH_DUMP
- T-MSD306-3B 1920x1080_ORION_DUMP
- T-MSD306-3B 1920x1080_QUADRO_DUMP
