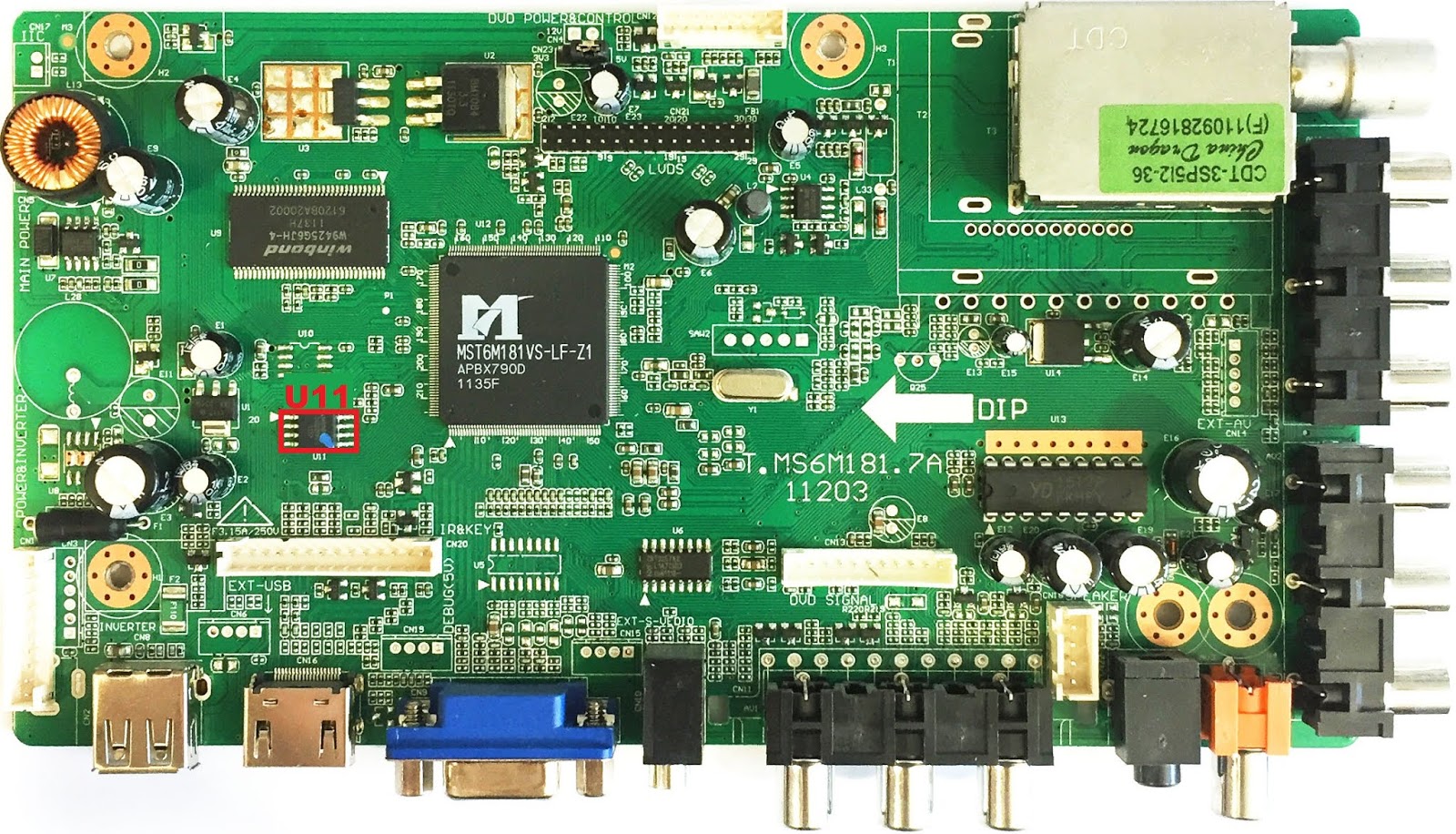

T.MS6M181.7A LCD/LED TV Board
T.MS6M181.7A-11203 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 19-inch to 32-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrade as well. T.MS6M181.7A-11203 has the HDMI port support of 1.4 and its HDCP support of 1.1. T-MS6M181-7A_14453 is compatible with Non-HD and FHD LCD/LED panel screens.
T_MS6M181_7A 11203 is widescreen supported and also has a multi-language option. T.MS6M181.7A-11203 has its special feature of AV.T.MS6M181.7A-11453 software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: T-MS6M181-7A 11203, T-MS6M181-7A 11453, T-MS6M181-7A 14453
Main Chipset: MST6M181VS-Lf-Z1
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V / +3.3V DC (Jumper Setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following firmware collection is a USB Boot and Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.MS6M181.7A Firmware Collection Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MS6M181.7A-All-USB-Firmware | Download |
| 2 | T.MS6M181.7A_AKAI LEA-19V07P_Backup_Dump | Download |
| 3 | T.MS6M181.7A_ERISSON 22LEE01_Backup_Dump | Download |
| 4 | T.MS6M181.7A_FUSION FLTV-D22H11_Backup_Dump | Download |
| 5 | T.MS6M181.7A_HYUNDAI H-LED19V1_Backup_Dump | Download |
| 6 | T.MS6M181.7A_HYUNDAI H-LED19V13_Backup_Dump | Download |
| 7 | T.MS6M181.7A_RUBIN RB-12S2U_Backup_Dump | Download |
| 8 | T.MS6M181.7A_ERISSON 16LEE01_Backup_Dump | Download |
