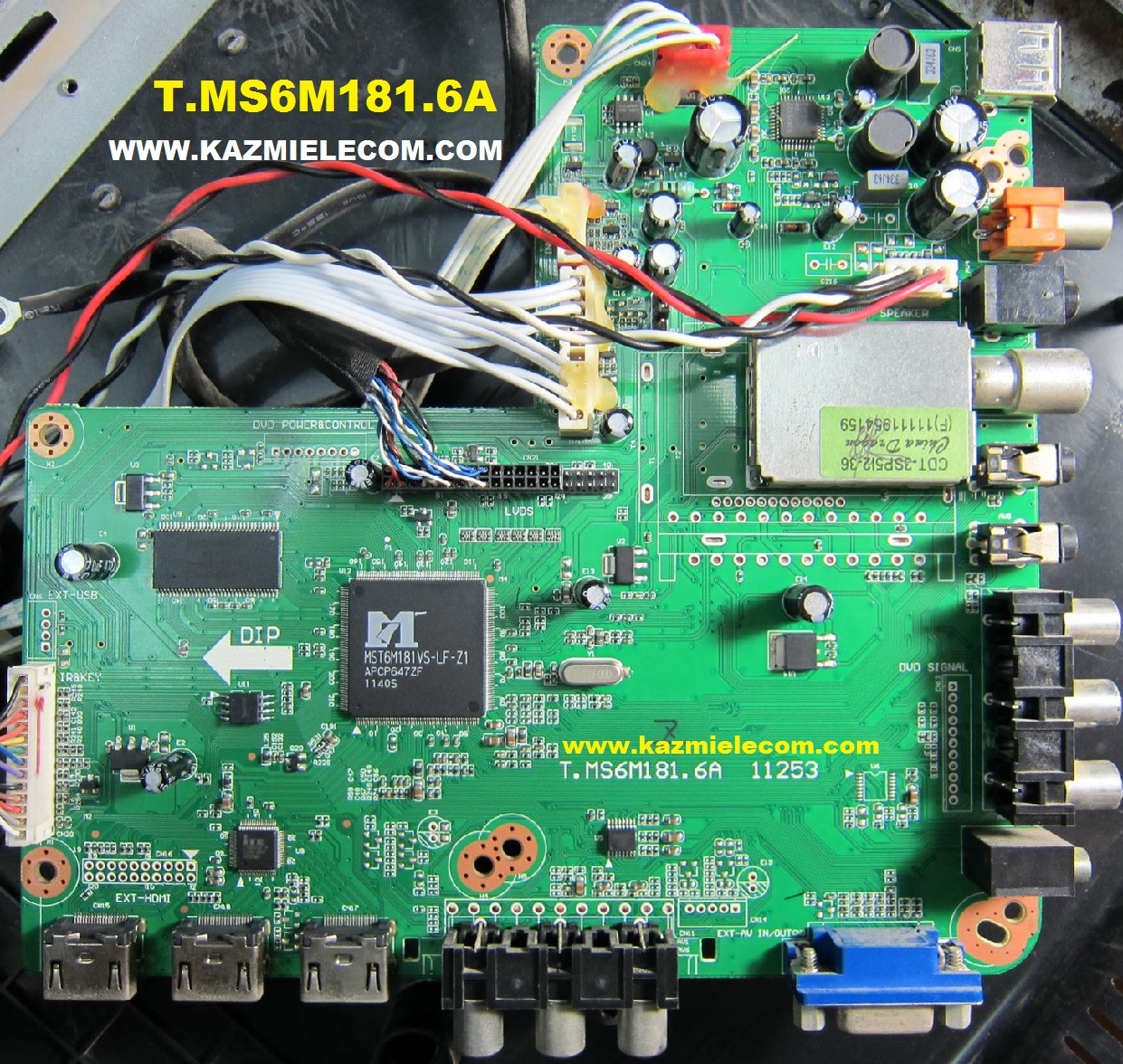

T.MS6M181.6A LCD/LED TV Board
T.MS6M181.6A is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. T_MS6M181_6A is a non-combo board which means the main power supply is required for power input but the ATV board and LED backlight driver board is a built-in single PCB. This can also be operated by a DC 12V input power supply. The firmware files are given below for the Technician’s support. This board has multiple connectivity user interfaces like HDMI, Mini AV Port, Scart, VGA, RF antenna, USB, and Headphone Jack. T.MS6M181.6A Software files are shared in this post for the support of Technicians.
General Specifications:
Board Make: China
Board Model: T-MS6M181-6A 11253, T-MS6M181-6A 12021
Main Chipset: MST6M181VS-Lf-Z1
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V / +3.3V DC (Jumper Setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following firmware collection is a USB Boot and Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.MS6M181.6A Firmware Collection Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MS6M181.6A_1366x768_DAEWOO_DUMP | Download |
| 2 | T.MS6M181.6A_1366x768_ERISSON_DUMP | Download |
| 3 | T.MS6M181.6A_1366x768_HYUNDAI_DUMP | Download |
| 4 | T.MS6M181.6A_1366x768_PANDA_DUMP | Download |
| 5 | T.MS6M181.6A_1920x1080_AFTRON_DUMP | Download |
| 6 | T.MS6M181.6A_1920x1080_BESAT_DUMP | Download |
| 7 | T.MS6M181.6A_1920x1080_MSTAR_DUMP | Download |
| 8 | T.MS6M181.6A_1920x1080_VD TECH_DUMP | Download |
| 9 | T.MS6M181.6A_1366x768_NIKURA_DUMP | Download |
| 10 | T.MS6M181.6A_1920x1080_DAEWOO_DUMP | Download |
