T.MS6M181.15A Software Free Download

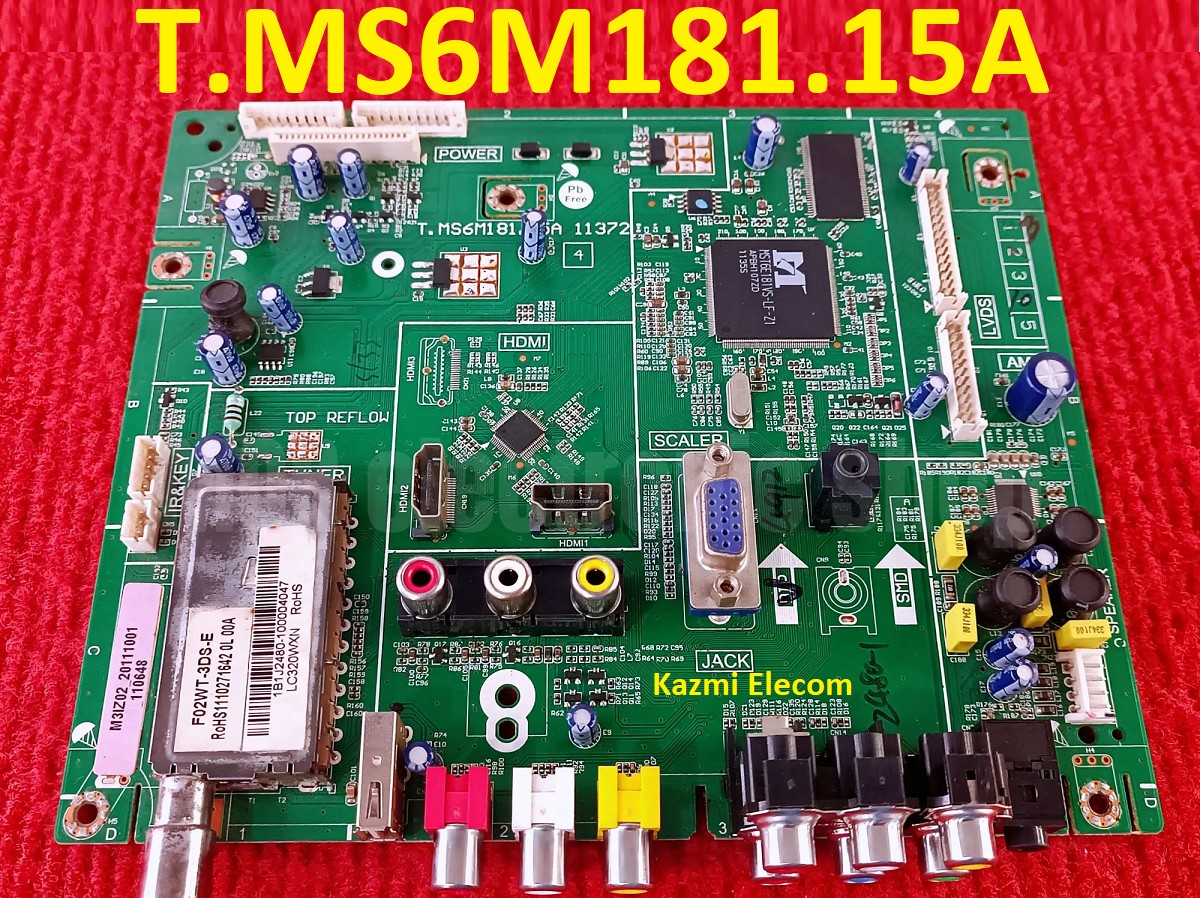

T.MS6M181.15A LED TV Board

T.MS6M181.15A-11372 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 32-inch to 42-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrade as well. T.MS6M181.7A-11203 has the HDMI port support of 1.4 and its HDCP support of 1.1. T-MS6M181-15A_11372 is compatible with Non-HD and FHD LCD/LED panel screens. T_MS6M181_15A 11372 is widescreen-supported and also has a multi-language option. T.MS6M181.15A-11372 has its special feature of  AV.T.MS6M181.15A-11372 software collection is given below for free download.

General Specifications:

Board Make: China

Board Model: T-MS6M181-15A 11372

Main Chipset: MST6M181VS-Lf-Z1

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V / +3.3V DC (Jumper Setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Tuner: F02WT-3DS-E

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Firmware Type: Backup Dump

Note: The following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

T.MS6M181.15A Firmware Collection Free Download Here :

• T.MS6M181.15A 11372 JVC-32
• T.MS6M181.15A 11372 JVC-40
