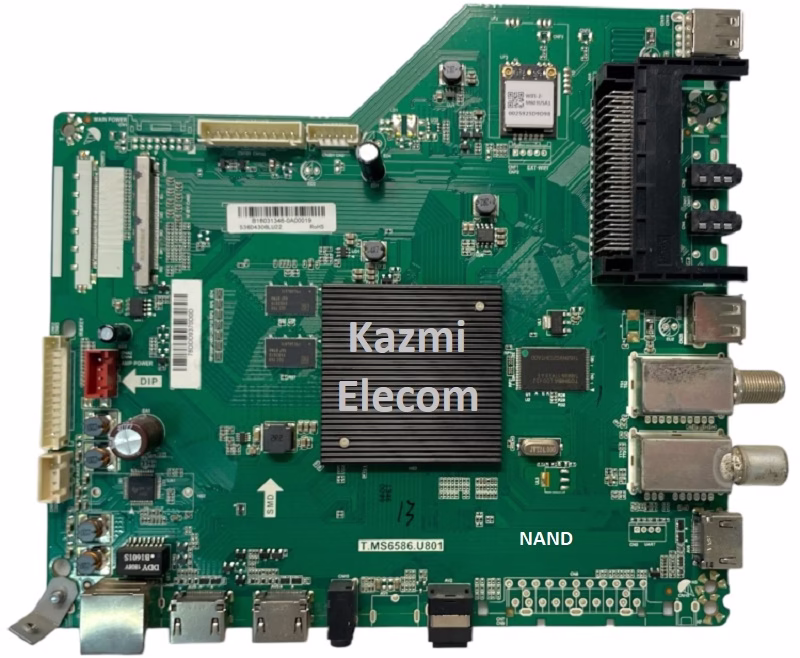

T.MS6586.U801 4K LED TV Board
T.MS6586.U801 is an Intelligent smart Wifi 4K network driver LED TV motherboard with a support resolution of Ultra High Definition 3840×2160. T_MS6586_U801 is dedicated to 60 Hz screens. It is not a combo board. T-MS6586-U801 has the full features of input interface connectivity. It has multiple input connectivity ports like triple HDMI, Mini AV, Scart, headphones, CI+ interface, USB ports, and RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. T MS6586 U801 is a digital and analog TV tuner built into the main board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2/C/S) signals. This board has an inbuilt WiFi module and LAN interface. T.MS6586.U801 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED 4K Smart Driver Board
Model: T.MS6586.U801
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 4.4
CPU: Dual-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali T720MP2
RAM: 1 GB DDR3
ROM: Nand or EMMC (4Gb)
Nand Memory: TH58NVG2S3HTA00
USB Input: 02
HDMI Input: 03
Scart: Yes
CI+: Yes
RJ45 (LAN): Yes
Wifi: Yes
AV Input: Yes (Mini)
Sound Output: 8Wx2
RF TUNER: DVB-T/T2/C/S/S2/(S/S2 option)
Video System: PAL/SECAM/NTSC
Note: The following software is provided for Technician support. Kazmi Elecom Team is not responsible for any damage or loss caused by uploading or downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files, then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.MS6586.U801 firmware file for free download:
