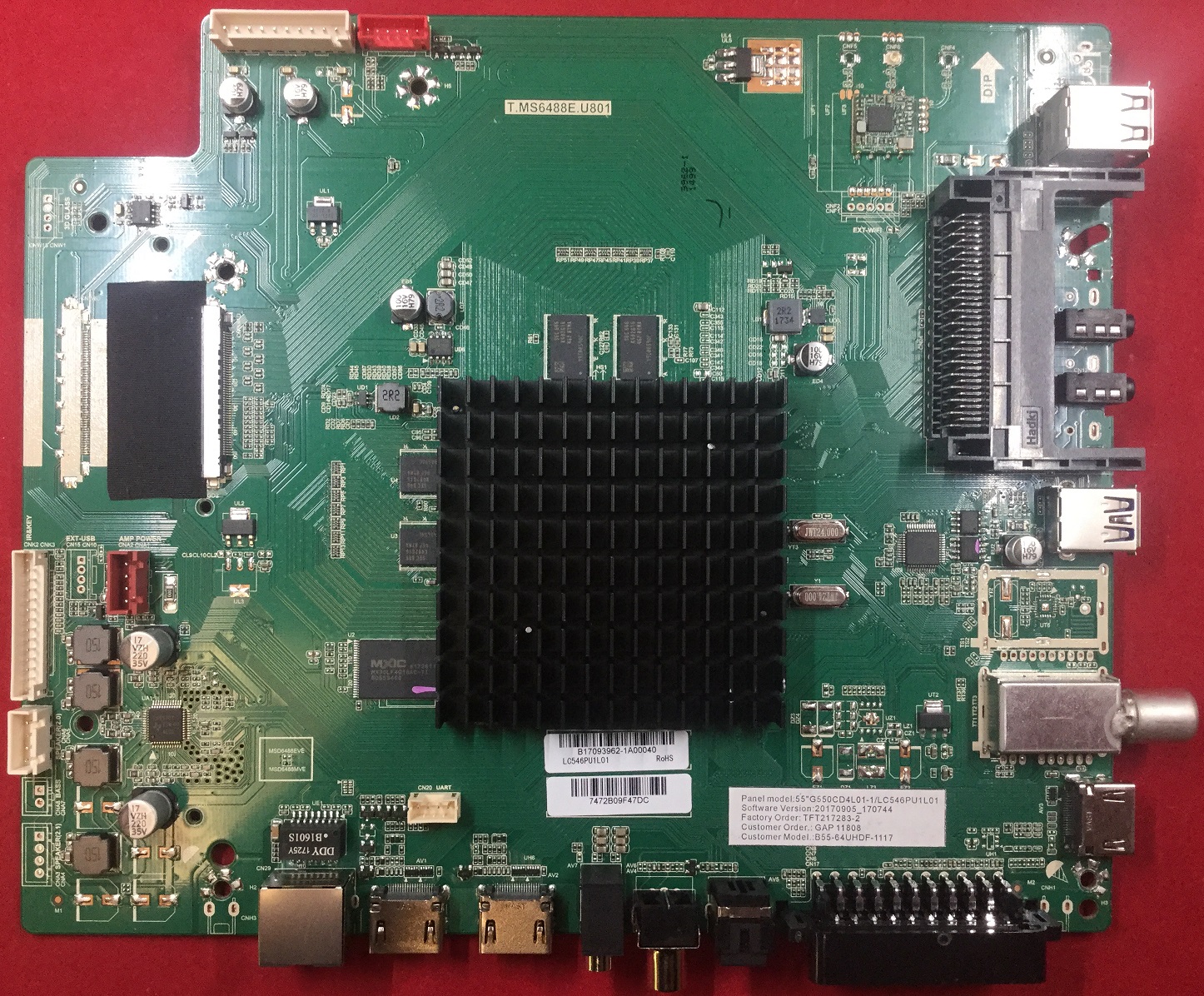

T.MS6488E.U801 4K Smart Board
T.MS6488E.U801 is an Intelligent smart 4K network driver LED TV board with a support resolution of 3840×2160. T_MS6488E_U801 is dedicated to 100 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. T-MS6488E-U801 has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. T MS6488E U801 is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2/C/S) signals. T.MS6488E.U801 Firmware file is given below for Technician’s support.
Technical Specifications:
Brand/Mark: China Universal 4K Three-In-One Motherboard
Main Board Model: T.MS6488E.U801
Backlight :
OS: Android 6.0
CPU Frequency:
GPU Frequency: Mali 450 GPU
Ram: 1Gb DDR3
Rom: 8 Gb eMMC
Screen Supported: 42″ to 65″
Resolution: up to 3840X2160 UHD
Speaker Output: 20W(10×2)
Power Consumption: 120 Watt
Firmware Type: USB Upgrade
Firmware File: allupgrade_6488m.bin
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.MS6488E.U801 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MS6488E.U801-3840x2160-TEMPO.part1 | Download |
| T.MS6488E.U801-3840x2160-TEMPO.part2 | Download | |
| 2 | T.MS6488E.U801_3840x2160_HAIER.part01 | Download |
| T.MS6488E.U801_3840x2160_HAIER.part02 | Download | |
| T.MS6488E.U801_3840x2160_HAIER.part03 | Download | |
| T.MS6488E.U801_3840x2160_HAIER.part04 | Download | |
| T.MS6488E.U801_3840x2160_HAIER.part05 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Firmware Files:
CP155757_TEMPO_QIYUE_MS6488_U801C_UD_VB1_8LANE_COS T_LSC480FN03_UK_ irBAUHN _OAD_T2_V1_AT_R_V0.01_2016041148040F08403 × 2140330
CP155751_TEMPO_QIYUE_MS6488_U801C_UD_VB1_8LANE_COS T_LSC480FN06_UK_ irBAUHN OAD_T2_V1_AT_R_V0.01_20160407_43388
CP169288_TEMPO_CNC_MS6488_U801C_UD_VB1_8LANE_LSC65 0FJ09_AUS_DA_T2_V2_AT_R_V0.01_20160629_172516
CP169628_TEMPO_CNC_MS6488_U801C_UD_VB1_8LANE_LSC55 0FJ11_AUS_DA_T2_V2_AT_R_V0.01_20160628_191641
CS212517_TEMPO_QIYUE_MS6488_U801C_UD_VB1_8LANE_COST_LSC490FN03_W_UK_irBAUHN_OAD_DA_T2_V2_AT_R_V0.01_20161230_145915
CP166662_HAIER_MS6488E_U801_536D550XU13_irHAIER_A18EN_LE55U6500U_OAD_T2_V1_AT_R_V1.01_20160607_2.tar
