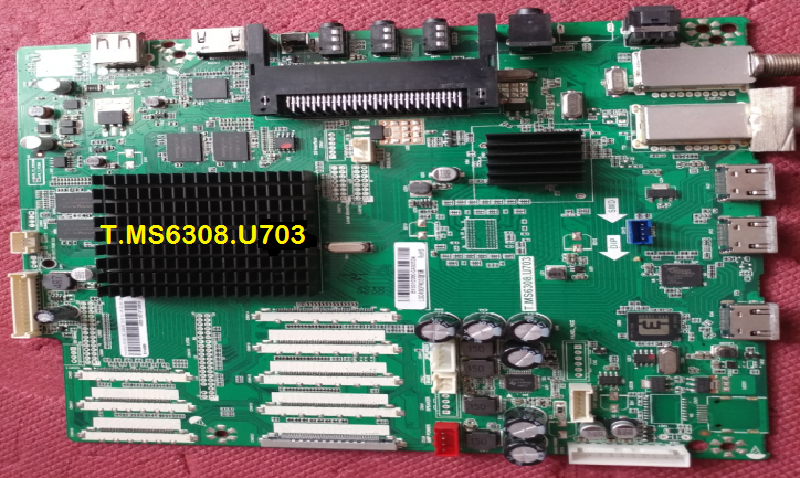

T.MS6308.U703 4K LED TV Board
T.MS6308.U703 is an Ultra HD LED TV Driver Board with a screen resolution of 3840x2160p. It has four HDMI ports, one USB port for Multimedia and software update functions, and Scart Adapter. T-MS6308-U703 has the Special feature Freeview HD Tuner. T_MS6308_U703 has dual-tuner input as DVB-T/T2/C/S/S2 + MPEG4 Digital Tuner built in it. T.MS6308.U703 is a non-combo board. T.MS6308.U703 firmware files are given below for free download.
Technical Specifications:
Board Model: T-MS6308-U703
Resolution: 3840x2160p (UHD)
Audio Power: 2x10W (8 ohm)
Backlight:
USB Ports: 1
HDMI Ports: 4
Scart: 1
RJ45: Yes
Analog Tuner: PAL, SECAM
Digital Tuner: DVB-T/T2/C/S/S2 + MPEG4
Wifi: No
Mira-Cast:
Satellite Input: Yes
ROM: 1Gb
RAM: 4Gb
Power Rating: 220V~240V 50Hz
Power Consumption: 110Watt Max.
Firmware: allupgrade_6308rtbm.bin
Firmware Type: USB Updateable Firmware
Product User: Orion, DGTECH, Bauhn, Sharp
Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
T.MS6308.U703 Firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MS6308.U703_3840x2160_Firmware.part1 | Download |
| T.MS6308.U703_3840x2160_Firmware.part2 | Download | |
| T.MS6308.U703_3840x2160_Firmware.part3 | Download | |
| T.MS6308.U703_3840x2160_Firmware.part4 | Download | |
| T.MS6308.U703_3840x2160_Firmware.part5 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
I have an Akai VJ5516UHDSM with this board. I believe it has one 4K 60hz port but I am having issues running at this refresh rate.
I’ve tried an Xbox one X and Chromecast with Google tv and the screen just keeps flashing black.
Is there a fix for this? Is it just settings in the service menu?
Hi, I have an AKAI VJ5516UHDSM 55″ 4K TV and I’m having issues running 4K at 60hz. From what I understand 1 HDMI port supports 4K at 60hz. I have tried a chromecast with google TV and an XBOX One X but the screen keeps flashing black.
Is there a fix for this?
Some board numbers
A550ND2N07
LSC550FN07-W
MIP5055-4K-JXT
T.MS6308.U703
No solution
