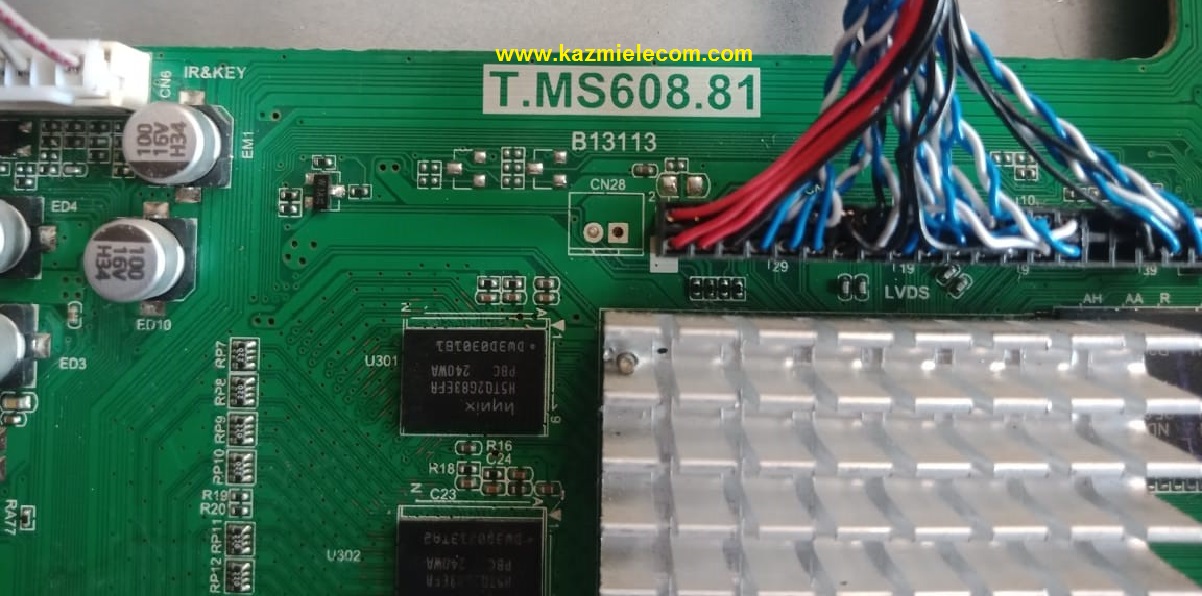

T.MS608.81 LCD/LED TV Smart Board
T.MS608.81 USB boot firmware files are shared in this post for technicians’ support.
General Description:
Brand/Mark: LCD/LED Main Board (Android WIFI Network Drive Board)
Main Board : T.MS608.81
OS: Android 4.4
CPU: Dual Core
Back Light V/C : 65v-80v 560MA
Ram: 512 Mb DDR
Rom: 4 Gb eMMC
Resolution: up to 1920×1080
Firmware Files:
T_MS608_81_1366x768_General\Mboot_Upgrade_GENERAL_1366_768_PWM_MS608_81_XYR_08_KA94_NTSC_EMMC
T_MS608_81_1920x1080_General\General_1920_1080_PWM_cs16710_xingyun_MS608_81_emmc_XYR_08_20131106
T_MS608_81_1920x1080_Pakistan\Mboot_Upgrade_CP66724_MS608_81_PAKISTAN_V500HK1_LS6__C1_IR_TL_ALL_F_35T_06_EMMC_AT_e4abf5b_14091.rar
T_MS608_81_1366x768_2G_M90-IR\General_1366_768_PWM_cs16710_xingyun_MS608_81_mlc_XYR_08_20131106
T_MS608_81_1920x1080_2G_3D_M90-IR\General_1920_1080_PWM_SWAP_cs16710_xingyun_MS608_81_mlc_3D_XYR_08_20131106
Service Code:
Source 1147,2580
How to Load Software:
- Transfer the required resolution file into USB Disk
- Plugin the USB Disk into Main Board
- Keep Pressing the Standby/Power button and Power on the board
- Wait until the led light starts flashing
- Note: USB file must be the name of “MstarUpgrade.bin”
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.MS608.81 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MS608.81_1366x768_General_China.part1 | Download |
| T.MS608.81_1366x768_General_China.part2 | Download | |
| 2 | T.MS608.81_1920x1080_General_China.part1 | Download |
| T.MS608.81_1920x1080_General_China.part2 | Download | |
| 3 | T.MS608.81_1920x1080_Samsung.part01 | Download |
| T.MS608.81_1920x1080_Samsung.part02 | Download | |
| T.MS608.81_1920x1080_Samsung.part03 | Download | |
| T.MS608.81_1920x1080_Samsung.part04 | Download | |
| T.MS608.81_1920x1080_Samsung.part05 | Download | |
| 4 | T.MS608.81_1920x1080_Pakistan.part1 | Download |
| T.MS608.81_1920x1080_Pakistan.part2 | Download | |
| T.MS608.81_1920x1080_Pakistan.part3 | Download | |
| T.MS608.81_1920x1080_Pakistan.part4 | Download | |
| T.MS608.81_1920x1080_Pakistan.part5 | Download | |
| 5 | T.MS608.81_1366x768_2G_M90-IR.part01 | Download |
| T.MS608.81_1366x768_2G_M90-IR.part02 | Download | |
| T.MS608.81_1366x768_2G_M90-IR.part03 | Download | |
| T.MS608.81_1366x768_2G_M90-IR.part04 | Download | |
| T.MS608.81_1366x768_2G_M90-IR.part05 | Download | |
| 6 | T.MS608.81_1920x1080_2G_3D_M90-IR.part01 | Download |
| T.MS608.81_1920x1080_2G_3D_M90-IR.part02 | Download | |
| T.MS608.81_1920x1080_2G_3D_M90-IR.part03 | Download | |
| T.MS608.81_1920x1080_2G_3D_M90-IR.part04 | Download | |
| T.MS608.81_1920x1080_2G_3D_M90-IR.part05 | Download | |
| 7 | T.MS608.81_25Q16_mboot.bin_Backup | Download |
hello
i have METZ screen “42”M-LED42 main board T.MS608.81.
we did a software innovation and everything worked fine.
only one thing dose not work out after shutting down the screen it turns on alone
Price for t.ms608.81 main board please
I need T. V 56.81 COMBO BOAD SOFTWARE PLEASE SIR
Not working file boot hi ni karti
ok
Hello sir mere pas china led h 40 inch board ka numberT. Ms608. 81 hai
Isme 4 software hyn m konsa karun is per samsung likha h
jo remote apki tv ko lagta hy wohi wala software kar len
Deat sir
I require software of card no.T.MS608.81
resilation 1920* 1080
There link no file fond
my card go’s to standby no pawer on plz help me for solve this isho.
Regards Attiq from vehari
There is a Server issue. Please wait
Sir
My led hang on logo and goes to standby.
when upgrade software from usb green lite on only 10 s felik then red lite filiking fastly pleas help for this
Attiq Vehari
its mean software done
Sehr geehrte Damen und Herren,
mein Ferseher hat Softwareprobleme. Man kann den Fernseher anschalten und das Logo “SHARP” wird am Anfang aud den Fersehbildschirm gezeigt, aber dann geht es plötzlich automatisch wieder aus. Ich habe gestern bei Ihnen angerufen und Sie haben gesagt, dass Sie mir das Software zuschicken werden.
Außerdem ist das SERIAL NO. vonm Ferseher: B43CF5222EB03N 36106551100483
Mit freundlichen Grüßen
Abid Hameed
aslam.o.alekam
sir mujhy t.ms182.81b bord ka software chaheyee .kobi k 55″led meen lagha hua hey mapping meen hey
w.salam dear yeh board mene kabhi dekha nai. kia ap iski picture share kar sakte ho Forum page pe
AOA, kazmi bhai mujhay samsung 3d smart LED TV k leay software chaheay but opper available links main files nae hain. Pakistan version wala install ho gya hay but sony lovo ata hay aur remote buttons alter ho gaay hain pl help and share link for samsung pl. TM.S608.81 40 INCH
w.salam dear work kar raha hy to behtar hy remote change kar len warna software k chakkar me tv dead bhe ho sakta hy
Bhai, lock down hay aur shops band hain mostly. Shall be grateful agar ap link share kar sakain samsung ka
ap pakistan wali file kar len. samsung wale links update kar don ga
Kazmi sb.
Sony LED TV Malaysian model KDL-40EX640 Card T.MS608.81 .
Android logo blinks on this smart TV.
Please guide which file should i download ??
sony remote me to nai hy samsung wala kar len. panel ki resolution confirm kar len wesy mere khial me 1920 he hogi
Shukria sir.
Samsung Kerne se Sony wala remote kamm nahi kerey ga ?
5 files hein to konsi keren ?
Sony ki file kahan se download ker sakta hoon ?
samsung se samsung wla remote work kare ga. sony file not available. download all parts then extract anyone
Shukria G.
Kya ye theek nahi?
Flash drive me dala magar kuch nahi hova.. tv ne pick nahi kia.
https:get/TV-HDTV-Projectors/Sony/Sony-Bravia-KDL-40EX650
No. yeh original ka hy aur apki fake hy
Kazmi sb.
I installed the Samsung file and it did install. But the screen was blur and after Samsung log nothing used to appear. The file had 52 inches written and my LED is 40 inches.
I download another file with name _General from another site but the language is Thai and the remove is not working. Tried the original remote of LED and also a Samsung remote.
Please guide what is wrong and which options/files should i try now ?
dear distorted picture can be set from service menu. other software you load in it may not support english language. 52 inch and 40 inch no matter if panel resolution is same
sir mere pass samsung 3D 55″ Smart LED he.is ko koi be software boot nai ho raha. kya mauje file ka name change karna pare ga. please help
usb disk change kar k check karen
Aoa bhai.
Mere pass 40 inch led hey T.MS608.81 board hey. Meine samsung wali tamaam files download ker k unzip ki aur mstarupgrade.bin wali file usd mein rakh li.
Usb plug ker k power button dabba ker rakha tao kuch nahi hua. Bas led start ho gyii. Koi red light blink nahi hoi. 7sb change ker k bhi dekh li aur power on button ziada deir tak press oer k rakha phir bhi kuch nahi hua. Bas led on ho jaati hey, smart tv ka logo aaata hey, phir android and then aaps wagera.
Kindly mein koi expert nahi huun iss liye ager thira detail mein bata dein gay tao bohat shukriya ho ga app ka.
w.salam bhai
yeh software update purpose k liey nai hy. ap try na karen tv dead ho jye ga
As Salam O Elikum.
Kazmi Bahi China ki LED jis mein T.MS608.81 Board laga hua Hey.Us pay remote nahi chalta tha,meiny samsung wala firmware update kia,USb laga kar.kafi dair red light blinking k bad lred ight stable ho gai.lakin us k bad LED on nahi ho rahi.kya wajha ho sakti hey? abb kya karna chaiye?
w.salam. software sahi se load nai hua ya phir wrong software ho gya hy. ap board check karen aur phir se panel resolution k mutabiq usb disk change kar k load karen
As Salam O Elikum.
Azhar bahi kya hal hein,Bahi meiny t.ms608.81 mein samsung,gernal,pakistan tamam software bari bari install kiey.lakin kisi par bhi remote nahi chala. Last wala software (General_1920_1080_PWM_SWAP_cs16710_xingyun_MS608_81_mlc_3D_XYR_08_20131106). is par universal remote chal jata hey,lakin proper kam nahi karta,response bohat slow hey.
General_1920_1080_PWM_cs16710_xingyun_MS608_81_emmc_XYR_08_20131106 .
Is Software k sath kon sa remote chaly ga ?
please waiting ur response.
not confirm
mere pass 32 inch chinese tv hay us pe sony likha huwa hay us me sirf china wala 1366 wala instal kiya hay chal bhi raha hay lakin language chinese aa gai hay or remote bhi kam nahi kar raha please help how to resolve that issue
change software
bhai mere pass led 60 inch hai model T.MS608.81 is ki power on kare tu black ligth chalti hai sari screen per or logo bhi show nahi hota iska kiya masla ho sakta hai OR MUJE SOFTWARE CHAHIYE KAISE MILE GA PLZ REPLY
dear backlight ka issue ho sakta hy
Sir mere pass samsung ua40f6400 china model ha jis main t.ms608.81 card laga howa hai.
Isk remote main bachon ne pani dal diya hai jiski waja se remote kaam nahi kr rah.main ne mouse laga kar led ko reset kar diya hai reset hone k baad wo red light per chali gai hai ab led on nahi ho rahi.
Phir main ne apki websit se samsung ka software 5parts main download kia or part 1 ko extract kar k usb main dall k led main lagaya laikin wo software nahi lay rahi power ka button bhi press kar k rakha per red light blink nahi kar rahi.sir iska kia hal hai plz informe.
sir t.ms608.81 ka firmware not found aaraha hy please mediafire par upload karden
ok
sir mAIN NYE FILES DAWNLOAD KR LII HAIN BUT PASWORD AAAAAAA RHA KINDLY HELP
No PW set
usb LED pr lagai or power button press rakh kr TV ko power di..magr light pr koi farq nhiin para.
Please Help
check videos sectino
Slam. Sir I have t-ms601.81 . I have tried to extract all files only succeded in one the general one all other files stop extracting with fatal error the one I have successfully extracted and installed in TV is the Chinese version .now the problem m facing is the menu top icons are running in selecting mood means its coursing on all icons in running position and nit allowing remote to select any icon
