T.MS18VG.81B LED TV Driver Board
T.MS18VG.81B is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 42-Inches LED panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. T.MS18VG.81B has multiple HDMI ports that support 1.4 and its HDCP support 1.1. T_MS18VG_81B is compatible with Non-HD and FHD LCD/LED panel screens. T-MS18VG-81B is widescreen-supported and also has a multi-language option. T.MS18VG.81B has its special feature of AV.T.MS18VG.81B software collection is given below for free download.
There are two types of T.MS18VG.81B according to their version and characteristics:

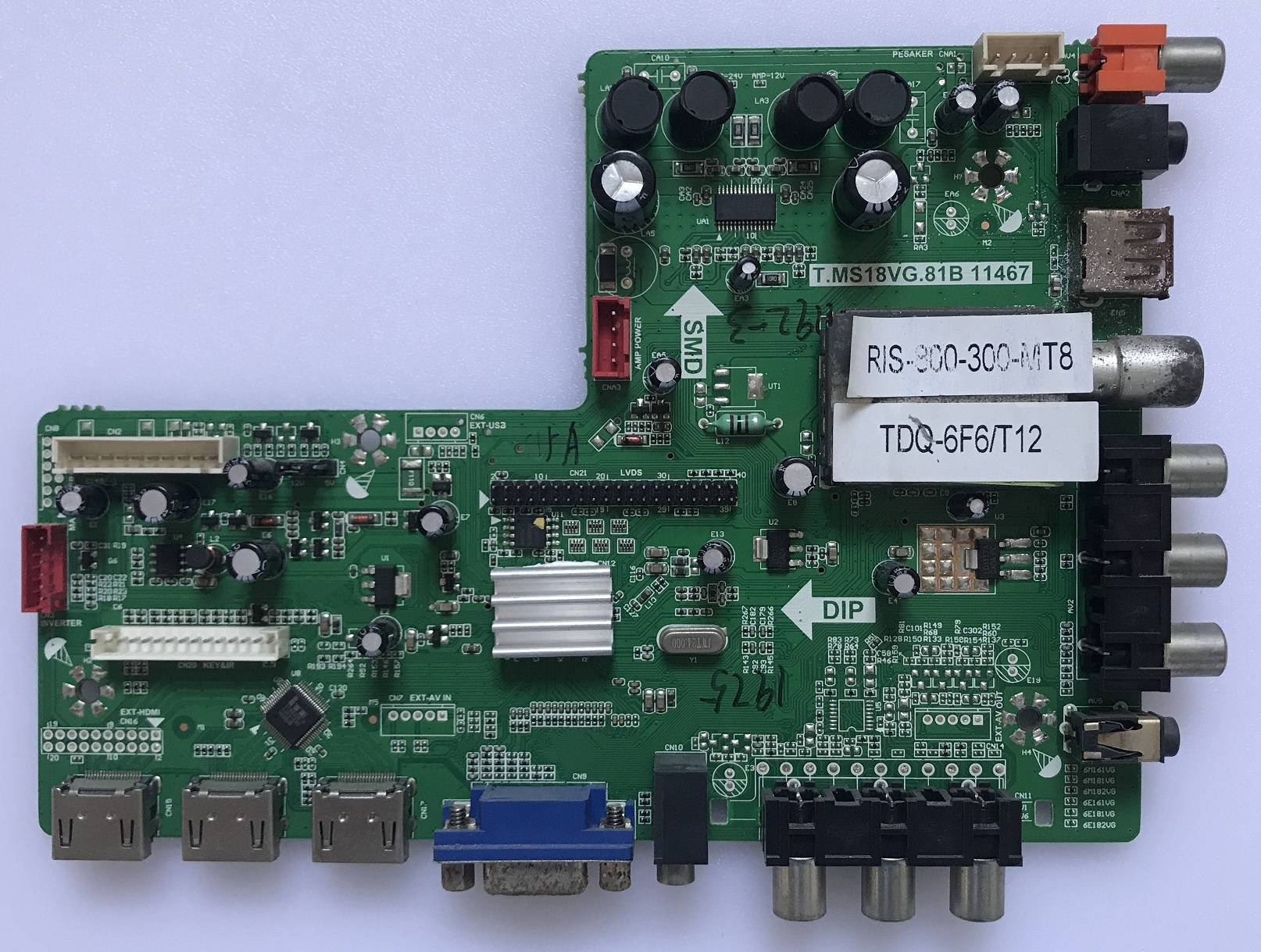

- T-MS18VG.81B 11467

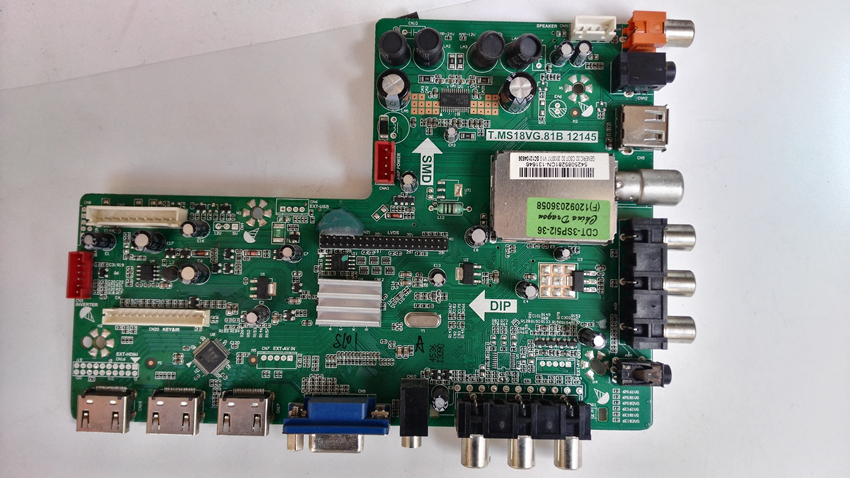

- T-MS18VG.81B 12145
General Specifications:
Board Make: China
Board Model: T-MS18VG.81B 11467, T-MS18VG.81B 12145
Main Chipset: Mstar MST6M182VG
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.MS18VG.81B Firmware Collection Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MS18VG.81B-11467_1366x768_Akai_Backup_Dump | Download |
| 2 | T.MS18VG.81B-11467_1366x768_Caixum_Backup_Dump | Download |
| 3 | T.MS18VG.81B-11467_1366x768_Ericson_Backup_Dump | Download |
| 4 | T.MS18VG.81B-11467_1366x768_Mitashi_Backup_Dump | Download |
| 5 | T.MS18VG.81B-11467_1366x768_Nikai_Backup_Dump | Download |
| 6 | T.MS18VG.81B-11467_1366x768_Supra_Backup_Dump | Download |
| 7 | T.MS18VG.81B-11467_1366x768_Tongfang_USB_Firmware | Download |
| 8 | T.MS18VG.81B-12145_1366x768_Daewoo_Backup_Dump | Download |
| 9 | T.MS18VG.81B-12145_1366x768_Haier_Backup_Dump | Download |
| 10 | T.MS18VG.81B-12145_1366x768_SG32LE-2B_Backup_Dump | Download |
| 11 | T.MS18VG.81B-12145_1366x768_Supra_Backup_Dump | Download |
| 12 | T.MS18VG.81B-12145_1366x768_USB_Firmware | Download |
| 13 | T.MS18VG.81B-12145_1920x1080_Ericson_Backup_Dump | Download |
| 14 | T.MS18VG.81B-12145_1920x1080_Haier_Backup_Dump | Download |
| 15 | T.MS18VG.81B-12145_1920x1080_Sony_Backup_Dump | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
