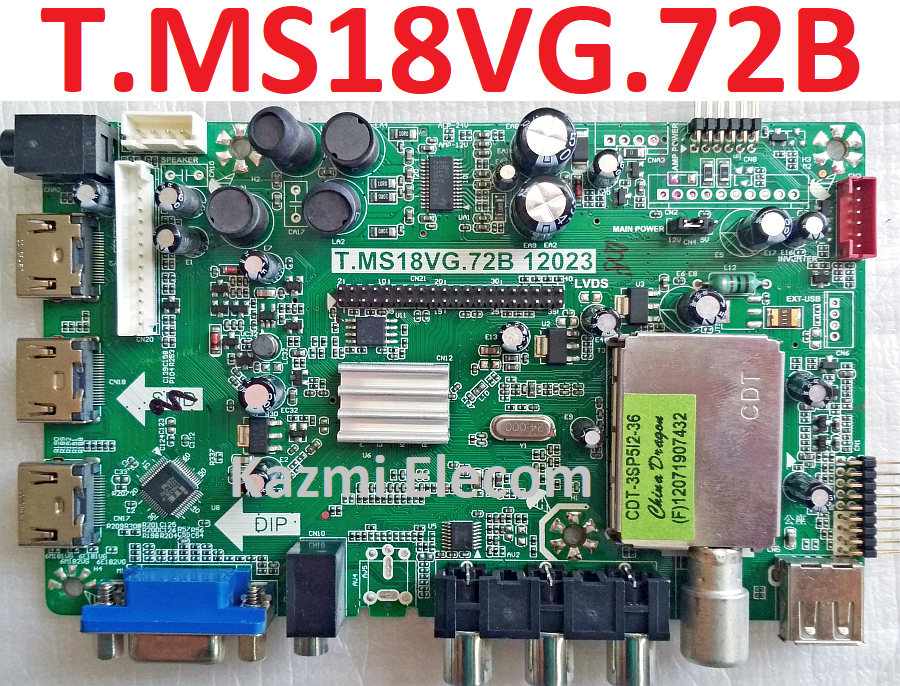

T.MS18VG.72B LED TV Board

T.MS18VG.72B is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 42-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software upgrades as well. T_MS18VG_72B has multiple HDMI ports support 1.4 and its HDCP support 1.1. T.MS18VG.72B is compatible with Non-HD and FHD LCD/LED panel screens. T.MS18VG.72B 12023 is widescreen-supported and also has a multi-language option. T.MS18VG.72B has its special feature of AV.T.MS18VG.72B software collection is given below for free download.

Download Here

General Specifications:

Board Make: China

Board Model: T-MS18VG-72B 12023

Main Chipset: TSUMV59

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V DC (Default 12V)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Firmware Type: Backup Dump

Service Menu: Menu 1147

Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
