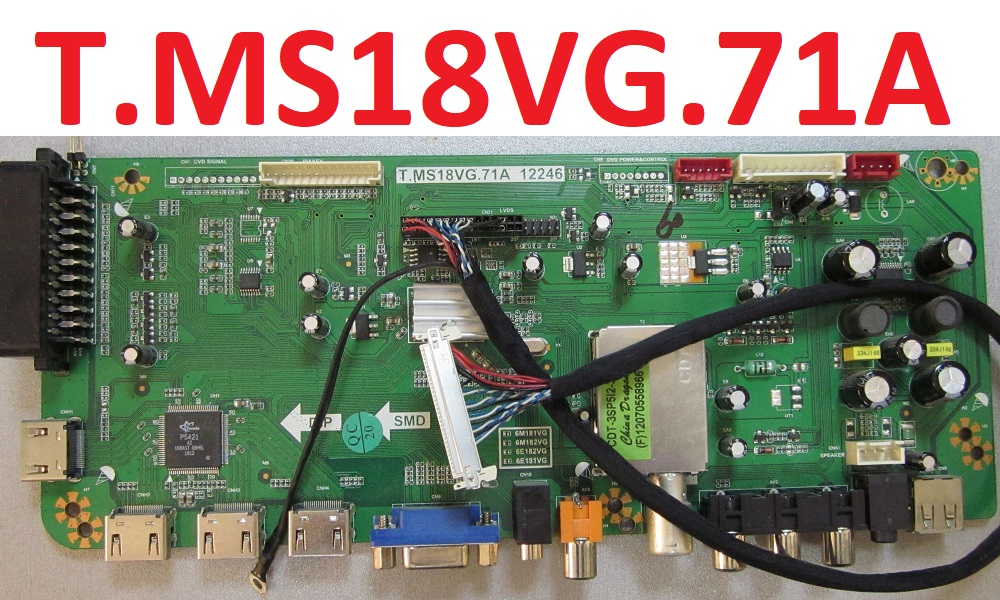

T.MS18VG.71A LED TV Board
T.MS18VG.71A is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 32-inch to 46-Inches LED panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. T.MS18VG.A1B has multiple HDMI ports that support 1.4 and its HDCP support 1.1. T_MS18VG_71A is compatible with Non-HD and FHD LCD/LED panel screens. T-MS18VG-71A is widescreen-supported and also has a multi-language option. T.MS18VG.71A has its special feature of AV. T.MS18VG.71A software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: T-MS18VG.71A
Main Chipset: Mstar MST6M182VG
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC 12 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
T.MS18VG.71A Firmware Collection Free Download:
