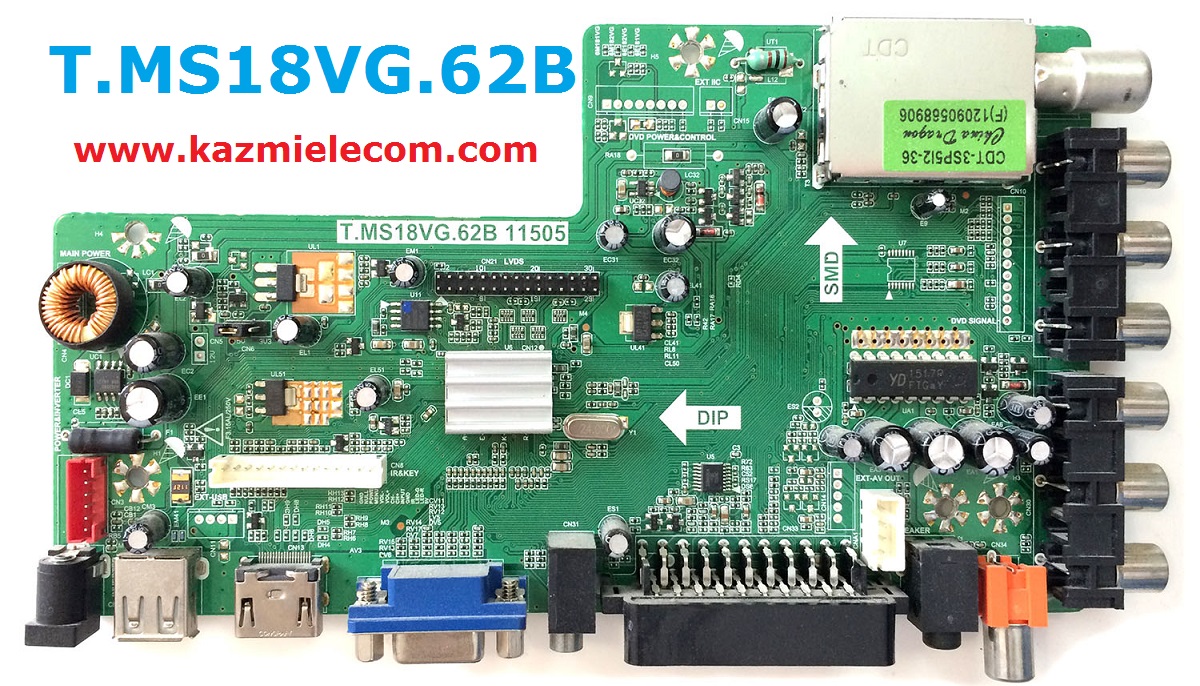

T.MS18VG.62B LED TV Board
T.MS18VG.62B is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 18-inch to 24-Inches LED panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. T.MS18VG.62B has multiple HDMI ports that support 1.4 and its HDCP support 1.1. T_MS18VG_62B is compatible with Non-HD and FHD LCD/LED panel screens. T-MS18VG-62B is widescreen-supported and also has a multi-language option. T.MS18VG.62B has its special feature of AV.T.MS18VG.62B software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: T-MS18VG.62B 11505
Main Chipset: Mstar MST6M182VG
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC 12 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.MS18VG.62B Firmware Collection Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.MS18VG.62B_1366X768_BBK_DUMP | Download |
| 2 | T.MS18VG.62B_1366X768_ERISSON_DUMP | Download |
| 3 | T.MS18VG.62B_1366X768_EUROSTAR_DUMP | Download |
| 4 | T.MS18VG.62B_1366X768_HELIX_DUMP | Download |
| 5 | T.MS18VG.62B_1366X768_RUBIN_DUMP | Download |
| 6 | T.MS18VG.62B_1366X768_SHIVAKI_DUMP | Download |
| 7 | T.MS18VG.62B_1920X1080_ERISSON_DUMP | Download |
| 8 | T.MS18VG.62B_1920X1080_HCN_DUMP | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
