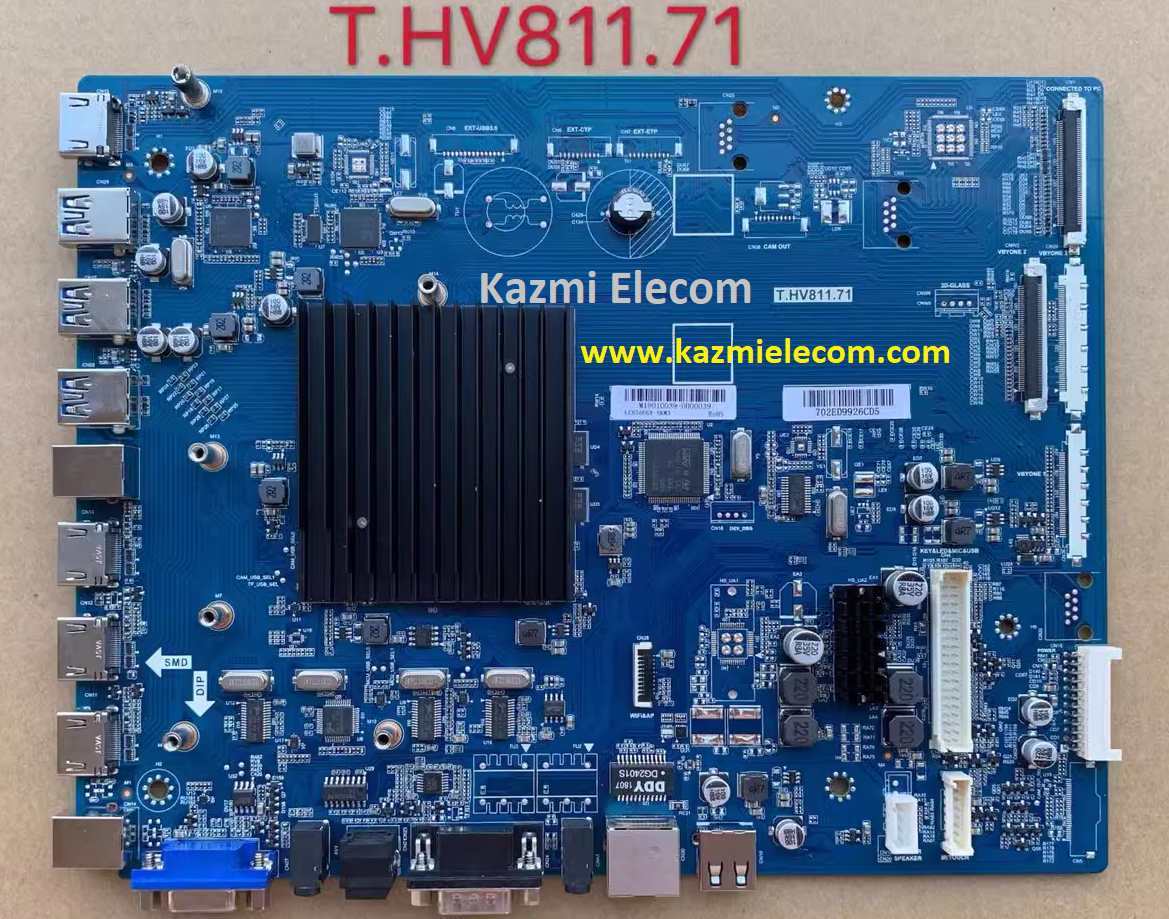

T.HV811.71 4K Monitor Board
T.HV811.71 is a 4K digital smart android Intelligent Network Monitor Board. It is suitable for the LVDS interface and supports more than 42-86-inch LED panels, with a maximum resolution of up to 3840×2160. T_HV811_71 is a non-combo board i.e. power card and backlight driver module are required separately to complete the set.
T-HV811-71 has multiple input interface ports like USB 3.0, HDMI, AV, VGA port, Serial interface, and LAN port for wired internet connectivity. It is also built in a Wireless interface. T.HV811.71 came with some brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files. T HV811 71 firmware file is given below for the technician’s support.
General Specifications:
Model: T.HV811.71
Main Chipset: Hi3751V811
Resolution: 3840×2160
Panel Power: 12v, 5v
CPU: Dual-core A73+Dual core A53/ 1.5GHz (HV811)
GPU: Mali-G51MP4
OS: Android 8.0
Ram: 2/4 GByte
Rom: 16/32 GByte
Aspect Ratio: 16:9
Frame Rate: 60HZ
OS Supported: Win 7, Win 8, Win 10 / Mac OS X10.12 /Chrome OS 58 / Ubuntu 16.04 / Fedora 28
Internal Speaker: 2x 16W with 1x Subwoofer 15W (HIFI 2.1) and Built-in Microphone
VGA Input/Output: 1x VGA
HDMI Input/Output: 3x USB 2.0 and 1x USB 2.0
PC Audio Input (3.5mm): 1x PC Audio Input
Line in/out (3.5mm): 1x In and Out
RJ45 Port: 1x RJ45 Port
SPDIF Output: 1x SPDIF Output
USB Ports: 5x (2.0 x 2; 3.0 x 3)
USB (Type B)Touch Port: 3x USB Type B
USB (Type C): 1x USB Type C
RS232 Input/Output: 1x RS232 Input
Computer card slot: 1x Computer Card Slot
Firmware File: allupgrade_v811.bin
Firmware Type: USB upgradeable Firmware
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.HV811.71 Firmware files for Free Download:
- T-HV811-71 3840×2160 2G-16G MAXHUB.part1
- T-HV811-71 3840×2160 2G-16G MAXHUB.part2
- T-HV811-71 3840×2160 2G-16G MAXHUB.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
