T.HD.3663.031E Software Free Download

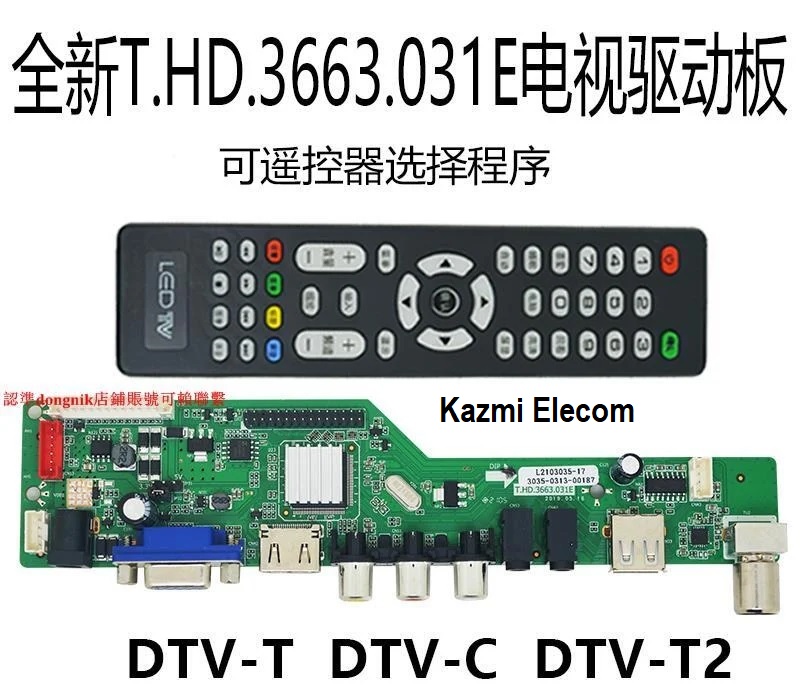

T.HD.3663.031E Universal Board

T.HD.3663.031E is a universal jumper board with multi-resolution panel screen-supported software.

Basic Info:

Model No. T.HD.3663.031E

Main Chipset:

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Tuner:

Sound:

Bin Name:

T.hd.3663.031E

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Copy the Required Firmware/software into FAT32 USB Disk
Plugin the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator led stops flashing
Done. Unplug the U-disk (It will take a max half min to upgrade firmware)

Factory Service Mode:

Menu+1147

Resolution Code:

  • 1920×1080 INPUT 9006
  • 1366×768 INPUT 9003
  • 1280×768 INPUT 9012
  • 1280×1024 INPUT 9001
  • 1440×900 INPUT 9004
  • 1440×1050 INPUT 9013
  • 1600×900 INPUT 9008
  • 1600×1200 INPUT 9007
  • 1680×1050 INPUT 9005
  • 1024×600 INPUT 9014
  • 1024×768 INPUT 9002
  • 1024×800 INPUT 9011
  • 1920×1200 INPUT 9009

Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download your required resolution firmware/software and then extract it, you will get the folder. Now copy the files to USB or write flash by a programmer. For more Details about the download process watch the video Click Here

T.HD.3663.031E Firmware All resolutions Free Download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
