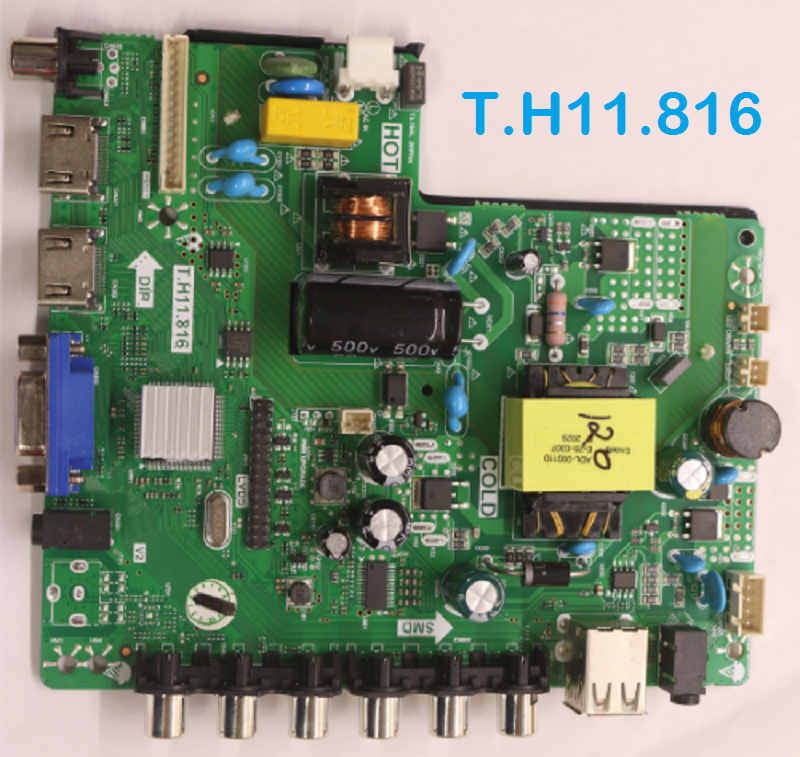

T.H11.816 LED TV Board

T.H11.816 is a universal LCD/LED TV Controller Board.

Basic Info:

Model No. T.H11.816 (Combo Board)

Main Chipset: Hi3731 V11

LED Backlight: 25-48w 34-54v

Display Format: up to 1920×1080

Panel Supported: 26″ t0 39″

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220V

Maximum Current: 3000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Factory Service Mode:

Input+336

Resolution Code:

Input+03661 for 1366×768

Input+03662 for 1920×1080

Multi-Remote Code:

MENU+000 for SONY Remote
MENU+888 for SAMSUNG Remote
MENU+999 for LG Remote

Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download T.H11.816 Firmware Files:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

Here are below T.H11.816 firmware for free download:

• T.H11.816_Multi-Resolution_Dump
