STV59-F11H Firmware Free Download

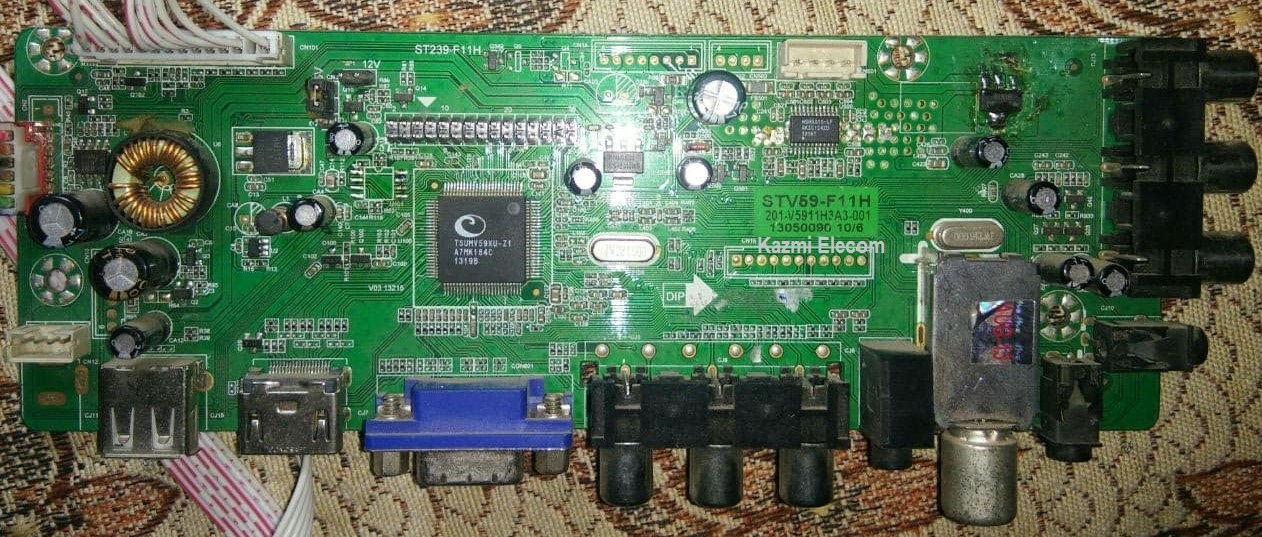

STV59-F11H LED TV Board

STV59-F11H is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080 but is the best fit for HD panels. STV59_F11H is a non-combo board means the main power supply and LED backlight driver board are required separately. It has dual AV ports. STV59-F11H firmware files are given below for the technician’s support.

General Specifications:

Brand/Mark: China Universal

Model: STV59-F11H, ST239-F11H

Main Chip: TSUMV59XW-Z1

TV System: PAL\SECAM\NTSC

Product: LED TV

Input Voltage: 220V AC

MAX Backlight Watt: 35W

Backlight voltage: NA

Resolution: up to 1366×768/1920×1080

Firmware Type: USB Upgrade and Backup Dump

Firmware Name: MERGE.bin

Service Menu:

Source/Input 2580

Note: The following is given STV59.F11H firmware is dump backup and USB upgrade files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download STV59.F11H Firmware Files:

Download the following given STV59.F11H firmware and then extract it you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here

STV59-F11H firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	STV59-F11H_1366x768_HD TV_Backup_Dump	Download
2	STV59-F11H_1366x768_Intex_Backup_Dump	Download
3	STV59-F11H_1366x768_LED1601 MEPL_USB	Download
4	STV59-F11H_1920x1080_EGO_Backup_Dump	Download
5	STV59-F11H_Intex LE23HDR06-ME13_USB	Download

For video tutorials, visit “Kazmi Elecom” my youtube channel.
