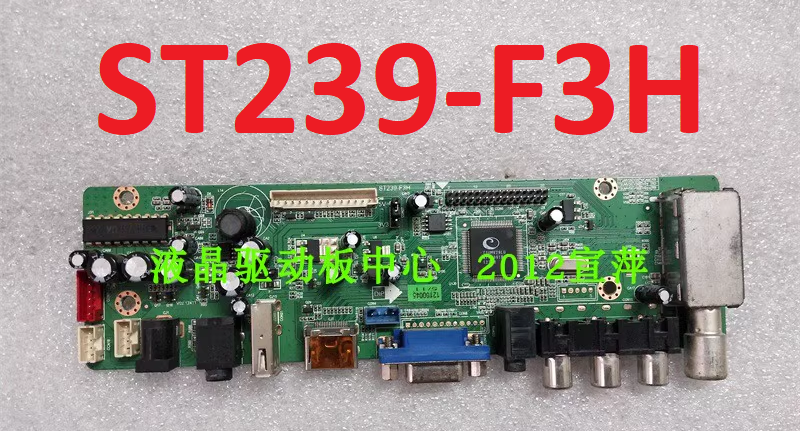

ST239-F3H Universal Board
ST239-F3H is a multi-purpose LCD controller board, it is suitable Asia market, and it is designed to support a FULL HD LCD panel. ST239 F3H can support PC-RGB, HDMI/S-Video (option), AV/YPBPR (Option), USB, VGA, and TV signal input. It can also support Earphone output.
Basic Info:
Model No. ST239-F3H
Main Chipset: TSUMV59XU-Z1/TSUMV29
Trademark: Universal
Display Format: up to 1920×1080
SPI Memory: 2/4MB
Sound IC: 1517P
Bin Name: .bin
Firmware Type: USB Bootable
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (.bin) to the U disk based on your screen size.
Step 3: Connect the U disk with the Mainboard
Step 4: Connect the Keyboard and TV Mainboard
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu 1147
Note: The following given Software is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
ST239-F3H Firmware Free Download Here :
- ST239.F3H V29-1024×768-USB
- ST239.F3H V29-1280×1024-USB
- ST239.F3H V29-1366×768-USB
- ST239.F3H V29-1400×1050-USB
- ST239.F3H V29-1440×900-USB
- ST239.F3H V29-1600×900-USB
- ST239.F3H V29-1600×1200-USB
- ST239.F3H V29-1680×1050-USB
- ST239.F3H V29-1920×1080-USB
- ST239.F3H V29-1920×1200-USB
