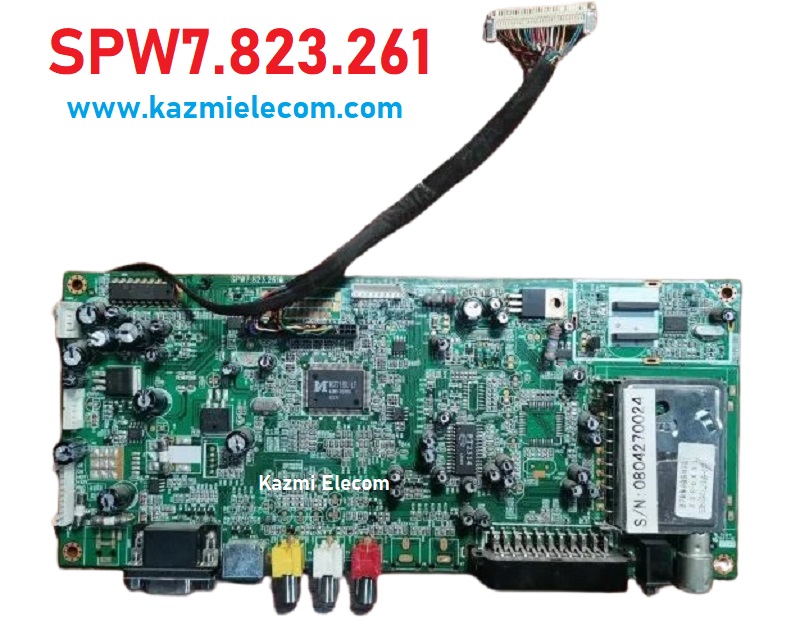

SPW7.823.261 LCD TV Board
SPW7.823.261 is a simple ATV Driver Motherboard intended for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. It is designed to support Full HD LCD/LED Panel Screens. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is built into this motherboard. This board has all the features and connectivity ports as per the latest requirements like USB interface, PC input, Component Input, TV, and Scart.
Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. SPW7.823.261 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: SPW7.823.261
Main Chip: MST7188U-LF
Product: LCD/LED TV
LED Backlight: NA
EEPROM: 24C32
Flash IC: EON25F20
Sound Chip: BL6217
Tuner IC: CDT
Screen supported: 15-24 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Firmware Name: NA
Firmware Type: Backup Dump
Service Code:
Source/Input
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
MST182VG V5.0 firmware for free download:
