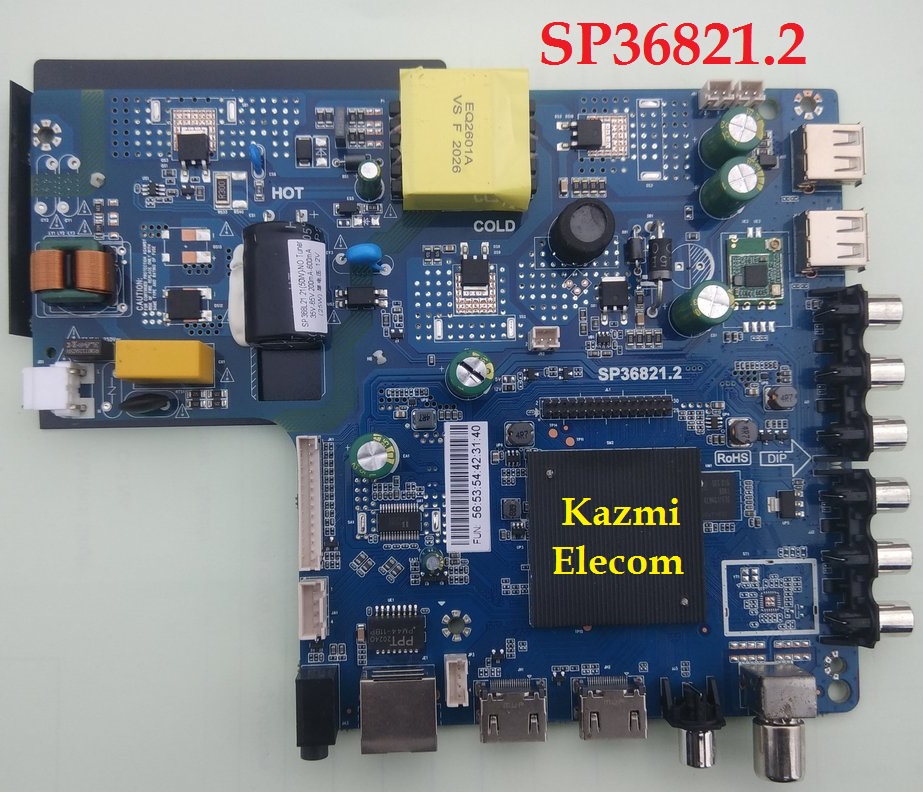

SP36821.2 Android Smart Board
SP36821.2 S368A1.5 is a Full HD resolution 1920×1080 smart board with the latest Android version of 9.0 pie. SP36821.2/S368A1.5 is universal with a DC supply and good audio output. SP36821.2 S368A1.5 can support many panel screens from 14 inches to 55 inches with the best picture quality. S368A1.5 has multiple connectivity ports like AV, Dual HDMI, USB, and Digital Tuner input. Its special features are the Mirroring option, WiFi support, and inbuilt Apps. S368A1.5 firmware files are given below for the technician’s support.
Resolution codes are built into the given software and resolution code details are given below for the user. It means no need to install separate software for HD or Full HD resolution. The user can change the resolution by the given code.
General Specifications & Features :
Brand/Make: LCD/LED 2K Smart Driver Board
Model: SP36821.2
Supported Resolution: 1920×1080 FHD
Screen Format: 16:9
Chipset: MT9255
Platform: MT5862
Operating System: Android 9.0
CPU: ARM Cortex-A53 quad-core
GPU: Mali-400
RAM: 1Gb
ROM: 8Gb
Sound Output: 5Wx2
Transmission: DVB-T2
Video System: PAL/SECAM
Backlight Voltage: 35V to 65V
Backlight Current: 200mA to 700 mA
Backlight Power: 65W
AC Input: 220V
Firmware Name: VS_MT9255_1G.bin
Firmware Type: USB Upgradeable
Service Menu Code: Menu 815
Resolution Code: FHD 03771 & HD 03772
Logo Change Code: Input 5188
Logo Name: vs_cus_logo.jpg
Note: The following software is provided for Technician support. Kazmi Elecom Team is not responsible for any damage or loss caused by uploading or downloading the firmware. If you are new and do not have enough knowledge of loading or installing software or firmware or dumping files, then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
SP36821.2 firmware files for free download:
SP368A1.5 or SP36821.2 k software same hai kya
apne SP36821.2 k link me SP368A1.5 soiftware de rakhe hai
yes same hy
Where can I purchase the S36821.2 Android smart board ?
Sp36821.2 bord me sa368a1.5 software kese download or install Karen iska video hai to uska link bhej de
Not available
sp368t21.5xw.480ma 1366×768
sir how to hit resolution code…?
Sir, I want SP36821.2 software.
Please send me.
Sir software 68℅stoped and tv goes standby and it doesn’t on automatically I will power on the TV. Pannel resulation as changed sir and the given resulation code also doesn’t work any more sir
try again to boot from usb. change usb disk
Sp36821. 5 software need
Please send me sir sp3682 1.2 software
SP36821.2 un open service mode
Sir, After uploading the software remote stops working. When I check the text file it shows the Model no V00G936821220006000 AND MY TV HAS MODEL NO E00G936821223006000. Is this difference causing the problem. Is there any solution for that.
Thankx
Tarun Bhagirath, Chandigarh, Punjab
Yes, same here. My remote is not working.
Please let me know if resolved.
Vai amer sp36821.2 boad ar 1920×1080regulation software lagba. Daban places
Bhai mujhe sp36821.5 ka software chahiye
1366*768
Smart tv 40 inch
Mainey bahut sare software download karke dekh liye par tv ne support hi nahi kiya
Meri tv 1gb.ram 8gb.rom hai
Please bhai
iska nai hy mere pas. apko mile to share karna please
Sp36821.5 ka software chahiye mujhe please vejiye
1980*1080 resulation code not work….
help
for code or fhd fimwere
1920/1080 Resulation code not support please support me
sp36821.5E
Need full hd software of above card (SP36821.5E)
NA
I am new to download and upload software for 43″ Tv with SP36821 mother board. How can i do please explain me. Actually I am replacing TP.ATM30.PB801 board, with this Android SP36821 board.
https://www.kazmielecom.tech/how-to-load-firmware/
Sp36821.5 frimware update ..pls
update not available
Sp36821.5 firware update pls..my android tv logo freeze after auto power off..pls help me
First, try to hard reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Otherwise, load firmware:
https://www.kazmielecom.tech/how-to-load-firmware/
Sir all key useed ..but not recovery screen found..
then load firmware
Sir im using SP368La1.5 in your firmware..tv open sound comes bùt display screen blue ,green,red,white colors indicates ….what i do
..so pls i need sp36821.5 firmware ..
resolution mismatch
So i what will do sir
Sir i need sp36821.5 512m 4gb firmware..pls help me
i need sp368212.2 software…….u said that sp368212.5 is same with the software which i mentioned. the software is not working is there any alternative to that.
sp36811.5 software
iska nai hy
SP 36811.2 And SP 36811.5 software same hai Sir ji
main chipset same hy
I want
tp.sk513s.pb802
Please post it
Sp36821.5 software…..
Sr sp36821.5 resolution cod bta iye srji mach nhi ho raha प्लीज
HD 03451
FHD 03452
sir i need SP36821.2 FHD resolatio software please sir arrange kre
this is multi resolution software
