SP36811.2 Firmware Free Download

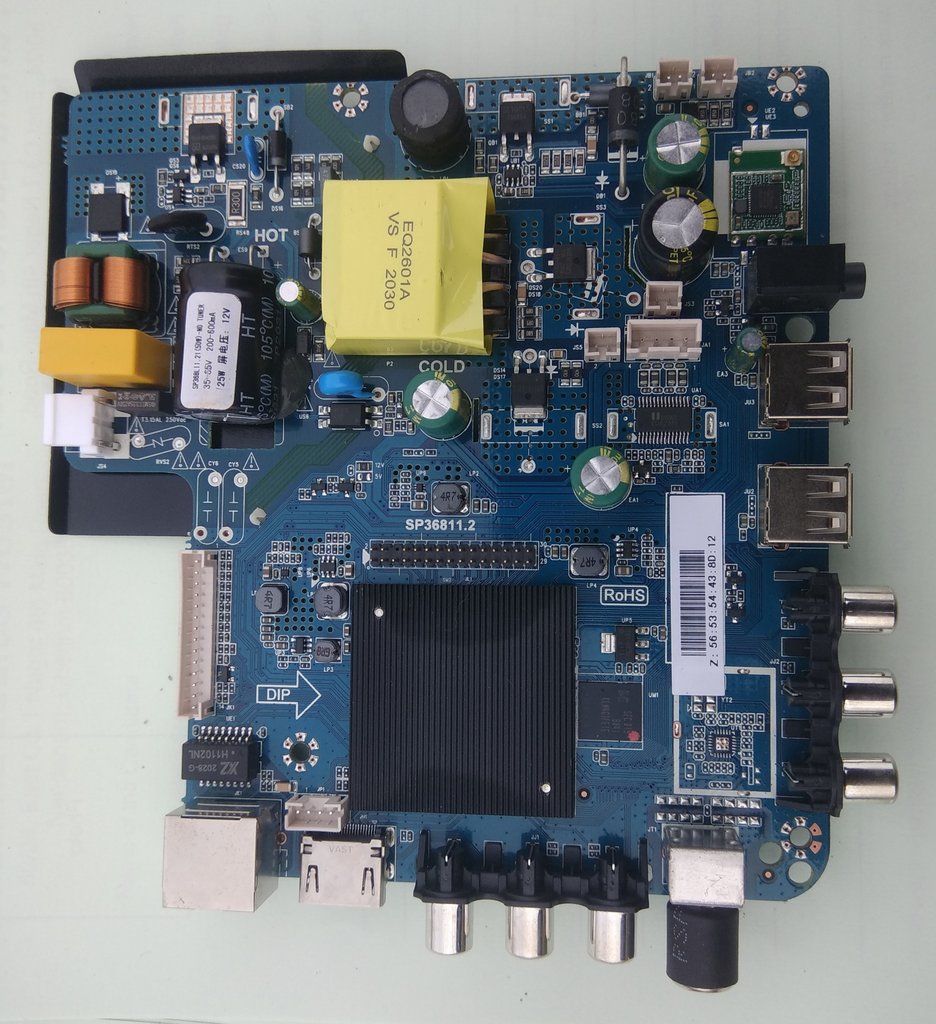

SP36811.2 Universal Combo Board

SP36811.2 is a Smart Wireless Network TV Driver Board specially designed as Universal LCD LED Controller Board For Android WI-FI ATV functions with inbuilt software. This is suitable for all HD and FHD LCD/LED panels. This Intelligent Network TV board has a special feature of Android and ROM storage capacity. SP36811-2 Supports RJ45 network signal, USB 2.0, HDMI 1.4, and TV.VGA, AV input, and earphone output.

SP36811_2 Built full-featured browser and support for HTML5 web page format, providing the fun of browsing the web and watching a video at random. It also supports surfing the internet with a wireless mouse and keyboard. The Special Feature is No need to Load Software to change the Resolution. Screen resolution can be changed by a special Code with Remote Control.

General Specifications:

Brand/Mark: LED TV Main Board (Android WIFI Network Drive Board)

Main Board Model: SP36811.2

OSD Language: Multi-Language

TV Signal: ATV/DTV (Optional)

Input Interface: PC / VGA / HDMI / TV / Network / USB / TF / Dual AV

Panel Voltage: 5V/12V

Screen Supported: 17-65 inch

Resolution Supported: 1920×1080

OS: Android 4.4

CPU: 1.5GHz (ARM Cortex A7 double Core CPU)

GPU: Multi-core Mali -400MP2

Ram: 512Mb/1Gb

Rom: 4 Gb/ 8 Gb eMMC

Flip/Mirror Mode: Yes

Display/Boot Logo: Yes

Backlight Value: 35-55V (25-45W)

Backlight Current: 200-600 mA

Power Input: 220v AC

Power Consumption: 75W

Power Rating: 12V/4Amp DC

Firmware Name: VS_MT9255_512M.bin

Firmware Type: USB Boot

Product User: MEPL, Mediatek

Service Code:

Input/Source 815

Resolution Code:

Input/Source 03772 for 1366×768

Input/Source 03771 for 1920×1080

How to Load Software:

1. Transfer the required resolution file into USB Disk
2. Plugin the USB Disk into Main Board
3. Power on the board
4. Wait until the red light starts flashing
5. Note: Do Not Cut the power during the Flash burning process

Note: Following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware Files:

Download your required version and then extract it you will get the folder. Now copy the bin file to USB. for More Detail about the download process watch the video Click Here

Here are below SP36811.2 firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	SP36811.2-HD-FHD-512M-4G-MEPL.part1	Download
	SP36811.2-HD-FHD-512M-4G-MEPL.part2	Download

Firmware Name:

SP368L11_21_50W-MEPL_HD_FHD_zeasn-MEPL_cus-WXGA_LG32_LC320EXN_Mirror_off-00BF_007F_02FD_19E6-32key_350MA_SP368L11_21-233_350mA-NEW_PQ-smart-False-AN_9-2020-11-23-13h-19m-12s.rar

For video tutorials, visit “Kazmi Elecom” my youtube channel.
