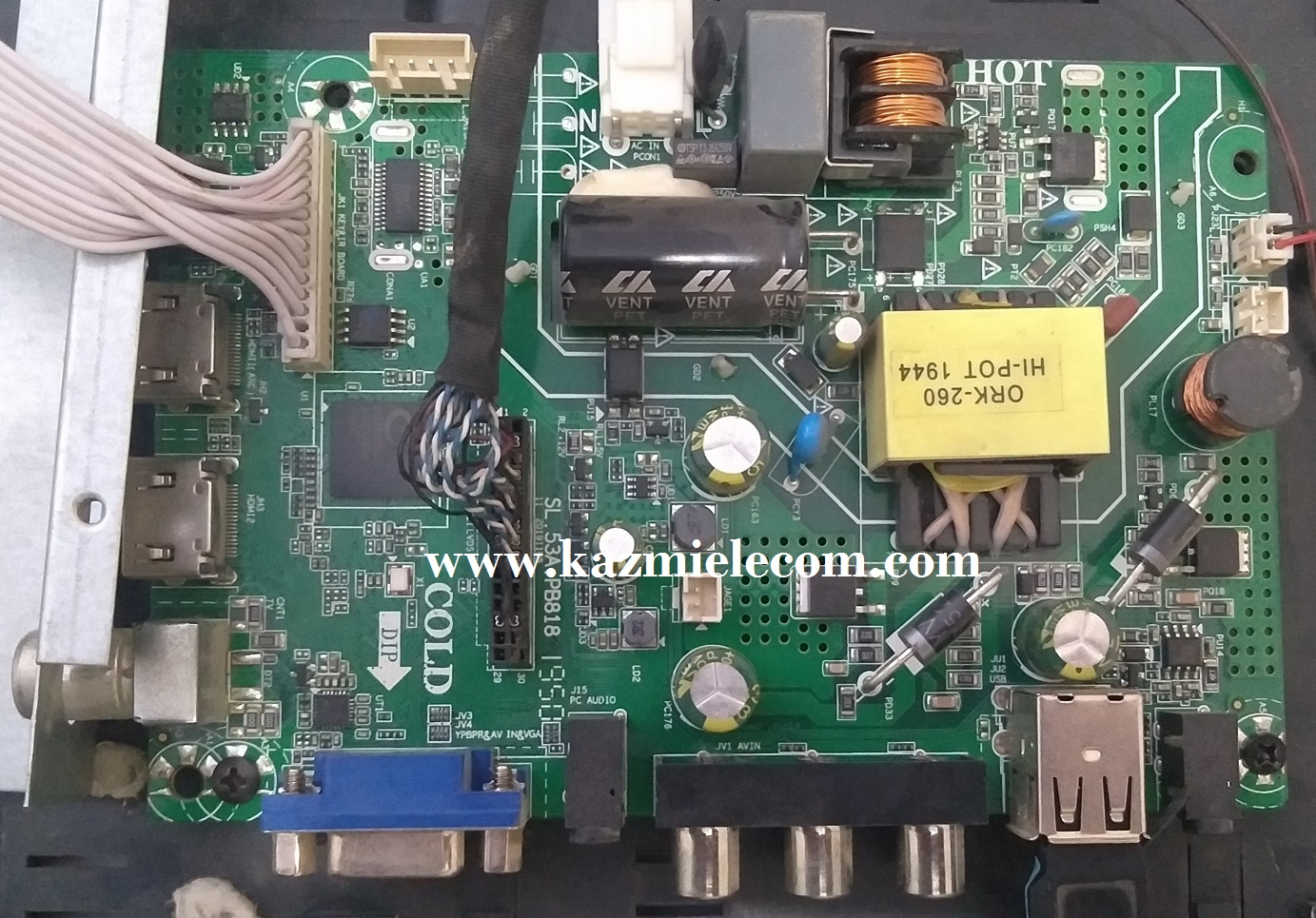

SL.53A.PB818 LED TV Board

SL.53A.PB818 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 32-inch to 39-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrade as well. SL_53A_PB818 has the HDMI ports support 1.4 and its HDCP support 1.1. SL-53A-PB818 is compatible with Non-HD and FHD LCD/LED panel screens. SL.53A.PB818 software collection is given below for free download. If you are facing any issue during firmware installation then visit and read here first.

General Specifications:

Board Make: China

Board Model: SL.53A.PB818

Main Chipset: TSUMV53

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V / +3.3V DC (Jumper Setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Firmware Type: Backup Dump

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.

How to Download SL.53A.PB818 Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

SL.53A.PB818 Firmware Collection Free Download Here :



S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	SL.53A.PB818_1366x768_Dump	Download
