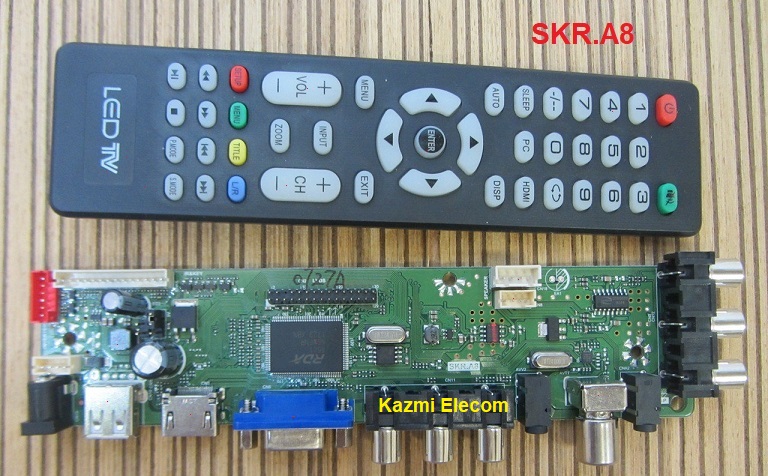

SKR.A8 Universal LED TV Board
SKR.A8 is an analog LCD/LED TV control board that is suitable for the Asia Pacific and Middle East markets. It can support more than 26-inch LCD panels with a resolution is up to 1920×1080. Its USB interface supports multimedia playback and software upgrades. Its HDMI port support 1.4 and its HDCP support 1.1. SKR_A8 is compatible with 10-32 inch screens. SKR-A8 is widescreen-supported and also has a multi-language option. SKR.A8 has a special feature called dual AV.
The VGA interface of this board is used to connect personal computers and Laptops to watch results on the big screen. A headphone output jack of 3.5mm can be used to amplify the audio output. The main input power supply for this card is 12 volt DC.
General Specifications:
Model: SKR.A8
Main Chipset: RDA8501
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plug in the U disk into the Mainboard USB port of LCD/LED TV also connect Keypad and IR
- Switch ON the power and Wait for IR indicator starts flashing and led stops flashing
- Done. Unplug the Udisk (It will take max 1 min to upgrade firmware)
Factory Service Mode:
Menu+1147
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
SKR.A8 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | SKR.A8_1024x768_General_USB | Download |
| 2 | SKR.A8_1280x1024_General_USB | Download |
| 3 | SKR.A8_1366x768_General_USB | Download |
| 4 | SKR.A8_1440x900_General_USB | Download |
| 5 | SKR.A8_1600x900_General_USB | Download |
| 6 | SKR.A8_1680x1050_General_USB | Download |
| 7 | SKR.A8_1920x1080_General_USB | Download |
| 8 | SKR.A8_1280x720_PNL_CMO27_USB | Download |
| 9 | SKR.A8_1280x768_PNL_LC260W01_USB | Download |
| 10 | SKR.A8_1400x1050_PNL_IBM_ITSX95E_USB | Download |
| 11 | SKR.A8_1600x1200_PNL_LQ150U1LH22_USB | Download |
| 12 | SKR.A8_1920x1200_PNL_LTM240CT01_USB | Download |
| 13 | SKR.A8_1280x1024_APARNA-IS MODEL_Backup Dump | Download |
SKR.A8 1920×1080
