SKR.801 Universal LCD/LED Main Board

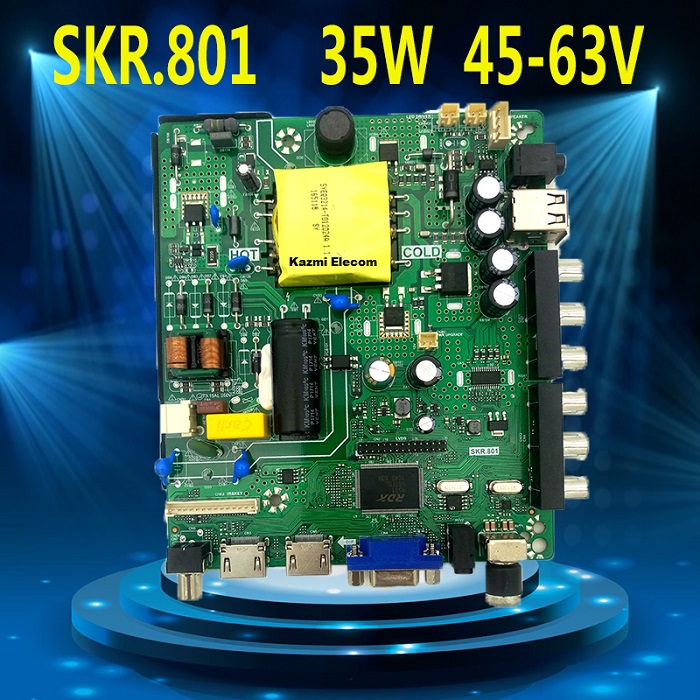

SKR.801 is a universal non-smart 30-pin LVDS motherboard. It can be fit in many universal LCD LED TV screen panels. Firmware all resolutions shared here. The most popular TV board ever with the capacity of 4 MB ROM. It has 35 watts backlight driver module that can operate 45-63-volt backlights. Its supported resolution is 1920×1080 Full HD. It can be fit for 32-55 inch screen panels.
SKR.801 motherboard is equipped with several connectivity interfaces for user convenience such as dual USB, Dula HDMI, RF tuner for Analog TV signal input or cable TV, VGA port of PC and laptop connectivity, dual RCA, and headphones output jack.
Specifications:
Brand/Mark: China Universal
Model: SKR.801

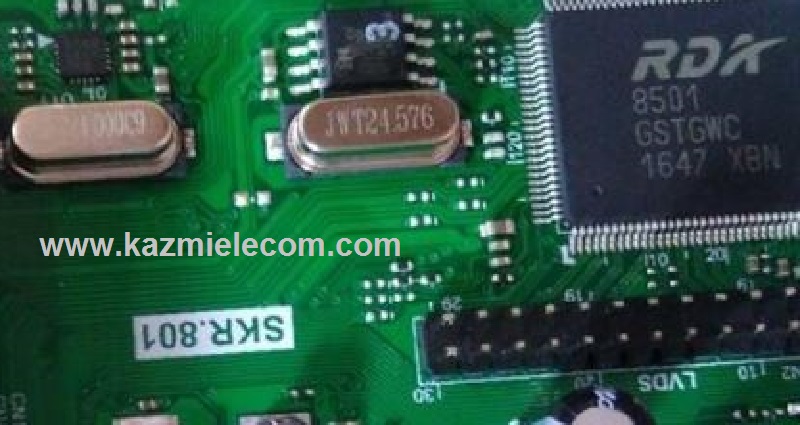

Main Chip: RDA8501
Product: LCD/LED TV
Resolution: Up to 1920×1080
Panel: CMO, Universal, General
Brand/Mark: Universal Board
LED Backlight: 45-63V
Flash IC: 4Mb
Sound Chip:
Tuner IC:
Screen supported: 32″ t0 42 inch
Panel Voltage: 5V, 12V
Power Input: 220V AC
Firmware Name:
Firmware Type:
Service Code:
Menu 1147
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and lack knowledge of loading or installing software/firmware or dump files, read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
SKR-801 firmware for free download:
| S.NO. | BOARD NAME | DOWNLOAD LINK |
|---|---|---|
| 1 | SKR.801_1366x768 Samsung Logo | Download |
| 2 | SKR.801_1366x768 Sony Logo | Download |
| 3 | SKR.801_1920x1080 Samsung Logo | Download |
| 4 | SKR.801_1920x1080 Sony Logo | Download |
| 5 | SKR.801_1366x768_General_USB | Download |
| 6 | SKR.801_1920x1080_General_USB | Download |
My LCD TV IS ON STANDBY HOW LOAD SOFTWARE
copy the required software into u disk and plugged it in tv then power on and wait until the led light stop blinking
bro need mirrior srk 801
bro need mirrior srk 801 dansat 48 led tv
i dont have for dansat
Sir update the link please there are no any softwere file
Links replaced
Sir pls tell about SKR.801 Factory service manu code
please help me SKR.801 firmware update. i tried with usb but it does not work. light does not flash.
change the USB disk and try again
tank you freea
