S368LA1.5 S368A1.5 Firmware Free Download

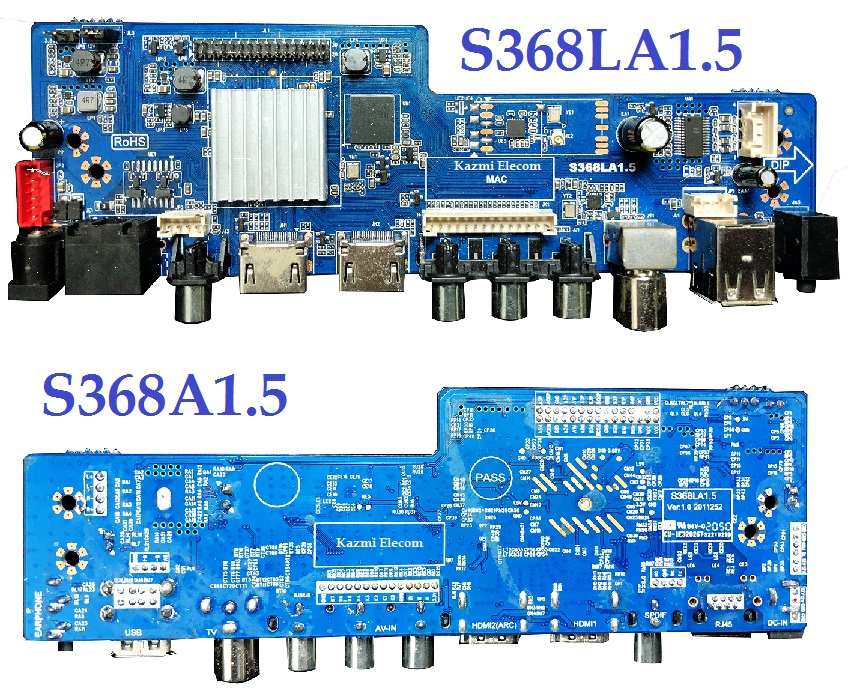

S368LA1.5/S368A1.5 Android Smart Board

S368LA1.5 S368A1.5 is a Full HD resolution 1920×1080 smart board with the latest android version of 9.0 pie. S368LA1_5/S368A1_5 is universal with a DC supply and good audio output. S368LA1.5 S368A1.5 can support many panel screens from 14 inches to 55 inches with the best picture quality. S368LA1-5 S368A1-5 has multiple connectivity ports like AV, Dual HDMI, USB, and Digital Tuner input. Its special features are the Mirroring option, WiFi support, and inbuilt Apps. S368LA1 5 S368A1 5 firmware files are given below for the technician’s support.

S368La1.5-S368A1.5-Firmware-Software

General Features & Specifications:

Brand/Make: LCD/LED 4K Smart Driver Board

Model: S368LA1.5, S368A1.5

Supported Resolution: 1920×1080 FHD

Screen Format: 16:9

Chipset: MT9255

Platform: MT5862

Operating System: Android 9.0

CPU: ARM Cortex-A53 quad-core

GPU: Mali-400

RAM: 512M/1Gb

ROM: 4Gb/8Gb

Audio Chip: CS3817BEO

Sound Output: 15Wx2

Sound IC: CS3817BEO

Transmission: ATV/DVB-T2

Video System: PAL/SECAM

Power Input: 12V DC

Panel Power: 3V, 5V, 12V (Jumper Cap Setting)

Firmware Name: VS_MT9255_512M.bin, VS_MT9255_1G.bin

Firmware Type: USB Upgradeable

Service Menu Code: Menu 815

Resolution Code: Click Here

Logo Change Code: Input 5188

Logo Name: vs_cus_logo.jpg

Tuner: AB253

Price:

The price of this Universal Smart Android LED TV Board is approximately USD 25 but keep in mind that the price should be varies according to the dollar rate in Pakistan. Convert the dollar rate in rupees to get the approximate price in PKR. you can also convert the dollar rate in Indian rupees to get the local currency value. This price is for 512+4GB 1+8GB may be a higher value than this.

Supported Resolutions:

  • 1280×1024
  • 1366×768
  • 1440×900
  • 1440×1050
  • 1600×900
  • 1680×1050
  • 1920×1080
  • 1920×1200

Note: The following is given software for Technician’s support. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.

How to Download S368LA1.5 Firmware Files:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

S368LA1.5 firmware files for free download:

Kazmi-Elecom

S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1S368LA1.5-1366x768-512M-4G-USB.part1Download
S368LA1.5-1366x768-512M-4G-USB.part2Download
2S368LA1-1920x1080-512M-4G-USB.part1Download
S368LA1-1920x1080-512M-4G-USB.part2Download
3S368A1.5-Multi-Res-1G-8G-USB.part1Download
S368A1.5-Multi-Res-1G-8G-USB.part2Download
4S368A1.5_Multi-Res_512M_4G_USB.part01Download
S368A1.5_Multi-Res_512M_4G_USB.part02Download
S368A1.5_Multi-Res_512M_4G_USB.part03Download
S368A1.5_Multi-Res_512M_4G_USB.part04Download
S368A1.5_Multi-Res_512M_4G_USB.part05Download
S368A1.5_Multi-Res_512M_4G_USB.part06Download
S368A1.5_Multi-Res_512M_4G_USB.part07Download
