RU10.671 Software Free Download

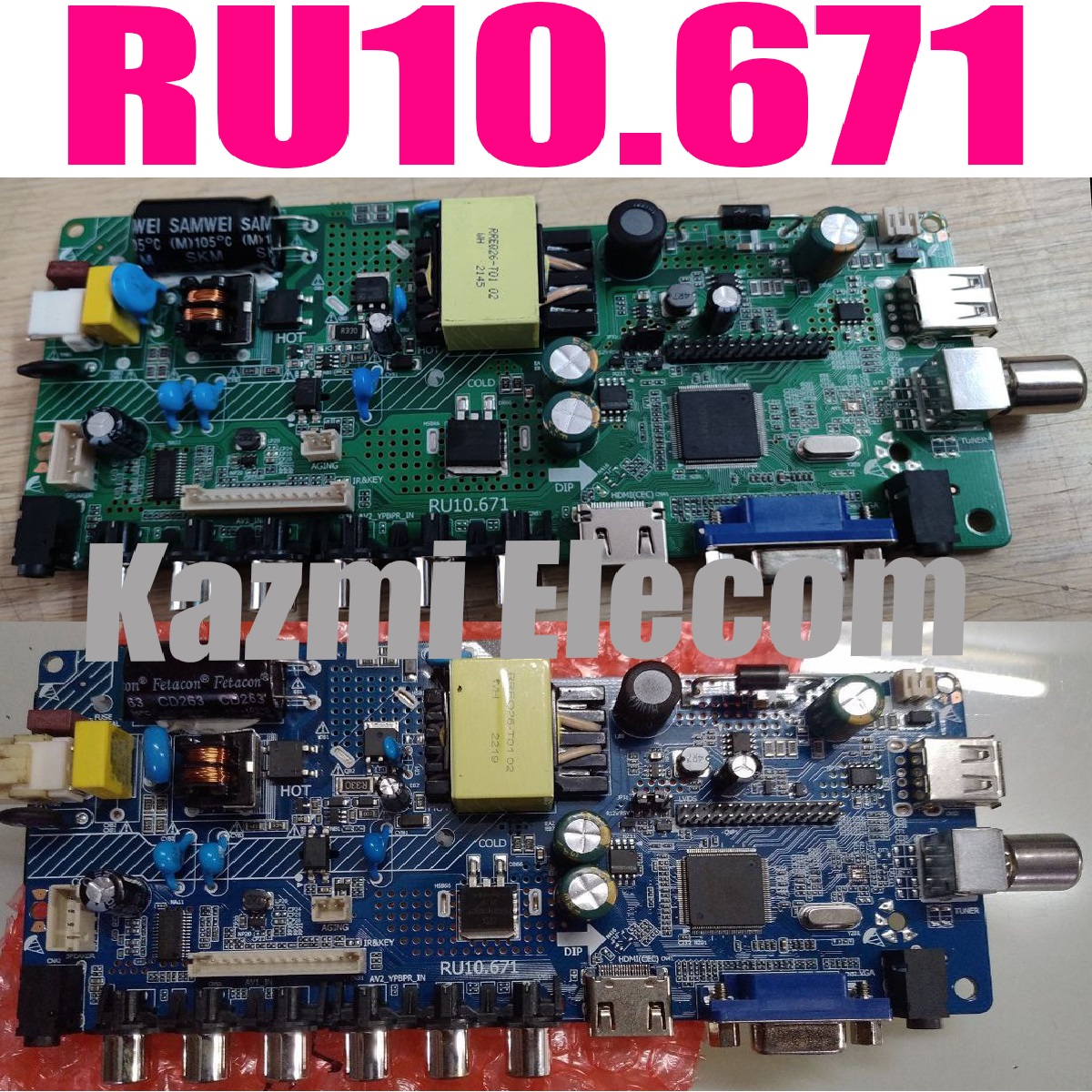

RU10.671 Universal Combo Board

RU10.671 is a universal ATV LCD/LED TV Board that is designed for 19 to 26-inch screen panels with full HD 1920×1080 screen resolution. RU10_671 is a combo ATV board that is the inbuilt power supply, LED backlight Inverter board, and ATV Module in a single PCB card. RU10-671 is an efficient board for small LCD/LED panels. RU10.671 is a universal LCD/LED controller board that is compatible with any panel.

Basic Info:

Model No. RU10.671

Main Chipset: UTS6710-X

LED Backlight: 18 to 60V 220mA to 300mA

Display Format: up to 1920×1080

Panel Supported: 19″ t0 26″

Aspect Ratio: 4:3, 16:9 & 16:10

Multi-Resolution Codes

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohm)

Panel Voltage: 5V/12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220V

Maximum Current: 3000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

No firmware is required for the new board. Multi-resolution software is builtin into this board. if the board goes to standby then you can load a backup file with a programming tool to get the board normal and then use your required resolution code.

Factory Service Mode:

Menu+1148, Source/Input+1150

Multi-Resolution Code:

• INPUT/SOURCE 0432 FOR 1920X1080
• INPUT/SOURCE 0431 FOR 1366X768
• INPUT/SOURCE 05432 FOR 1920X1080
• INPUT/SOURCE 05431 FOR 1366X768

Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.

How to Download Firmware Files:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

SKR.671 Firmware Multi Resolutions Free Download:

• RU10_671_Multi-Resolution-Dump

For video tutorials, visit “Kazmi Elecom” my youtube channel.
