RSG7.820.6484 Firmware Free Download

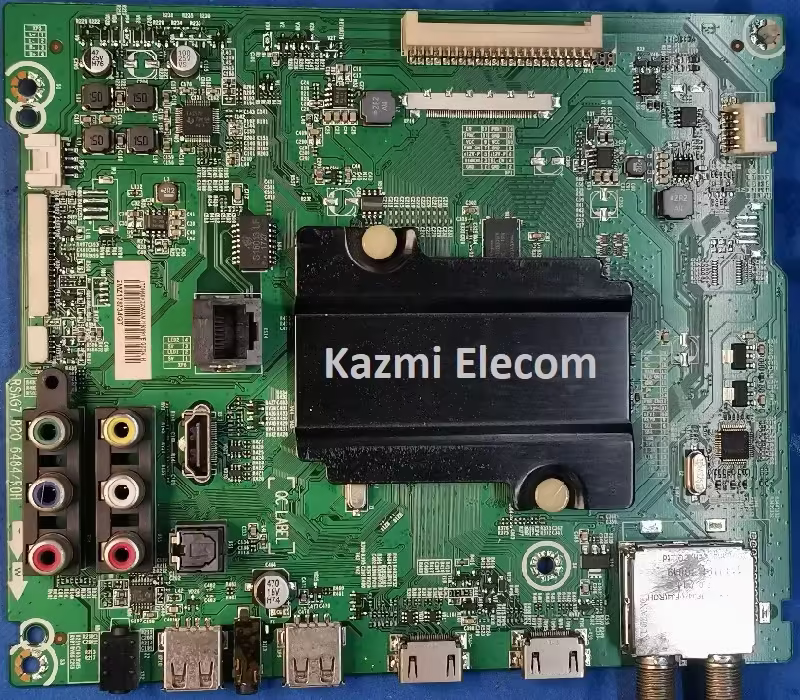

RSG7.820.6484 LED TV Board

RSG7.820.6484 is a smart LED TV motherboard. Its maximum supported resolution is 1080P 1920×1080 Full HD. It has an inbuilt VIDAA smart operating system with more than 300 applications. YouTube and Netflix are also inbuilt which can easily be accessible with one click through a remote control. It has 4 GB of storage memory. With a Quad-Core processor, the response speed of all functions is very speedy and outstanding. This board is a Non-Combo board. This board has all the necessary user connectivity interfaces such as LAN (RJ45), SPDIF, Component Input, Headphones Output, etc.

Download Here

RSG7.820.6484 has multiple input/output user connectivity interface such as dual USB input ports that allows access to the multimedia (MP3, JPEG, etc) from USB Flash Drives and Digital Cameras to access photos, movies, and music files. Users can also connect external hard disk drives and use them for software upgrades. It has HDMI inputs supporting digital audio and video in a single connection. With three HDMI inputs, the user can connect several high-definition sources such as an HD tuner, Blu-ray players, gaming consoles or digital audio/video players, Media Players, PlayStations, etc.

RSG7.820.6484 General Information:

Board Model: RSG7.820.6484/ROH

Processor: MediaTek

CPU: 1.0GHz

GPU: Dual-Core MALI-400

Operating System: VIDAA6

Android Version: NA

Resolution: 1366×768/1920×1080

Audio Power: 2x8W (16 watt 8 ohm)

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 3

CI: No

PC Input: No

Component: Yes

RJ45: Yes

Analog Tuner: Yes

Digital Tuner: DVB

Wifi: Yes

Mira-Cast: Yes

SPDIF OUT: Yes

Memory (RAM): 512 Mb

Storage (ROM): 4 GB EMMC Flash

EMMC:

Power Rating: 100V~240V 50/60Hz

Power Consumption: 130Watt

Firmware Name: NA

Firmware Type: EMMC Backup Dump

Product User: Hisense

RSG7.820.6484 Technical Specifications:

Operative System VIDDA6
Browser Odin 88
Display 1366×768 and 1920×1080
RAM/ROM 512 MB /4G Byte ROM
HDMI ports 2
MHL enabled Yes
HDMI Support MHL & ARC
Ethernet sockets 1
USB ports 2
USB supports Audio, Video, Image
Cable Port Yes
SPDIF Yes
A/V IN Yes
PC Input No
Headphone speaker output ports 1
Refresh rate 60 Hz
Resolution 1080P
Image formats supported BMP, GIF, JPEG, PNG
Analog TV reception formats PAL, NTSC, SECAM
Video formats supported MKV, MPEG, MPEG-1, MPEG-2, MPEG-4
Upscaling No
Audio formats supported AAC, AC3(Dolby Digital), MP2, MP3, PCM
Audio Features 5 Band Equalizer, Auto volume leveler: Balance, Dolby Atmos
No. of speakers 2
Total speaker output 16 W
Output per speaker 8 W
Sound type Mono
Bluetooth Optional (not builtin)
Processor Type Quad Core
Screen Format 4:3 / 16:9 / Auto / Zoom 1 / Zoom 2
Inbuilt apps Yes
Wi-Fi Yes
Internet Link 2.4GHz WiFi 802.11 b/g/n 2T2R, Ethernet Network
Remote Type RF (Radio frequency)
Miracast screen mirroring support Yes
Voltage requirement 100 – 240V 50/60HZ
NETFLIX: YES
YOUTUBE: YES
OPEN BROWSER: YES (webkit based no plugin support)
TWITTER: YES (Opera Store based app)
ACCUWEATHER: YES
PICASA: YES
OPERA STORE: YES
GINGA: YES (ginga-ar based on NCL-Lua)
Hisense REMOTE CONTROL APP: YES
ANYVIEW STREAM: Yes (file sharing function over the network from cell phones, computers, etc.)
ANYVIEW CAST: YES

How to Write RSG7.820.6484 EMMC Backup:

Download the given RSAG7.820.10229 EMMC backup shared in this post below
Note the EMMC Pinouts in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following RSG7.820.6484 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
