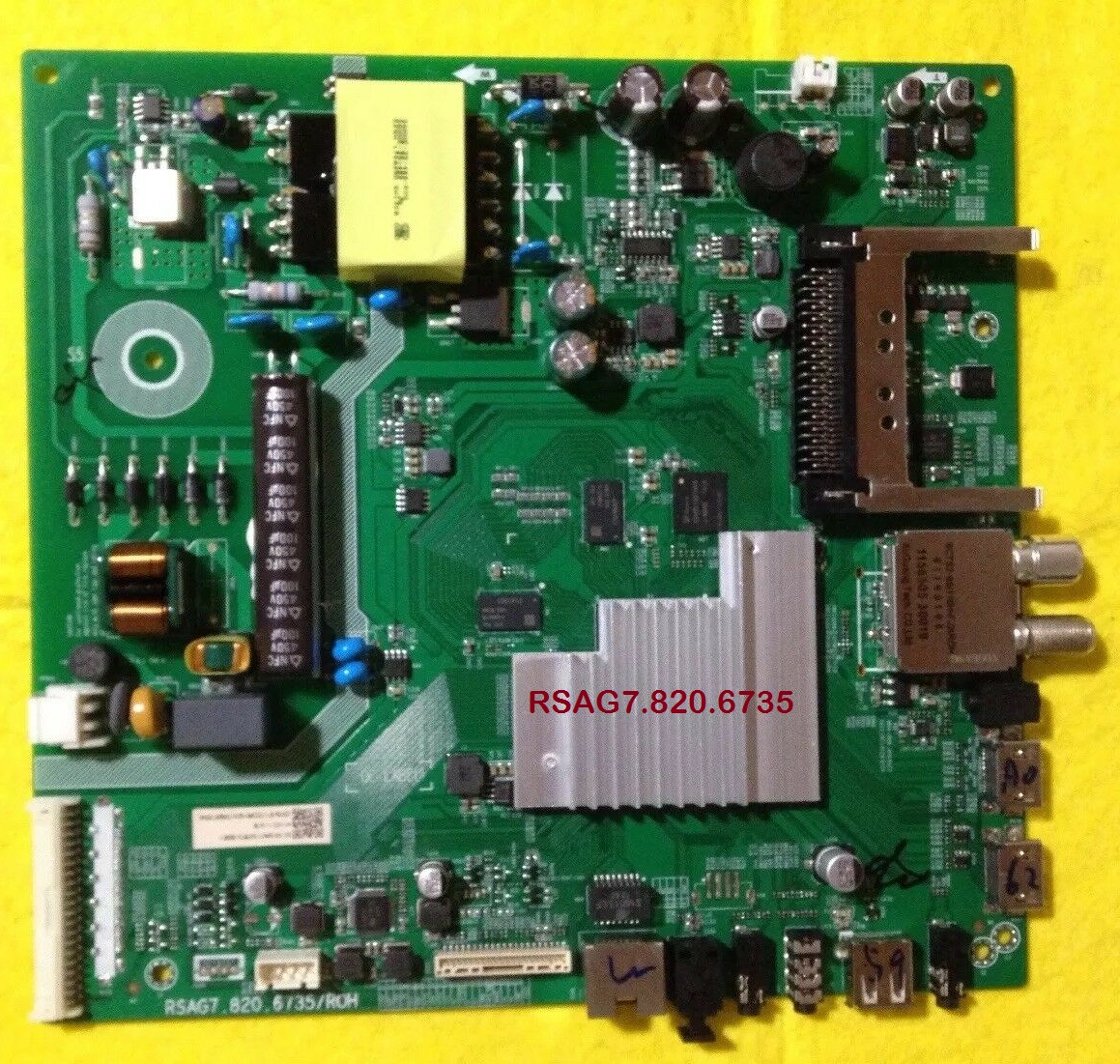

RSAG7.820.6735 FHD LED TV Board
RSAG7.820.6735 is a non-combo HD&FHD DVB LED TV Android Board. It has DVB-S2, DVB-T2, and DVB-C (MPEG2) with a supported FHD resolution of 1920×1080 and a Refresh Rate is 50/60 hertz with a smooth motion rate of 200 SMR. It has multiple HDMI ports to connect to a set-top box, Blu-Ray players, and gaming console, and also has more than one USB port to connect to hard drives and other USB devices and play multimedia as well.
It has a Dolby Sound system that Supports 20 Watts sound output and HDR Display viewing. RSAG7.820.6735 can support the Smart TV Features as Android. RSAG7.820.6735 firmware files are given below for free of cost download to support technicians.
General Features & Specifications:
Brand: China
Board Model: RSAG7.820.6735/ROH
Display Format: FHD 1080P
Screen Type: LED
Features Format: Smart
OS Version: Android
Chipset: Mstar
Processor: Arm Cortex A7 Quad-Core
Graphic Processor: Dual-core
RAM Capacity: GB DDR3
Storage Memory: GB ROM
Screen Resolution: 1920×1080
No of HDMI Ports: 2
No of USB Ports: 1
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output: 14W RMS
Tuner: ATV/DTV
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 70 W
Firmware Type: USB Update
Firmware Name: upgrade_loader.pkg
Product: HISENSE H40M2600
Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download RSAG7.820.6735 Firmware File:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
RSAG7.820.6735 Firmware for free download:
Assalam o Alaikum sir as software k part 3 aur part 4 ke mb 12.4 hy baqi 55 mb main hain .sir wrong file please update again
w.salam. Noted. only part3. I replace it
slm this parts is expered plz replace it
all links working fine
NECESITO FIRMWARE PARA TV HISENSE H40M2600
Hello my problem was the tv stays on logo
I don’t know how it’s works using USB
First, try to hard reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Otherwise, load firmware:
https://www.kazmielecom.tech/how-to-load-firmware/
