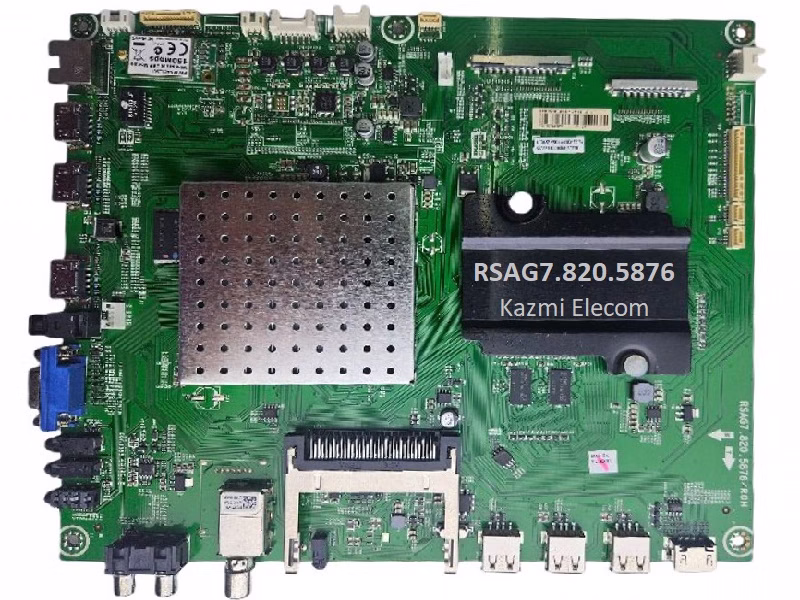

RSAG7.820.5876 LED TV Board
RSAG7.820.5876 is a non-combo UHD LCD LED TV motherboard. It has built an Opera operating system with smart features and applications with built-in WiFi support but this board is not Android-supported. It can support an Ultra High-Definition resolution of 3840×2160, with a Refresh Rate of 120 hertz, and a smooth motion rate of 200 SMR. It has four HDMI ports to connect a set-top box, Blu-Ray players, and gaming consoles, and it also has three USB ports to connect external hard disk drives and other USB devices and play multimedia audio and video files.
RSAG7.820.5867 has a Dolby Sound system that supports 20 Watts of sound output by a stereo speaker system and a High-Dynamic-Range viewing display. RSAG7-820-5876 can support the features of a Smart TV like Android. This board has a component input interface to connect analog devices, PC Input (VGA), a CI+ Interface, an RJ45 ethernet connection for internet connectivity, SPDIF output, and a headphone output jack. RSAG7.820.5867 firmware files are given below for free of cost download to support technicians.
General Features & Specifications:
Brand: China
Board Model: RSAG7.820.5876/ROH
Display Format: UHD 2160P
Screen Type: LED
Features Format: Smart
OS Version: Smart Not Android
Chipset: NA
Processor: Arm Cortex A7 Quad-Core
Graphic Processor: Dual-core
RAM Capacity: DDR3
Storage Memory: 512 MB (48-Pin NAND)
Screen Resolution: 3840×2160
No of HDMI Ports: 4
No of USB Ports: 3
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
CI+=Yes
PC Input: Yes (VGA)
Component Input= Yes
Speaker Output: 20W
Tuner: Analog (PAL, SECAM, NTSC), Digital (DVB-T, DVB-T2, DVB-C)

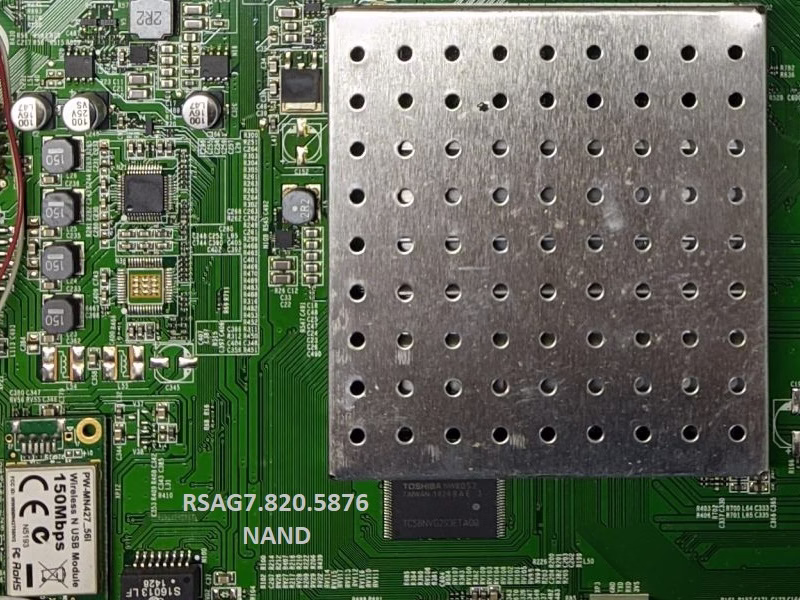

NAND MEMORY: TC58NVG2S3ETA00_N56@TSOP48
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 80 W
Firmware Type: NAND Backup
Firmware Name: NA
Product: OKEAH
Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any damage or loss caused by uploading or downloading the firmware. If you are new and lack knowledge of loading or installing software/firmware or dump files, read here first.
How to Download RSAG7-820-5876 Firmware File:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
RSAG7.820.5876 Firmware for free download:
