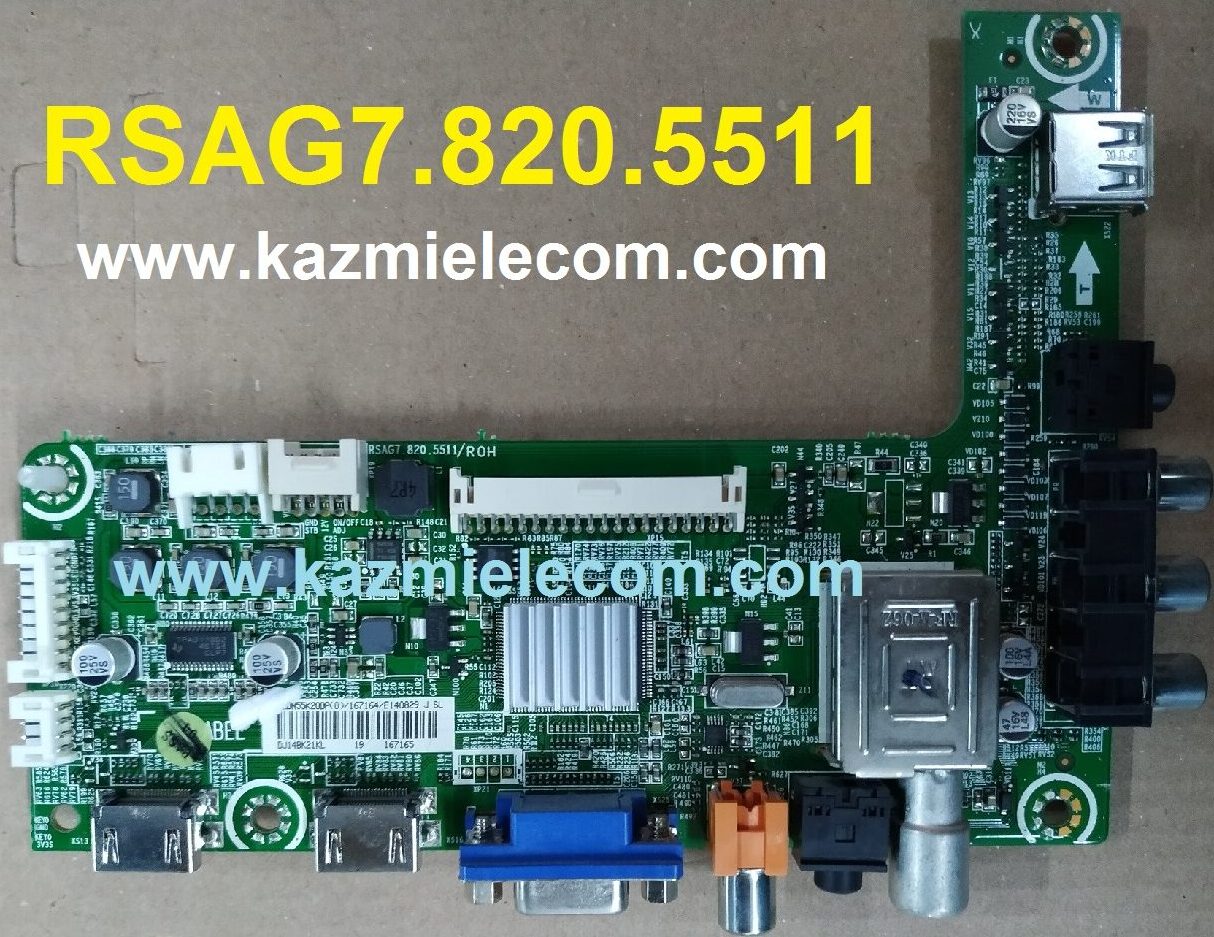

RSAG7.820.5511 LED TV Board
RSAG7.820.5511 is a non-combo HD & FHD LED TV Board. It is supported an FHD resolution of 1920×1080 and a Refresh Rate is 50/60 hertz with a smooth motion rate of 200 SMR. It has multiple HDMI ports to connect a set-top box, Blu-Ray players, and gaming console, and also have more than one USB port to connect hard drives and other USB devices and play multimedia as well. It has a Dolby Sound system that Supports 16 Watts sound output and HDR Display viewing. RSAG7.820.5511 firmware files are given below for free of cost download to support technicians.
General Features & Specifications:
Brand: China
Board Model: RSAG7.820.5511/ROH
Display Format: FHD 1080P
Screen Type: LED
Features Format: Non-Smart
OS Version: NA
Chipset: TSUMV59XUS
Processor: V59
Graphic Processor:
RAM Capacity: GB DDR3
Storage Memory: 4 Mb SPI Flash
Screen Resolution: 1920×1080
No of HDMI Ports: 2
No of USB Ports: 1
Wi-Fi Type: No
Built-In Wi-Fi: No
Ethernet (RJ45): No
Speaker Output: 16W
Tuner: ATV/DTV (DVB-C, DVB-T2, DVB-T)
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 80 W
Firmware Type: Backup dump
Firmware Name:
Product: LLOYD, HISENSE, TIT, CONDOR
Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download RSAG7.820.5511 Firmware File:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
RSAG7.820.5511 Firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | RSAG7.820.5511_1366x768_CONDOR_DUMP | Download |
| 2 | RSAG7.820.5511_1920x1080_CONDOR_DUMP | Download |
| 3 | RSAG7.820.5511_1920x1080_HISENSE_DUMP | Download |
| 4 | RSAG7.820.5511_1920x1080_LLOYD_DUMP | Download |
| 5 | RSAG7.820.5511_1920x1080_TIT_DUMP | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
