RD.8501.031A Software Free Download

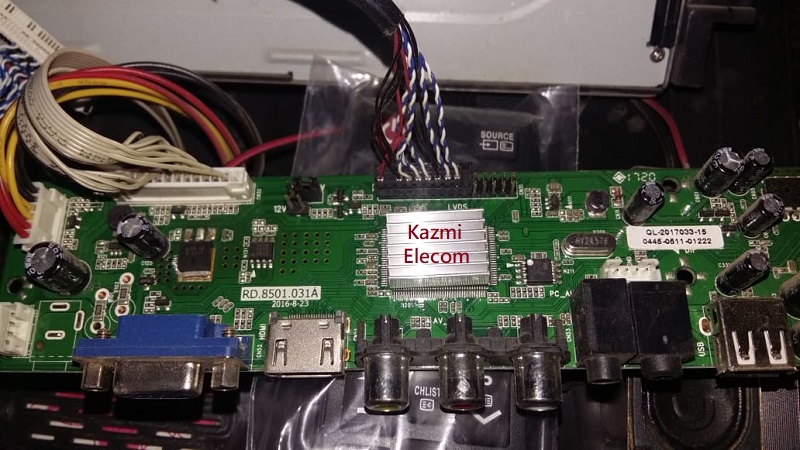

RD.8501.031A Universal LCD/LED Controller Board

RD8501.031A is a multi-purpose and energy-efficient LCD/LED TV universal control board with a single/dual 8-bit LVDS interface. RD_8501_031A supports resolution panels up to 1920×1080.RD-8501-031A multimedia playback function and software upgrade are applicable by the USB port. For video tutorials to get experience visit Here.

Basic Info:

Model No. RD.8501.031A

Main Chipset: RDA8501-XBN

Display Format: up to 1920×1200

Aspect Ratio: 4:3, 16:9 & 16:10

Board Size: 189.5 X 43 (mm)

Rd.8501.031A_Firmware

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Source/Power

Multi-Language OSD: Yes (English/French/Spanish/Portuguese/Chinese)

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 2.5 Watt (8 ohm)

Panel Voltage: 3.3V/5V/12V (jumper cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.6W (for the mainboard only)

Maximum Current for USB: 500mA

Rd.8501.031A_Software

How to Upgrade Firmware:

  1. Copy the Required Firmware/software in FAT32 USB Disk
  2. Plug in the U disk into the Mainboard USB port of LCD/LED TV
  3. Switch ON the power and Wait even IR indicator led stops flashing
  4. Done. Unplug the Udisk
  5. Note that It will take max one minute to upgrade the firmware

Factory Service Mode:

Menu+1147. For more Service Menu Codes visit Here.

RD.8501.031A Firmware All resolutions Free Download Here :

Download Button Kazmi Elecom

S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1RD.8501.031A_1024x768_USBDownload
2RD.8501.031A_1280x1024_USBDownload
3RD.8501.031A_1366x768_USBDownload
4RD.8501.031A_1440x900_USBDownload
5RD.8501.031A_1440x1050_USBDownload
6RD.8501.031A_1600x900_USBDownload
7RD.8501.031A_1680x1050_USBDownload
8RD.8501.031A_1920x1080_USBDownload
9RD.8501.031A_1920x1200_USBDownload
