Philips 32PFK5500 Firmware Free Download

Philips 32PFK5500 FHD LED TV

PHILIPS 32PFK5500 is a 32-inch (80 cm) 5500 series Full HD digital crystal clear LED TV with a supported resolution of 1920×1080 (1080 P). It has multiple input interface ports like HDMI, USB, and AV. PHILIPS-32PFK5500/12 is DVB-T/S2/C transmission functions. It has two built-in speakers with a 20-watt powerful audio output. Its firmware can be upgraded by USB interface and Multimedia playback is also available by USB. PHILIPS 32PFK5500_12 has an auto-upgrade firmware wizard option also.

Multi HDMI Inputs give a great experience to users for connecting different items like Xbox, STBs, Playstations, etc. It has a dual tuner so it can receive both digital and analog signals. PHILIPS 32PFK5500-12 firmware files are given for the technician’s support.

General Features and Specifications:

Brand: PHILIPS

Model: 32PFK5500-12

Product: LED TV

Diagonal screen size (inch): 32 inches

Panel: TPT315B5-EUJFFE

Panel resolution: 1920×1080 Full HD

Aspect ratio: 16:9

Operating System: Android

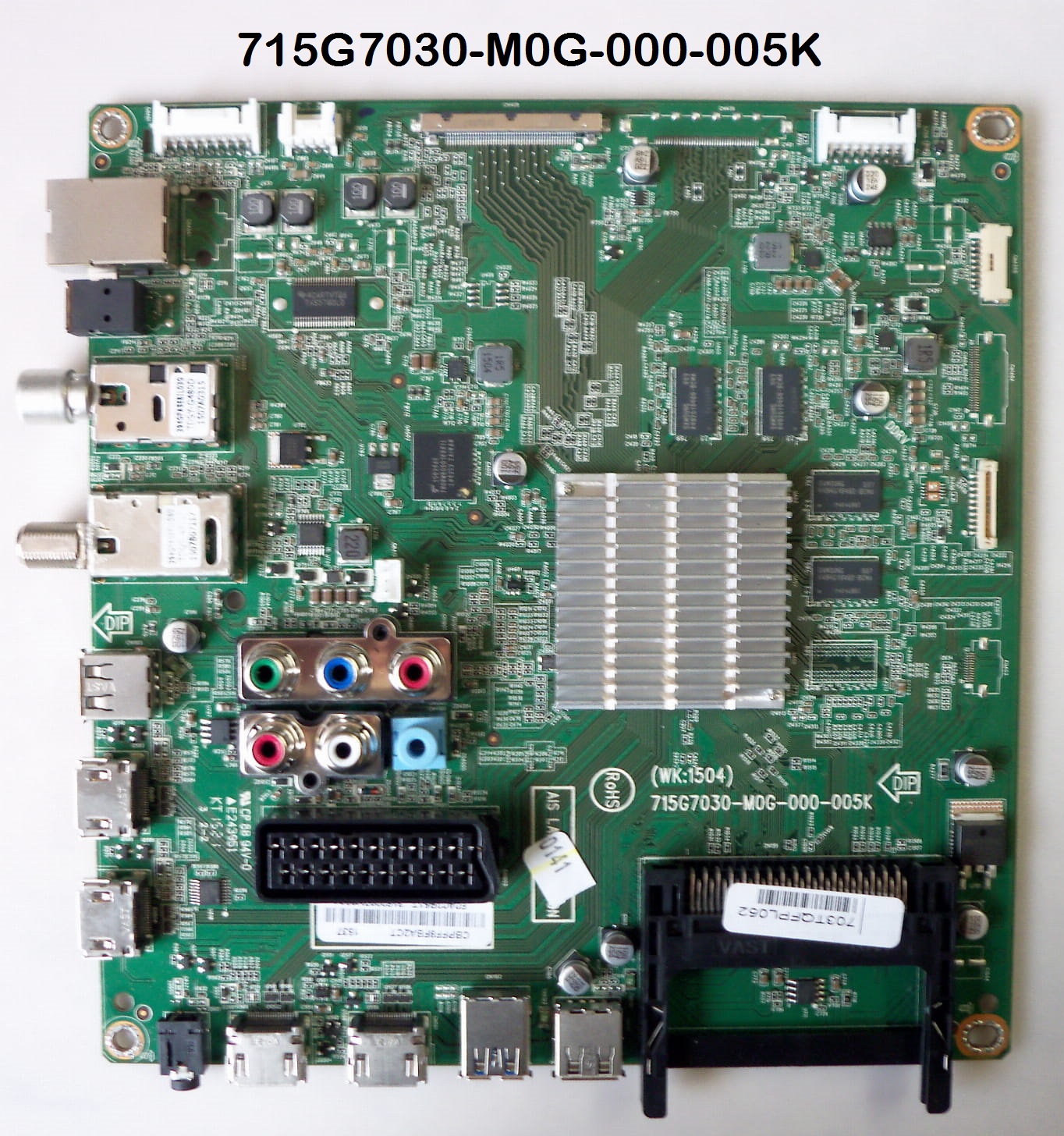

Chasis: 715G7030-M0G-000-005K

Processor Type: Dual-Core

Memory: 8 Gb

Built-In DVD: No

Tuner: DVB-T/C/S/S2

Video System: PAL/SECAM/NTSC

Audio Out Power: 20W (2 x 10W)

Main Power Input: AC 110 – 240 V 50/60Hz

Power Consumption: 65 W

Standby Power Consumption: < 0.3 W

Firmware Type: USB Boot

Firmware Name: autorun_QM152E_000.007.070.000.upg

Product: Philips

Caution:

All the pictures and specification details related to Philips 32PFK5500 in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different based on the visual observations. So, please do not try it at home. If the LED TV is slow then reset it to Factory Default only.

Pros:

There are many advantages to installing the given Philips 32PFK5500 USB software or eMMC backup dump file. A few benefits are described below:

• The dead board can be recovered and operational by loading the given USB software or EMMC backup file
• Remote and Logo may change at your own choice to satisfy the customer
• Money saving instead of changing the mainboard
• Time-saving instead of arranging a new board
• Customer satisfaction to do an urgent job
• Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given Philips 32PFK5500 USB software or backup dump file. But it depends on the technician or user, as per his understanding. A few drawbacks are described below:

• The working board may go to the standby position
• Remote Control may not work and the Logo may change by writing the given software
• Panel screen parameters may be changed

Philips 32PFK5500 Android Version Upgrade:

Please note that the installed version in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.

Philips 32PFK5500 EMMC Backup:

This board has a 4/8GB eMMC chip. you can read the EMMC backup by Pendrive but for writing a backup of EMMC you should jtag the mainboard Philips 32PFK5500 and write by a programming tool. Be careful while writing emmc backup file, if the board is on standby light due to wrong software or incomplete installation then you can do it, otherwise, it is on standby or red light due to hardware fault. So, first trace the fault. In this case, no need to write emmc backup.

Philips 32PFK5500 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download Philips 32PFK5500 Firmware files:

Download Philips 32PFK5500 firmware files and then extract them you will get the folder. Now copy the bin file to USB. For more Details about the download process watch the video Click Here

PHILIPS 32PFK5500 Firmware file for free download;

• Philips-32PFK5500-Firmware.part1
• Philips-32PFK5500-Firmware.part2
