PANASONIC TX-32AS520E Firmware Free Download

PANASONIC TX-32AS520E LED TV

PANASONIC TX-32AS520E is an LED Backlit smart non-android LCD TV. Its Diameter is 81 cm (32″). It is an HD TV with a resolution of 1366×768. Its fluidity is 100Hz processing (BLB). It has a 10W RMS 2.0 Audio System. It has dual Tuner TNT and Cable. It is a Smart TV as Internet Apps and Media Player are built. An Internet browser, Wi-Fi, Network media player, and my Home Cloud system can connect it. It is also called the Narrow Bezel series. It is an A+ Energy class. The standard format for HD TV is HDCP digital input + 16:9 + YUV + 720 lines + 720p/1080i +. It has an MPEG4 HD Tuner.

Download Here

PANASONIC TX-32AS520E aspect (ratio) is 16:9. Its Contrast ratio is High Contrast (dynamic). It is an Anti-glare ” Clear Panel Filter “. Its Video and Image features Additional processing: 100/120Hz BLB, More explanation about motion management technology, progressive scanning in 1 pass, and Noise Reduction. Its Picture Mode (Dynamic / Normal / Cinema / True Cinema / Custom). It is Dolby Digital Plus DTS Compatibility and the Specific audio processing or equipment is V-Audio. It has Audio Mode (Standard / Music / Speech / User).

PANASONIC TX-32AS520E has a dual TV tuner Analog TV tuner:1 NICAM Stereo tuner and a Digital TV tuner:1 integrated digital tuner compatible with MPEG2 and MPEG4 (SD and HD streams ). TNT tuner: TNT Tuner (DVB-T / Digital Terrestrial Tuner). Cable Tuner: Cable Demodulator (DVB-C / Digital Tuner for Cable Reception). Main sources are Ethernet network (wired) • Wi-Fi network (wireless) • USB port • Cloud (via Internet) and for video Entries: HDMI (x2) • Scart (x1) • YUV + Composite mixed (x1) Version: HDMI v.1.4, Compatibility of one or more digital inputs:
HDCP, ARC, CEC.

PANASONIC TX-32AS520E General Information:

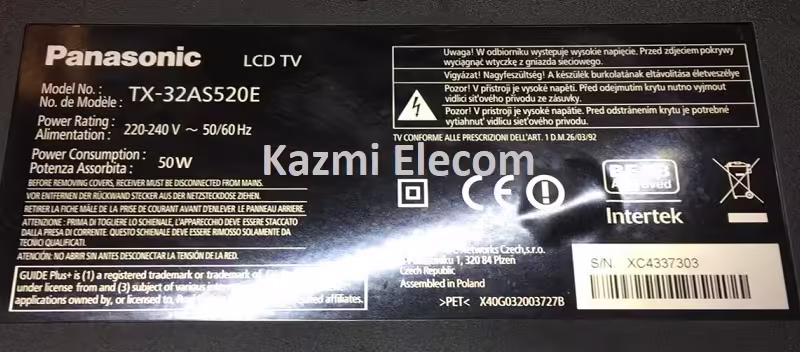

Model: TX-32AS520E

Series: AS520

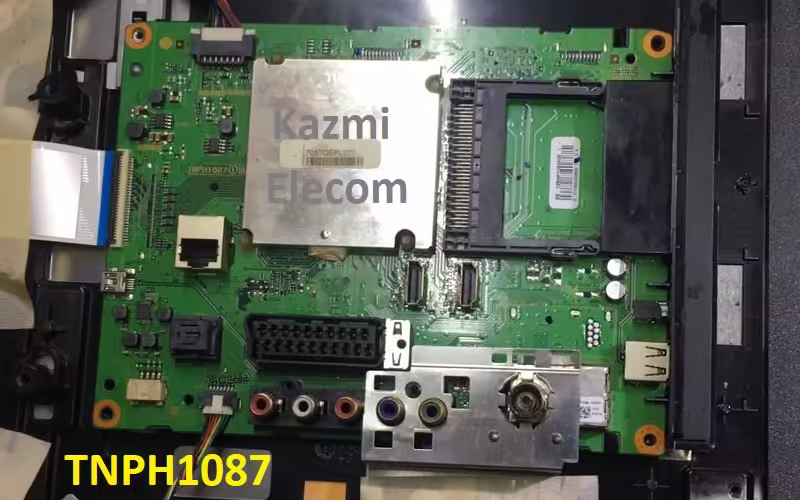

Board: TNPH1087

Panel: LC320DXE-SFR1 (TPT315B5) Panel Overview

T-CON: 6870C-0442B

Resolution: 1366×768

Audio Power: 2x8W (8 ohm)

Backlight Current: mA

Backlight Power:

USB Ports: 1

HDMI Ports: 2

Scart: 1

RJ45: Yes

Analog Tuner: PAL, SECAM

Digital Tuner: DVB-T/T2/C/S/S2 (MPEG4 +HEVC)

Wifi: Yes

Mira-Cast: No

Satellite Input: No

RAM: 256MB

Memory: NAND Flash

Nand Flash: MT29F4G08ABAEA@TSOP48

Power Rating: 220V~240V 50Hz

Power Consumption: 50Watt Max.

Firmware: NA

Firmware Type: Nand Backup Dump

Product User: PANASONIC

PANASONIC TX-32AS520E Technical Specifications:

Diagonal: 81 cm (32″)
HD TV (HD TV): 1366 x 768
Fluidity: 100Hz processing (BLB)
Audio System: 10W RMS 2.0
Tuner: TNT • Cable
Smart TV: Internet Apps • Media Player
Connected TV: Internet browser • Wi-Fi • Network media player • My Home Cloud
Series / Design: Narrow Bezel
Energy class: A+
Format / Standard: HD TV : HDCP digital input + 16:9 + YUV + 720 lines + 720p/1080i + MPEG4 HD Tuner
Slab: TFT
Backlight: LED (LCD LED)
Aspect (ratio):16:9
Diagonal:81 cm (32″)
Definition :1366 x 768
Contrast ratio: High Contrast (dynamic)
Surface treatments: Anti-glare ” Clear Panel Filter “
Video / Images: Picture Mode (Dynamic / Normal / Cinema / True Cinema / Custom)
Audio: Distribution: 2 x 5 Watt RMS Dolby Compatibility: Dolby Digital Plus DTS Compatibility: DTS Specific audio processing or equipment: V-Audio Speakers: Full Range x 2
Audio Mode: Standard / Music / Speech / User
Analog TV tuner: 1 NICAM Stereo tuner
Digital TV tuner: 1 integrated digital tuner compatible with MPEG2 and MPEG4 (SD and HD streams )
TNT tuner: TNT Tuner (DVB-T / Digital Terrestrial Tuner)
Cable Tuner: Cable Demodulator (DVB-C / Digital Tuner for Cable Reception)
TV Guide: Yes
Teletext: Yes (1000 pages)
Sources: Ethernet network (wired) • Wi-Fi network (wireless) • USB port • Cloud (via Internet)
Video Entries: HDMI (x2) • Scart (x1) • YUV + Composite mixed (x1) Version: HDMI v.1.4
Audio Inputs: RCA Stereo (x1)
Other entries: TV antenna (x1)
Audio Outputs: Stereo Headphones (x1) • Digital Optical (x1)
Integrated card reader: PCMCIA, CI+ compatible
USB Connections: USB 2.0 (Type A)
Inputs / Outputs: Network / Communication: Ethernet (wired network), Wi-Fi (wireless network) 802.11 a/b/g/n compatible

How to Write Nand Flash Backup:

Download the given PANASONIC TX-32AS520E Nand Flash backup shared in this post below
Remove the Nand Flash Memory from the board
First, save the backup with the Programming Tool
Write the Nand Flash data with a programmer
Resold it back. Done.

Note: The following PANASONIC TX-32AS520E firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
