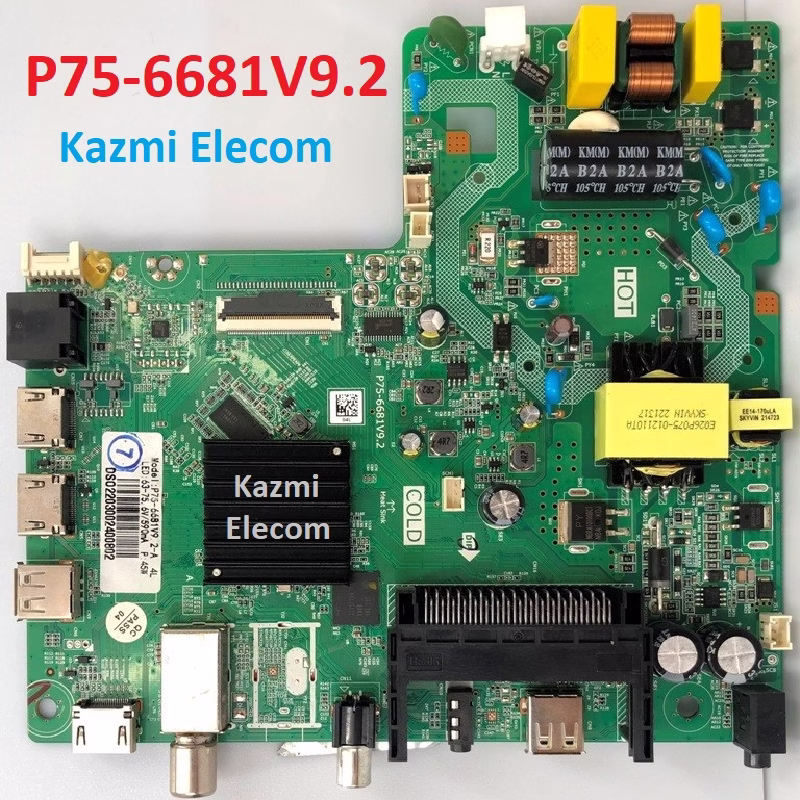

P75-6681V9.2 Smart Android Board
P75-6681V9.2 is a smart Android network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 39″ to 55″ screens. It has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide-Screen. P75-6681 V9.2 Smart Board has multiple ports such as RCA, USB interface Ports, and many HDMI ports as well but without a VGA interface while CI+ and Headphones are available. P75_6681_V9.2 has a LAN/RJ45 Ethernet Connector interface port also for the wired/cable internet network.
P75 6681 V9.2 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of the P75-6681-V9.2 Android board are very good and the Response rate is very efficient. P75.6681.V9.2 China smart network board has an Android 12 version. P75-6681V9.2 has 8GB storage EMMc Nand Flash memory.
P75-6681V9.2 General Information:
Board Model: P75-6681V9.2

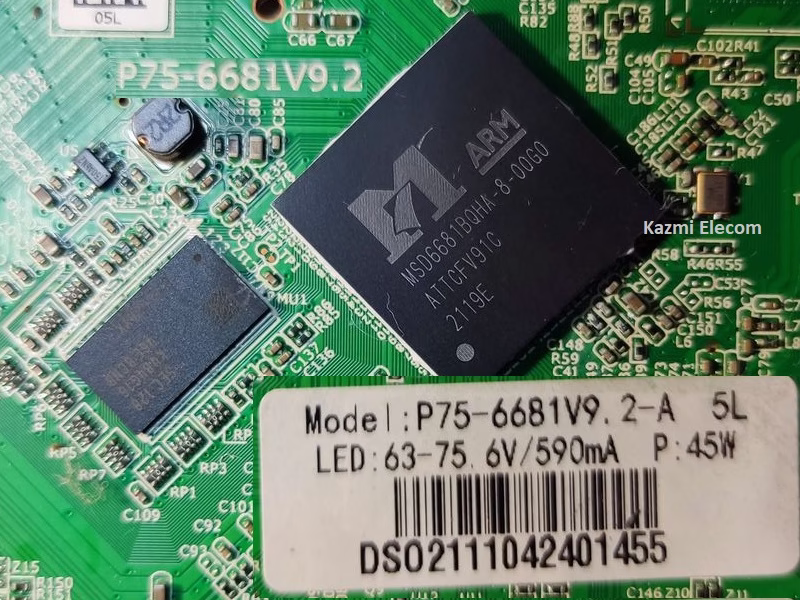

Main Chipset: MSD6681BQHA-8-00G0
CPU: Quad-Core (A53*4)
GPU: Mali-450
Android Version: Android 9.0
Resolution: 1920×1080
Audio Power: 2x10W (20 watt 8 ohm)
Backlight Volt: 63-75.6 Volt
Backlight Current: 590 mA
Backlight Power: 45 watt
USB Ports: 2
HDMI Ports: 3
CI: Yes
Component: Yes
RJ45: Yes
Tuner: ATV
Wifi: Yes
Mira-Cast: Yes
Bluetooth: NA
Memory (RAM): 1 GB DRAM
Storage (ROM): 8 GB EMMC Flash (KLM8G1GETF-B041)
Power Rating: AC220 V
Power Consumption: 105Watt
Firmware Name: MTK6681P.bin
Firmware Type: EMMC Backup Dump and USB bootable
Product User: ECON, HARPER, THOMSON
P75-6681V9.2 Technical Specifications:
- Resolution FHD 1920×1080 1080P
- HD support HD
- LED backlight DLEDD
- Response time 8 ms
- Display scale 16:09
- Stereo sound there is / there is
- Matrix type LED
- Refresh rate 60 Hz
- Processor frame 64-bit ARM Cortex-A53 Quad-Core
- GPU Mali-450 MP3
- OS version 9.0 Android
- RAM (DRAM) 1GB
- ROM (Flash) 8GB
- WIFI 2.4GHz / 5GHz
- HDMI 2.0 (HDCP 2.2) 2
- HDMI CEC (T-link) Full
- Caption (Subtitle) Yes
- Game mode Yes
- Bluetooth SBC / 4.2
- Sleep Timer Yes
- HDMI quick switch Yes
- DLNA 1.5 Yes
- USB HID support Yes
- USB channel list clone Yes
- USB 2.0 2
- Teletext there is
- ATV PAL/NTSC
- Sound power 10w+10w
- Acoustic system Buffer speakers
- DOLBY DIGITAL there is
- Supported formats MP3, WMA, MPEG4, MKV, JPEG
- Built-in Receiver No
- Bluetooth NA
- Social Yes (YouTube, Netflix)
- Processor Quad Core
- Smart Apps Netflix, YouTube
- SmartTV
How to Write P75-6681V9.2 EMMC Backup:
- Download the given P75-6681V9.2 EMMC backup is shared in this post below
- Note the EMMC Pinouts (D0, CMD, CLK)
- Jtag the mainboard with the Programming Tool
- Write the EMMC data
- Done.
Note: The following P75-6681V9.2 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
