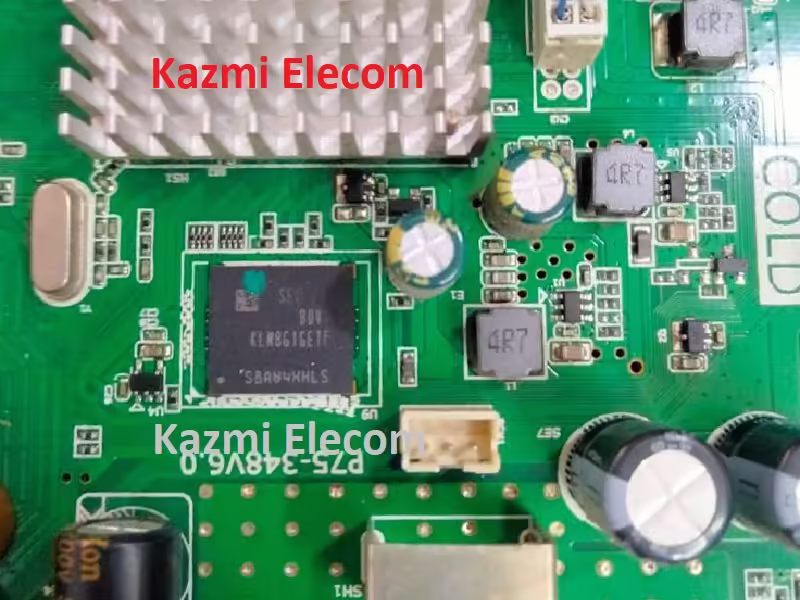

P75-348V6.0 Android Smart Board
P75-348V6.0 is a high-speed network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 32″ to 49″ screens. has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART feature. P75-348-V6.0 Smart Board has multiple ports as per the current requirements of the users such as triple HDMI input interface, Dual USB interface Ports, RCA input, VGA connectivity for laptops and computers, and Headphones.
P75_348_V6.0 has a LAN/RJ45 Ethernet Connector interface port also for the wired/cable internet network. P75 348V6.0 is a Combo high-speed Network triple-play motherboard with a built-in ATV, Backlight Driver Board, and Power Supply Module. The Video and Sound quality of the P75-348-V6.0 Android board are excellent and the Response rate is very efficient. P75.348.V6.0 China smart network board has an Android 6.0 version.
General Specifications & Features:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: P75-348V6.0
Main Chipset: MSD6A348
OSD Language: Chinese, English
Interface: Single/Dual LVDS
VIDEO INPUT: ATV&DTV
Analog TV Signal Reception: PAL/NTSC/SECAM) (PAL /SECAM
Digital TV Signal Reception: DVB-T/T2/C/S2 ATSC ISDB DMBT
Cable/Arial port: 1
HDMI/Audio port: 3
Component Video Port (YPbPr/YCbCr): 1
Composite video port: 1
Audio port (LR): 1
PC port (D-sub): 1
Computer audio port (mini port): 1
Headphone port: 1
USB port: 2
SPDIF port: 1
Ethernet (LAN) port: Yes
Operating System: Android 6.0
CPU: 4 Core A7
CPU Frequency: 1.2 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 1 Gb
Rom: 8Gb eMMC
Audio Output: 2x8w
Resolution: up to 1920×1080 (32” to 65″)
Panel Power: 12V
Power Input: 110-240V AC
Product: Universal
Remote: Onida
Firmware Name:
Firmware Type: EMMC Backup
P75-348V6.0 Android Version Upgrade:
Please note that the installed version Android 6.0 in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.
P75-348V6.0 EMMC Backup:
This board has an 8GB eMMC chip. You can read the EMMC backup by Pendrive but for writing a backup of EMMC you should jtag the mainboard P75-348V6.0 and write by a programming tool. Be careful while writing emmc backup file, if the board is on standby light due to wrong software or incomplete installation then you can do it, otherwise, it is on standby or red light due to hardware fault. So, first trace the fault. In this case, no need to write emmc backup.
P75-348V6.0 Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is a backup file read from the EMMC chip. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
