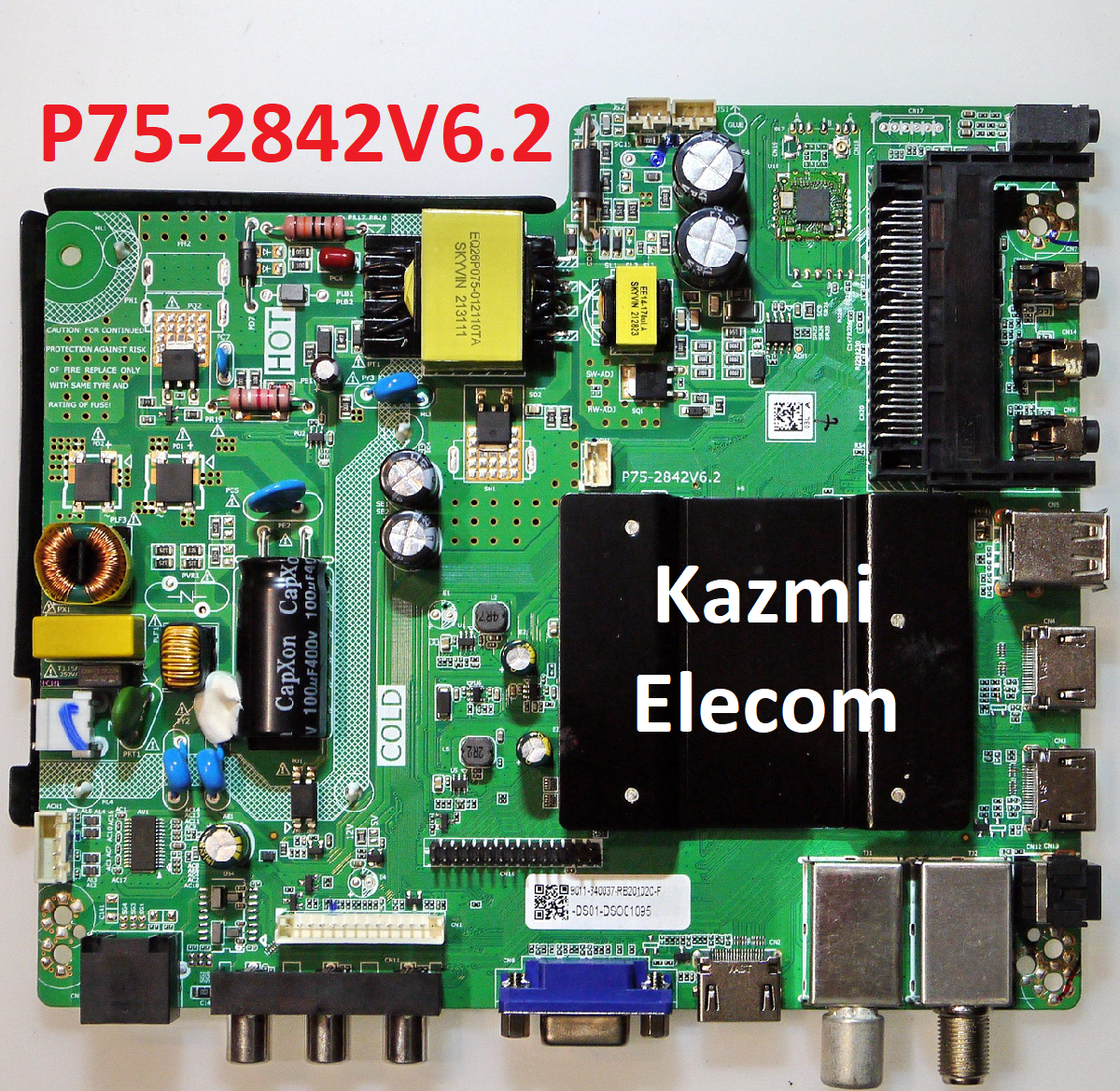

P75-2842V6.2 Smart Android Board
P75-2842V6.2 is a high-speed smart network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 43″ to 55″ screens. It has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART feature. P75-2842 V6.2 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA, Scart, and Headphones. P75_2842_V6.2 also has a LAN/RJ45 Ethernet Connector interface port for the wired/cable internet network.
P75 2842 V6.2 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of the P75-2842-V6.2 Android board are very good and the Response rate is very efficient. P75.2842.V6.2 China smart network board has an Android 9. x version. P75-2842V6.2 board bifurcated into two types according to its configuration that is given in the picture below.
Specifications & Features:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: P75-2842V6.2
Main Chipset: RTD2851SSA
Interface: Single/Dual LVDS
TV System: DVB-T/T2/S/S2/C
Operating System: Android 9.0
Ram: 1Gb
Rom: 8Gb eMMC
Backlight: 72 to 79 V 560 mA
Audio Output: 2x8w (8 Ω)
Resolution: up to 1920×1080 (43” to 55″)
Panel Power: 12V
Power Input: 100-240V AC
Service Menu Code: Source/Input 2008, Menu 1201
Firmware Name: install_2842.img
Firmware Type: USB Bootable
Service Code:
Menu+2008
Note: The following given Software/Firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of installing/downloading the firmware/software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
P75-2842V6.2 firmware for free download:
