P75-2841V6.0 Firmware

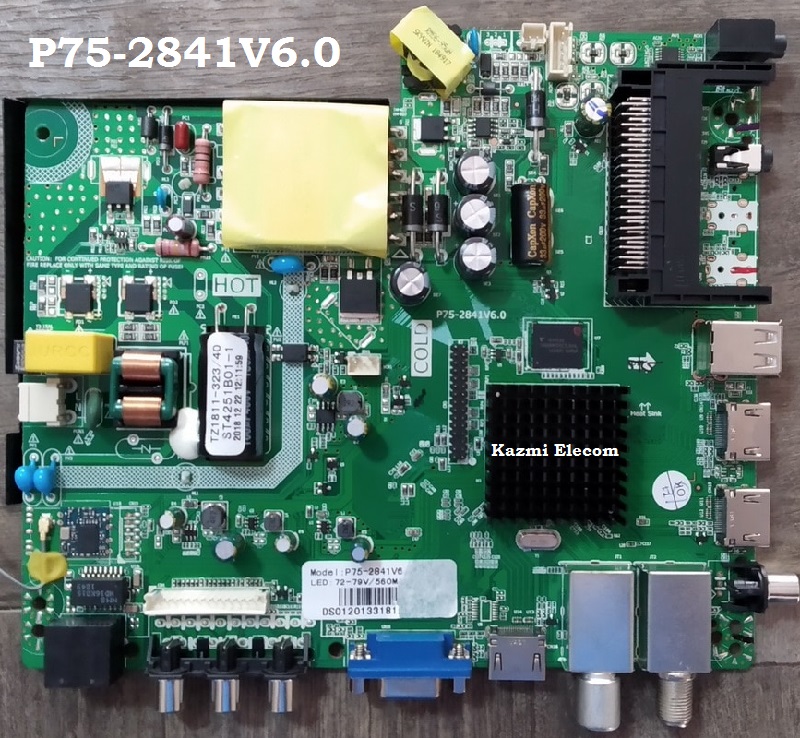

P75-2841V6.0 is a high-speed smart network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 43″ to 55″ screens. It has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART feature. P75-2841 V6.0 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA, Scart and Headphones also. P75_2841_V6.0 has a LAN/RJ45 Ethernet Connector interface port also for the wired/cable internet network.
P75 2841 V6.0 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of the P75-2841-V6.0 android board are very good and the Response rate is very efficient. P75.2841.V6.0 china smart network board has an android 7. x version. P75-2841V6.0 board bifurcated into two types according to its configuration that is given in the picture below.
Specifications & Features:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: P75-2841V6.0
Main Chipset: RTD2841PSA
Interface: Single/Dual LVDS
TV System: DVB-T/T2/S/S2/C
Operating System: Android 7.x
Ram: 1Gb
Rom: 4Gb/8Gb eMMC
Backlight: 72 to 79 V 560 mA
Audio Output: 2x8w (8 Ω)
Resolution: up to 1920×1080 (43” to 55″)
Panel Power: 12V
Power Input: 100-240V AC
Service Menu Code: Source/Input 2008, Menu 1201
Note: The following given Software/Firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of installing/downloading the firmware/software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more detail about the download process watch the video Click Here
P75-2841V6.0 firmware for free download:
- P75.2841V6.0-1920×1080-Grunkel-40-USB.part1
- P75.2841V6.0-1920×1080-Grunkel-40-USB.part2
- P75.2841V6.0-1366×768-AKAI AKTV3225-USB.part1
- P75.2841V6.0-1366×768-AKAI AKTV3225-USB.part2
- P75.2841V6.0-1920×1080-DREAMSAT DS40S1-USB.part1
- P75.2841V6.0-1920×1080-DREAMSAT DS40S1-USB.part2
- P75.2841V6.0-1920×1080-Revolution Galaxy-USB.part1
- P75.2841V6.0-1920×1080-Revolution Galaxy-USB.part2
Hello there
I am trying to get the P75-2841v6.0 for STAR-X 43″ TV. I flashed Revolution Galaxy in my STAR-X now it’s upside down. I cant seem to find the right STAR-X software, kindly assist.
Thanks in advance
check in service menu for the Mirror/Flip option
As said i flashed the “Revolution Galaxy” software and my TV is “STAR-X”.. My remote doesn’t work, even when i click i only see a green light on the TV indicating i am doin something but it doesn’t work. Now i am still stuck at setup, cant even get to that Service Menu because of the remote. If u could help me revert back to STAR-X please… Any STAR-X software please or any other way i can get the tv booted up as normal
Its a STAR-X 43″ Android TV bro
Yes, it is… I am looking for a STAR-X software. For the model
Please make effort for starX
Thanks so much, Kazmi i flashed the Dreamsat in my Star X 43″, it worked like a charm. Its like a restored the prev ROM the difference being the boot logo. Thanks again
How did you install it onto the TV, I have downloaded and extracted the file but when I put the flash Into the TV nothing happens
https://www.kazmielecom.tech/how-to-load-firmware/
Hello
Thanks for firmware file .
I Change panel setting ( Timode ) on secret menu picture is good when back and relace cable don’t save character . Picture again is bad . Please help .
Why data dont save
My tv star x 43 lf670v
Hi, any firmware for Schnaider FHD 43″ Android tv? Tried the Dreamsat and Grunkel (tv boots) but the remote control doesnt work and cannot pass the setup wizard. Its infrared original remote with no keyboard just one side buttons. The full model is 43SL44.
use a universal remote control
I tought for some remote codes to be implemented or original firmware, but… Well if that is the only solution i will try.
What are the files to be changed in the firmware for the remote control. Anyone knows?
Can you fix or give new (preferably Mega) link for the galaxy firmware it says file not found. The first is fine but if no waiting to start download it will be nice.
now server upgraded. try again
Hi master
i have a problem with this mainboard, when entering service menu and changing lvds mode bit to 6 when restarting the board doesn’t hold data, why?
Hi, did you find any solution about this ?
Hi.
It cant enter flash mode with the buttons + and Power on the screen, only power works
Or the button minus i think
corrupt file damaged archive. how can i resolve? let me know please
try with 7zip
Hello
I have a Fuego tv model: 32el610andt with main board
P75-2841v6.0-a that is stuck on
logo and I cant be flashed with files below.
Do you have dhe EMMC file for this board please?
NA
Hi ser.
P75-2841V6.0_1366x768 all links are not working error Couldn’t generate direct link
links updated
Hi ser.
can you pls tell us how updrade P75-2841V6.0_1366X768
I mean wich file must put inside usb key?
Too many file conffieused wich one or all folder must copy to usb kek?
extract any part the transfer files to usb
HELLO. I FLASHED SW. ALL OK, BUT MIRROR PROBLEM. I DO SERVICE MENU ,BUT WHEN TV OFF AND THEN ON THE MIRROR IS NOT SAVED. HERE”S THE WAY TO SAVE. THANKS.
check if there is any save option. or change mirror mode then press menu key then exit
thanks
Hi i cant find the password
password not set
Hi TV Zimmer ZM-TVSF4335. Panel CX430DLEDM
need firmware for fuego 43el610andt main board;p75-2841v6.0
not available for Fuego. First try to reset
https://www.kazmielecom.tech/how-to-reset-smart-tv/
MERCI
excuse me sir, can you tell me the Ci plus name in order to update it through service menu?
Problem: while viewing DVB-C i get error: “CI card failed to read”
Yar mirror karny k bad data save kasy hona he
Hi Sir
I transferred the file p75-2841v6.0_1366x768_AKAI, but the rtk2841 file is in .tar to install it on the TV I need it to be in .img
Thanks
extract it
P752841HV6.0
bom dia actualizei software galaxy num tv silver com esta placa ficou com imagem invertida e bits alterados fui ao menu serviço faço os ajuste mas quando desligo o tv da corrente a imagem fica novamente invertida se ficar em stand by fica tudo certo pode me dizwer com memorizo os ajuste no menu de serviço obrigado
hi ihave f43f1fbs cx430dledm panel and i used ure img but no more image help
if board is ON then maybe panel mismatch. try another
Salve sign ho una tv bea 40 pollici fhd modello ba-4020s dove posso trovare il firmware grz di cuore
search by board number
I have a skyview tv model le40z1s 40inch
Mb:p75-2841v6.0 Panel cx390dledm I have tried these firmwares here but the display after install is broken not a full screen display at all. Where can I get the firmware for this tv?
not available for this brand/mode. search google
