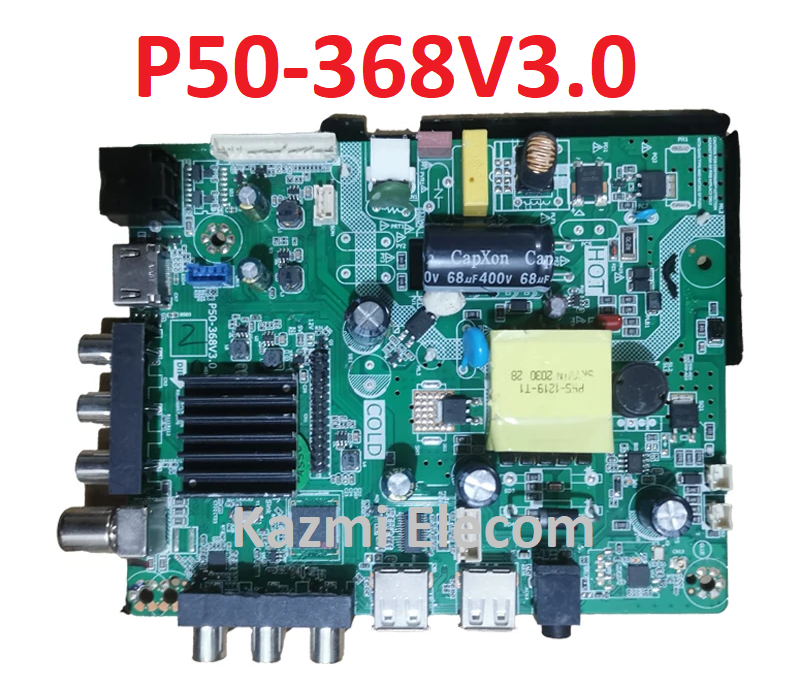

P50-368V3.0 Smart Android Board
P50-368V3.0 is a high-speed network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 26″ to 37″ screens. has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART feature. P50-368-V3.0 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and Headphones.
P50_368_V3.0 has a LAN/RJ45 Ethernet Connector interface port for the wired/cable internet network. P50 368V3.0 is a Combo high-speed Network triple-play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of the P50-368-V3.0 Android board are very good and the Response rate is very efficient. P50.368.V3.0 China smart network board has an Android 9.0 version.
Specifications & Features:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: P50-368V3.0
Main Chipset: MT9255
OSD Language: Chinese, English
Interface: Single/Dual LVDS
VIDEO INPUT: ATV&DTV
Analog TV Signal Reception: PAL/NTSC/SECAM) (PAL /SECAM
Digital TV Signal Reception: DVB-T/T2/C/S2 ATSC ISDB DMBT
Cable/Arial port: 1
HDMI/Audio port: 1
Component Video Port (YPbPr/YCbCr): 1
Composite video port: 1
Audio port (LR): 1
PC port (D-sub): 1
Computer audio port (mini port): 1
Headphone port: 1
USB port: 2
SPDIF port: 1
Ethernet (LAN) port: Yes
Operating System: Android 9.0
CPU: Quad Core A7
CPU Frequency: 1.2 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 512MB/ 1 Gb
Rom: 4/8Gb eMMC
Audio Output: 2x8w
Resolution: up to 1920×1080 (26” to 37″)
Panel Power: 5/12V
Power Input: 110-240V AC
Product: Universal
Remote:
Firmware Name: MTK368P.bin
Firmware Type: USB Upgradeable
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download P50-368V3.0 Firmware Files:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
P50-368V3.0 firmware for free download:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
