P40-X9 V3.0-A Software Free Download

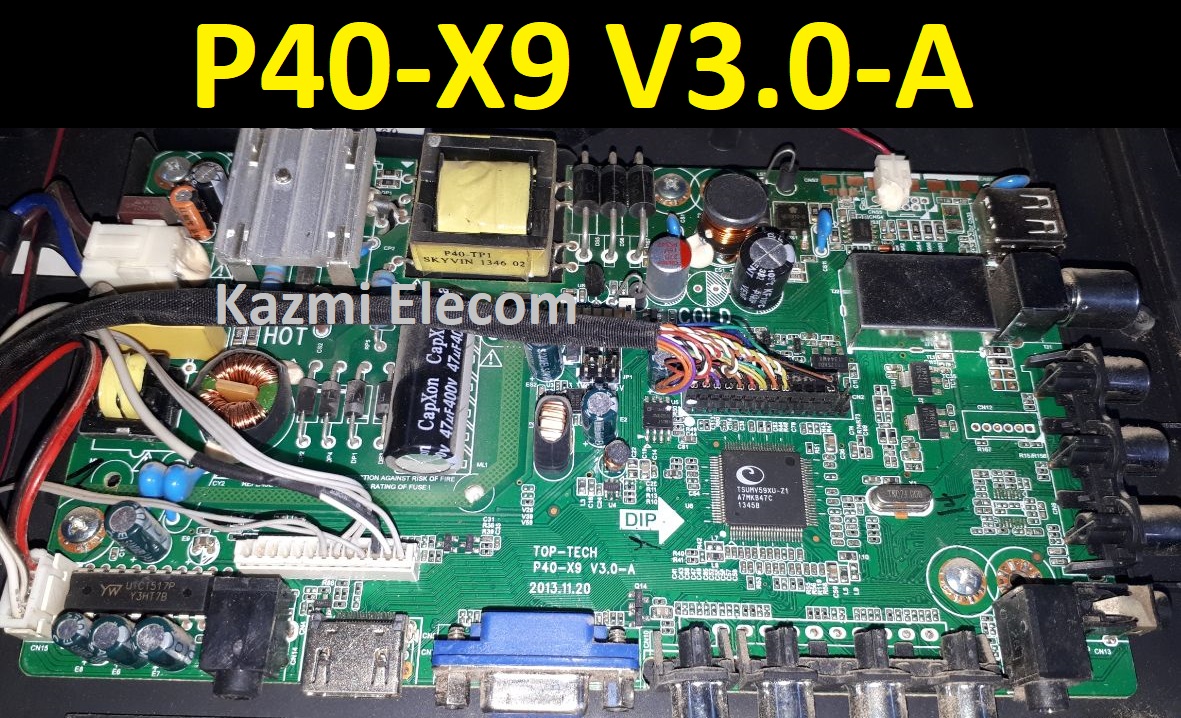

P40-X9 V3.0-A LED TV Board

P40-X9 V3.0-A is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart (Optional).

Its USB interface can be used to update software/firmware and for playing multimedia files as well. It can also support Earphone output. P40-X9 V3.0-A is a Full HD-supported LCD LED TV controller board with a maximum resolution of 1920×1080. It can support 24 to 32-inch HD and FHD panel screens. The main processor is made by Mstar and its graphics are also good. P40-X9 V3.0-A firmware files are given below for the technician’s support.

General Specifications:

Brand/Mark: Universal Board

Model: TOP-TECH P40-X9 V3.0-A

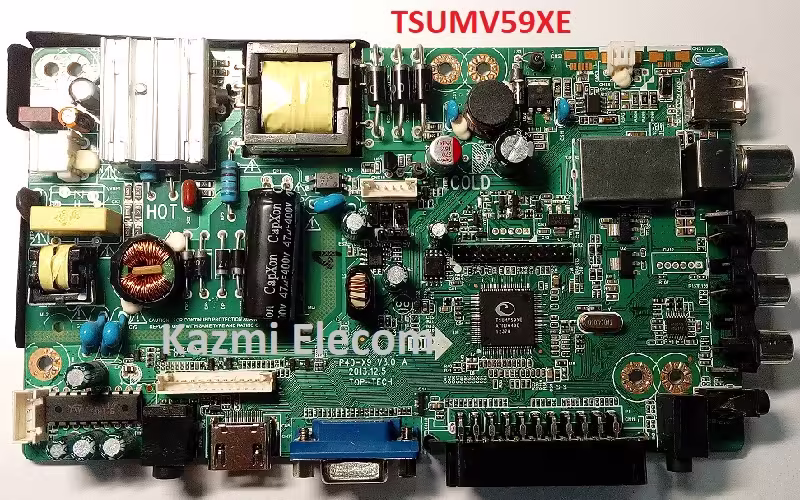

Main Chip: TSUMV59XU-Z1/TSUMV59XE

Product: LED TV

LED Backlight: mA

Flash IC: 4 Mb

Sound Chip: 1517P

Tuner IC: NA

Screen supported: 24-32 inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 220V AC

Firmware Name:

Firmware Type:

Service Code:

Source/Input 2580 or Menu 1147

Caution:

All the pictures and specification details related to P40-X9 V3.0-A in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

Pros:

There are many advantages to installing the given P40-X9 V3.0-A USB software or backup dump file. A few benefits are described below:

• The dead board can be recovered and operational by loading the given software backup file
• Remote and Logo may change at your own choice to satisfy the customer
• Money saving instead of changing the mainboard
• Time-saving instead of arranging a new board
• Customer satisfaction to do an urgent job
• Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given P40-X9 V3.0-A USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:

• The working board may go to the standby position
• Remote Control may not work and the Logo may change by writing the given software
• Panel screen parameters may be changed

P40-X9 V3.0-A Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software malfunctions due to some bugs then the manufacturer will provide the software update to fix the bugs. Otherwise, no version update is issued.

P40-X9 V3.0-A Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download your required resolution firmware or brand name software and then extract it, you will get the folder. Now copy the files to USB or write the SPI flash with a programmer. For more Details about the download process watch the video Click Here

P40-X9 V3.0-A firmware for free download:

• P40-X9-V3.0-A SANKEY-22-DUMP
• P40-X9-V3.0-A SATURN-24-DUMP
• P40-X9-V3.0-A SYMPHONY-22-DUMP
• P40-X9-V3.0-A SYMPHONY-24-DUMP
