P150-2851AV8.1 Software Free Download

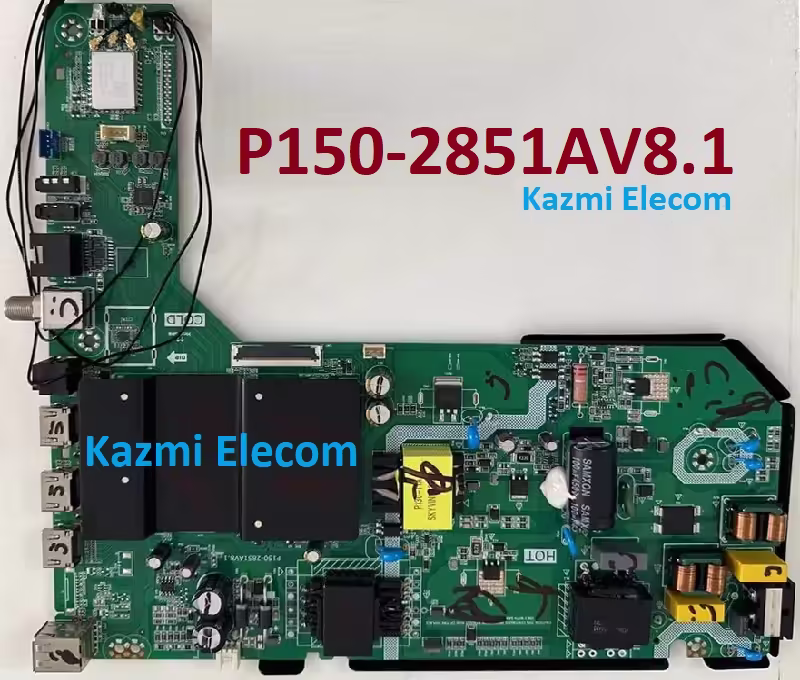

P150-2851AV8.1 UHD Smart Board

P150-2851AV8.1 is a digital smart UHD LED TV controller driver board. It supports resolutions up to 3840×2160 4K Ultra High Definition 2160 Pixels and is HDR10 supported. This is a Combo three-in-one network Android smart board. The main input power supply module, Sound Card circuit, Cable TV tuner, and LED backlight inverter circuit module are built into a single piece of printed circuit board (PCB). The ROM storage capacity is 16GB (EMMC Nand Flash ) which is enough for the user to install TV applications.

P150-2851AV8.1 is a universal smart motherboard that has all the necessary input and output ports for the user. It has 1 cable TV port for the antenna, 1 for SPDIF sound, 1 for network connection (LAN), and 2 USB 2.0 ports for connecting external storage, playing multimedia, and software upgrades. It has 3 HDMI ports (one of them supports ARC) by which users can connect digital devices such as Blu-ray media players, gaming consoles, PlayStations, STBs, etc. It has a headphones port and 1 for the AV input.

P150-2851AV8.1 General Information:

Board Model: P150-2851AV8.1

Main Chipset:

CPU: Quad-Core ARM Cortex-A53 64-bit

GPU: Mali-450 MP3

Android Version: Android

Resolution: 3840×2160

Audio Power: 2x10W (20 watt 8 ohm)

Backlight Volt: 90-102V

Backlight Current: 570mA

Backlight Power: 180W2

USB Ports: 2

HDMI Ports: 3

CI: No

Component: Yes

RJ45: Yes

Digital Tuner: ISDB-T

Wifi: Yes

Mira-Cast: Yes

Memory (RAM): 1.5/2GB DRAM

Storage (ROM): 16 GB EMMC Flash

Power Rating: 100V~240V 50Hz

Power Consumption: 105Watt

Firmware Name:

Firmware Type: EMMC Backup Dump

Product User: TELSTAR

P150-2851AV8.1 Technical Specifications:

• Resolution 4K UHD 2160P 3840×2160
• HD support HD
• LED backlight DLEDD
• Response time 8 ms
• Display scale 16:09
• Stereo sound there is / there is
• Matrix type LED
• Refresh rate 60 Hz
• Processor frame 64-bit ARM Cortex-A53 Quad-Core
• GPU Mali-450 MP3
• OS version Android
• RAM (DRAM) 1.5/2GB
• ROM (Flash) 16GB
• WIFI 2.4GHz / 5GHz
• HDMI 2.0 (HDCP 2.2) 2
• HDMI CEC (T-link) Full
• Caption (Subtitle) Yes
• Game mode Yes
• Bluetooth SBC / 4.2
• Sleep Timer Yes
• HDMI quick switch Yes
• DLNA 1.5 Yes
• USB HID support Yes
• USB channel list clone Yes
• USB 2.0 2
• Teletext there is
• ATV PAL/NTSC
• Sound power 10w+10w
• Acoustic system Buffer speakers
• DOLBY DIGITAL there is
• Supported formats MP3, WMA, MPEG4, MKV, JPEG
• Remote control
• Social Yes
• Web browser Yes
• Processor Quad Core
• Smart Home TCL Home, Google Home
• WiFi sharing Chromecast & T-cast
• AI Google Assistant Google Assistant Ready
• SmartTV AndroidTV

How to Write P150-2851AV8.1 EMMC Backup:

1. Download the given P150-2851AV8.1 EMMC backup is shared in this post below
2. Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
3. Jtag the mainboard with the Programming Tool
4. Write the EMMC data
5. Done.

Note: The following P150-2851AV8.1 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

P150-2851AV8.1 Firmware files for free download:

• P150-2851AV8.1-16G-TELSTAR-50-EMMC.part1
• P150-2851AV8.1-16G-TELSTAR-50-EMMC.part2
