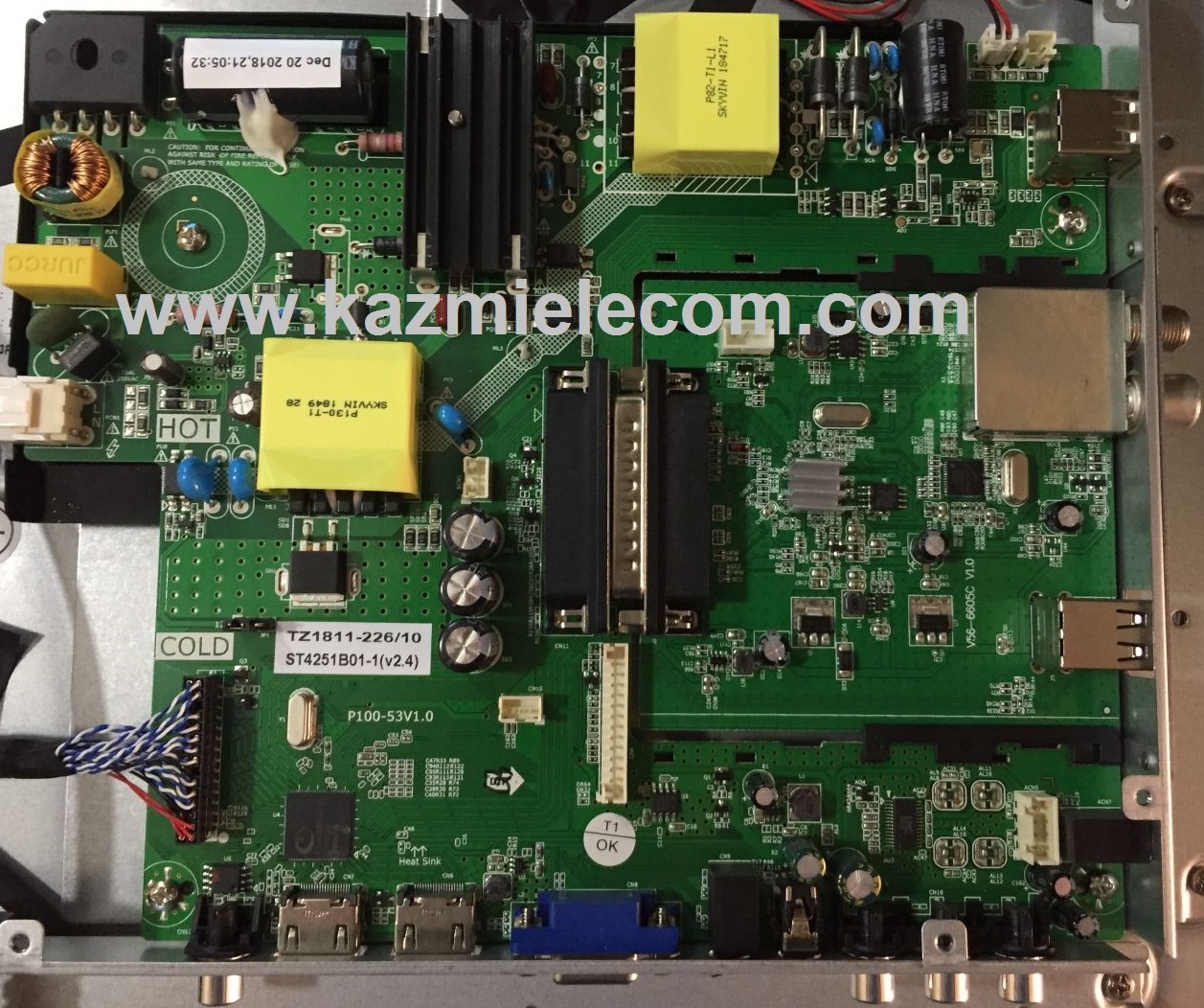

P100-53V1.0 LED TV Board
P100-53V1.0 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 40-inch to 65-Inches LED panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. P100.53V1.0 has multiple HDMI ports that support 1.4 and its HDCP support 1.1. P100_53V1.0 is compatible with Non-HD and FHD LCD/LED panel screens.
P100 463GUV6.0 is widescreen-supported and also has a multi-language option. P100_53V1.0 has its special feature of Dual AV extendable.P100-53V1.0 software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: P100-53V1.0
Main Chipset: TSUMV53
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
Backlight Volt: 72-79V
Backlight Current: 560 mA
Backlight Power: 45W
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
P100-53V1.0 Firmware Collection Free Download:
For video tutorials, visit “Kazmi Elecom” my youtube channel.
Unfortunately, Launcher has Stopped. Smart Android LED TV Software Issue
hi there, i have a redline led tv ps40 wich have the p100-53v1 board in it and android stuck on boot logo, any dump of firmware update please ? and how to, i try the dump but can not locate the ic chip to dump it in, don`t have ML25 chip in the board
i think this one is not android. If SPI flash available on board then read and save the backup first then write it.
