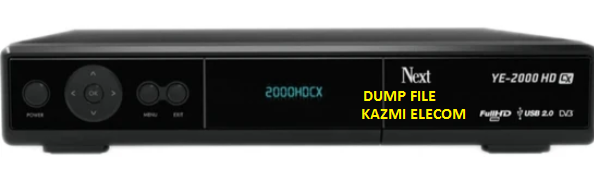

NEXT YE-2000 HDCX Satellite Receiver
NEXT YE-2000 HDCX is a Full HD 1920×1080 digital satellite receiver. It can support Dvb-S2 / Mpeg2 / Mpeg4 H.264 / Avc, Full Compatibility. It Has a 20,000 Channel Memory Capacity. It Has a Dual-Core Main Processor, 16Mb Flash Memory, and 256Mb Ddr RAM. It Has HD, SD Channel, and Media Content Display. It has a 32-bit HD-quality User Interface. It can display 3D Broadcasts as well as 2D broadcasts. It Has Teletext Subtitle Multifeed Support. It Has SAT-IP support. It has recording and timeshift functions for TV channels via a USB device. It plays video and Music Files in Different Formats and picture Slide Shows.

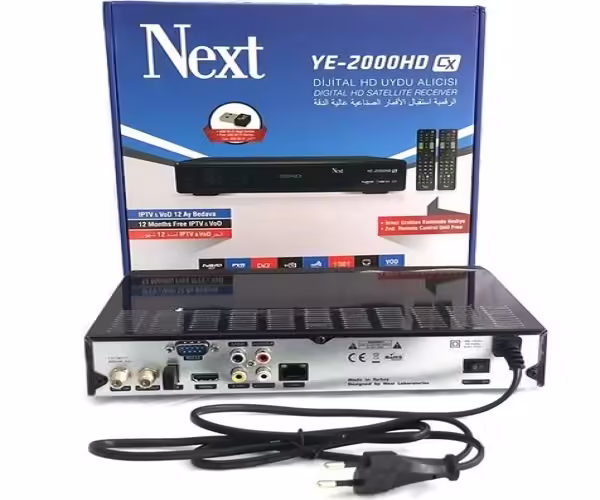

NEXT YE-2000 HDCX has a 260mm Front Panel and an 8-digit Vfd Display. It Has HDMI Output, Analog Output (3xrca.It Hascvbs, L, R Stereo Audio). It Has an Optical SPDIF Digital Audio Output. It Has a Smart Card Reader (Ca). It Has a Tuner Loop Output. It Has an RJ45 10M/100M Ethernet Interface. It Has Dual USB 2.0 Input with USB Wi. It HasFi (MT7601) Device and USB HDD Usage at the Same Time. It Has 3G USB Modem Support. It Has IPTV and Video On Demand (VOD) Support. It Has Software Update Support Via a USB Device, RS232 Port, and Network. Operating Voltage of this box is 100Vac~240Vac 50Hz/60Hz.
Information and Specifications:
Manufacturer: NEXT
Box Model: YE-2000HD CX
Main Board:
Main Controller or Chipset: ALI
Box Type: Digital Full HD 1080P
Flash Type: SPI SOP8/SOIC8
Flash Size: 16 Mb
Software Type: Backup Dump
Software Size: Mb
Download File Format: ZIP
Download Type: Free
Attention:
All the pictures and specification details related to the NEXT YE-2000 HDCX receiver in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without installing the Flash Dump File. Sometimes, the fault is different based on the visual observations. So, please do not try it at home.
NEXT YE-2000 HDCX Receiver Version Upgrade:
Please note that the installed version in this board is the final version to operate the receiver normally. Mostly the manufacturer releases updates to fix the bugs in the previous version or adds some new features and applications for customer satisfaction and smooth working of the receiver. So, keep in mind to always save the backup of channels and TPs first. Keep the receiver connected with UPS while updating the new software version. Always follow the given instructions while upgrading to avoid any issues:
- First of all, choose the appropriate version of the matching software upgrade
- Connect the receiver or STB box with an Uninterrupted Power Supply
- Save the backup of the flash file first to use it later if necessary
- Keep the customized channel data
- Get all the TPs or satellite list backup data
Pros:
There are many advantages to installing the given NEXT YE-2000 HDCX receiver USB software or flash dump file. A few benefits are described below:
- The dead receiver can be recovered and operational by loading the given Flash Dump File
- STB Remote and Logo may change at your own choice
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- The customer satisfaction to do an urgent job by installing the flash file
Cons:
There may be some disadvantages to installing the given NEXT YE-2000 HDCX receiver USB software or flash dump file. A few drawbacks are described below:
- The working receiver may go to the standby position or dead
- The Original Remote Control may not work and the Logo may change by writing the given Flash File
- All the channel data and TPs data may washed
Note:
Below given the NEXT YE-2000 HDCX receiver software is a backup dump file and can be loaded with a Programming tool or with a Loader tool in the dead receiver or can be upgraded SPI Flsh Memory or downgraded to the older version in the normally working satellite receiver with the USB Upgrade procedure or by the RS232 Upgrade Tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the software. Always keep a backup before loading the USB software or writing SPI flash memory.
